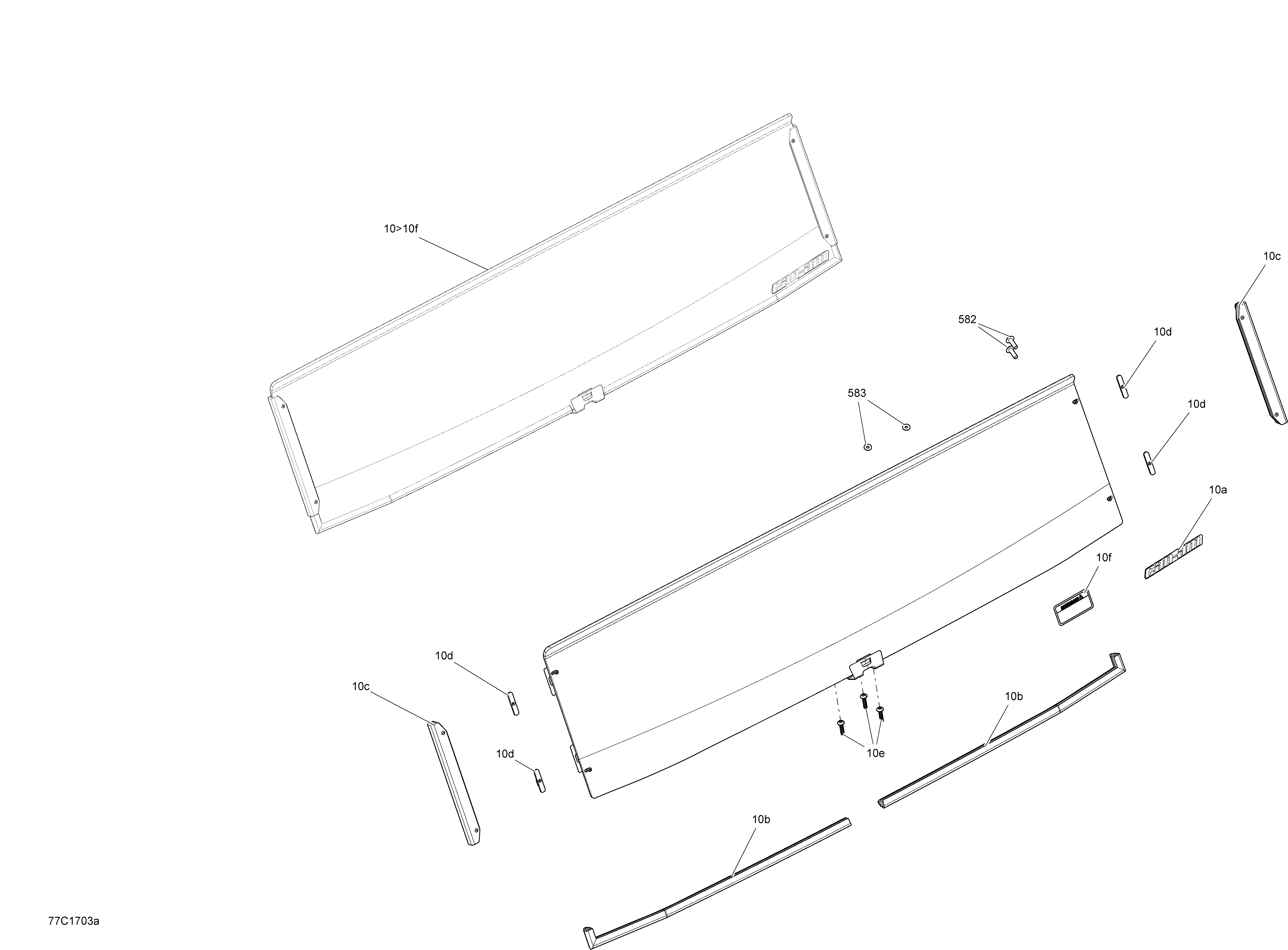

09- Cab Exterior - Hunter Package для BRP Defender HD8, HD10 - 2017
-
№АртикулНазвание
-
10>10f715002433 Half Windshield Kit. Includes 10 to 10fHalf Windshield Kit. Includes 10 to 10f
-
10a704904566 CAN-AM DecalCAN-AM Decal
-
10b715003502 Seal kitSeal kit
-
10c708200513 Side GuideSide Guide
-
10d708200510 HookHook
-
10e250000709 Torx Screw M6.81 X 30Torx Screw M6.81 X 30
-
10f704905936 Warning Label Vehicule TransportWarning Label Vehicule Transport
-
581232081414 Hex. Nut M8Hex. Nut M8
-
582250000874 Torx Truss M8 X 25Torx Truss M8 X 25
-
583234082410 Flat Washer 8 mmFlat Washer 8 mm
