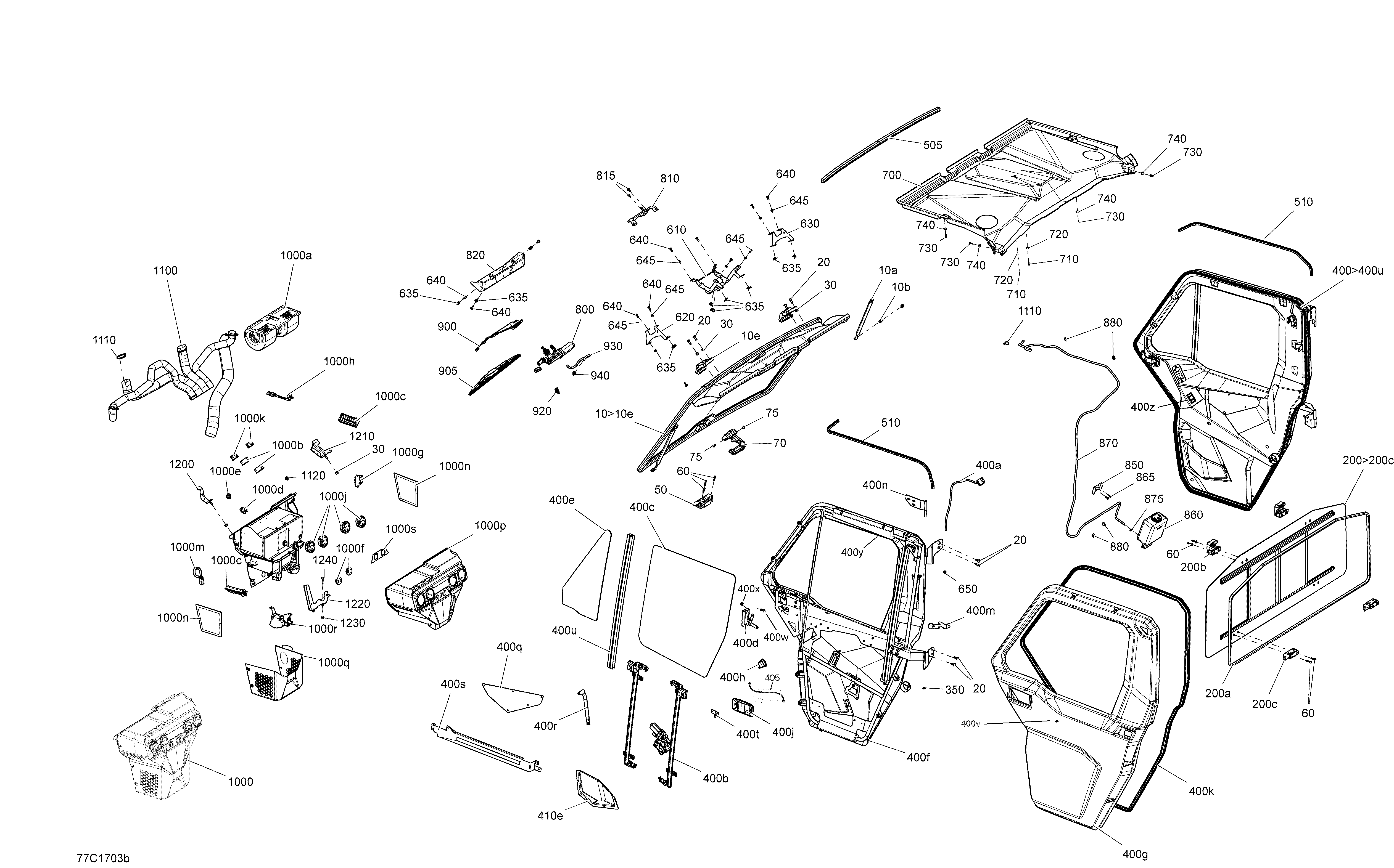

09- Cabin Enclosure - Heating System для BRP Defender HD8, HD10 - 2017

  • №
    Артикул
    Название
  • 10>10e
    715002942 Windshield Ass'y. Includes 10 to 10e
    Windshield Ass'y. Includes 10 to 10e
  • 10a
    705800030 Shock
    Shock
  • 10b
    250300039 Ball Head Stud
    Ball Head Stud
  • 10e
    705800082 Windshield Hinges
    Windshield Hinges
  • 20
    250000874 Torx Truss M8 X 25
    Torx Truss M8 X 25
  • 30
    233281414 Hex. Flanged Elastic Nut M8
    Hex. Flanged Elastic Nut M8
  • 50
    705800008 Handle Anchor
    Handle Anchor
  • 60
    250000709 Torx Screw M6.81 X 30
    Torx Screw M6.81 X 30
  • 70
    705800085 Mobile Handle Ass'y
    Mobile Handle Ass'y
  • 75
    250000881 Torx Truss M8 X 16
    Torx Truss M8 X 16
  • 200>200c
    715002440 Rear Window kit. Includes 200 to 200c
    Rear Window kit. Includes 200 to 200c
  • 200a
    705800054 Seal
    Seal
  • 200b
    705800088 Upper Clamp Ass'y. Includes 200b to 200b1
    Upper Clamp Ass'y. Includes 200b to 200b1
  • 200b1
    250000709 Torx Screw M6.81 X 30
    Torx Screw M6.81 X 30
  • 200c
    705800090 Lower Clamp Ass'y. Includes 200c to 200c1
    Lower Clamp Ass'y. Includes 200c to 200c1
  • 200c1
    250000709 Torx Screw M6.81 X 30
    Torx Screw M6.81 X 30
  • 350
    293370125 Retaining Ring
    Retaining Ring
  • 400>400z
    705800186 RH Door Ass'y. Includes 400 to 400u
    RH Door Ass'y. Includes 400 to 400u
  • 400>400z
    705800185 LH Door Ass'y. Includes 400 to 400u
    LH Door Ass'y. Includes 400 to 400u
  • 400a
    705800050 Passenger Door Harness
    Passenger Door Harness
  • 400a
    705800047 Driver Door Harness
    Driver Door Harness
  • 400b
    705800051 RH Window Actuator
    RH Window Actuator
  • 400b
    705800046 LH Window Actuator
    LH Window Actuator
  • 400c
    705800025 RH Glass
    RH Glass
  • 400c
    705800016 LH Glass
    LH Glass
  • 400d
    703500916 RH Interior Latch Kit
    RH Interior Latch Kit
  • 400d
    703500915 LH Interior Latch Kit
    LH Interior Latch Kit
  • 400e
    705800052 RH Glass
    RH Glass
  • 400e
    705800044 LH Glass
    LH Glass
  • 400f
    705800026 RH Liner Door. For Steel Tube Handle
    RH Liner Door. For Steel Tube Handle
  • 400f
    705800017 LH Liner Door. For Steel Tube Handle
    LH Liner Door. For Steel Tube Handle
  • 400f
    705800323 RH Liner Door. For Plastic Handle
    RH Liner Door. For Plastic Handle
  • 400f
    705800322 LH Liner Door. For Plastic Handle
    LH Liner Door. For Plastic Handle
  • 400g
    705800027 RH Outside Panel
    RH Outside Panel
  • 400g
    705800018 LH Outside Panel
    LH Outside Panel
  • 400h
    705800048 Window Switch
    Window Switch
  • 400j
    705800015 External Handle. Keys 705800184 sold separately
    External Handle. Keys 705800184 sold separately
  • 400k
    705800045 Seal
    Seal
  • 400m
    705800183 Strap 205mm Long
    Strap 205mm Long
  • 400n
    703500918 RH Hinge Kit
    RH Hinge Kit
  • 400n
    703500917 LH Hinge Kit
    LH Hinge Kit
  • 400q
    715003568 Door Panel Kit RH
    Door Panel Kit RH
  • 400q
    715003567 Door Panel Kit LH
    Door Panel Kit LH
  • 400r
    705800147 Interior Handle. Steel Tube
    Interior Handle. Steel Tube
  • 400r
    705800229 Interior Handle LH. Plastic
    Interior Handle LH. Plastic
  • 400r
    705800230 Interior Handle RH. Plastic
    Interior Handle RH. Plastic
  • 400s
    705800149 RH Door Frame Bracket
    RH Door Frame Bracket
  • 400s
    705800148 LH Door Frame Bracket
    LH Door Frame Bracket
  • 400t
    705800150 Window Guide Bracket
    Window Guide Bracket
  • 400u
    705800151 Window Guide Extrusion
    Window Guide Extrusion
  • 400v
    705800156 Dart
    Dart
  • 400w
    205484060 Socket Head Screw M8 X 40
    Socket Head Screw M8 X 40
  • 400x
    233281466 Elastic Flang Nut M8
    Elastic Flang Nut M8
  • 400y
    705800177 U Shape Seal
    U Shape Seal
  • 400z
    715900526 LH Power Window Swith Housing
    LH Power Window Swith Housing
  • 400z
    715900527 RH Power Window Swith Housing
    RH Power Window Swith Housing
  • 405
    715900493 Latch Cable LH 2,4''
    Latch Cable LH 2,4''
  • 405
    715900494 Latch Cable RH 2,9''
    Latch Cable RH 2,9''
  • 405
    715900504 Latch Cable Interior 28''
    Latch Cable Interior 28''
  • 410a
    703500917 LH Hinge Kit
    LH Hinge Kit
  • 410a
    703500918 RH Hinge Kit
    RH Hinge Kit
  • 410c
    703500915 LH Interior Latch Kit
    LH Interior Latch Kit
  • 410c
    703500916 RH Interior Latch Kit
    RH Interior Latch Kit
  • 410e
    705800145 LH Pocket
    LH Pocket
  • 410e
    705800146 RH Pocket
    RH Pocket
  • 505
    293250361 Gasket
    Gasket
  • 510
    293250393 Extrusion
    Extrusion
  • 610
    705800060 Support
    Support
  • 620
    705800108 LH Support
    LH Support
  • 630
    705800109 RH Support
    RH Support
  • 635
    250000048 Panel Nut M6 X 1.0
    Panel Nut M6 X 1.0
  • 640
    250000722 Torx Screw M6 X 20
    Torx Screw M6 X 20
  • 645
    233261414 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 650
    207662044 Hex. Flanged Screw M6 X 20
    Hex. Flanged Screw M6 X 20
  • 700
    715003099 Roof Rear Liner Assembly
    Roof Rear Liner Assembly
  • 710
    250000759 Torx-Truss Pt K40 X 16
    Torx-Truss Pt K40 X 16
  • 720
    250200025 Washer M5
    Washer M5
  • 730
    250000760 Torx Screw Truss Head PT.K50 X 20
    Torx Screw Truss Head PT.K50 X 20
  • 740
    234062670 Flat Washer, Stainless
    Flat Washer, Stainless
  • 800
    705010657 Wiper Motor
    Wiper Motor
  • 810
    705800073 Cover Support Ass'y
    Cover Support Ass'y
  • 815
    207561644 Hex. Flanged Screw M6 X 16, Scotch Grip
    Hex. Flanged Screw M6 X 16, Scotch Grip
  • 820
    705800072 Cover, Wiper Motor
    Cover, Wiper Motor
  • 850
    705800086 Windshield Washer Tank Support
    Windshield Washer Tank Support
  • 860
    705800039 Windshield Washer Tank
    Windshield Washer Tank
  • 865
    250000720 Torx Screw K50 X 16
    Torx Screw K50 X 16
  • 870
    415080200 Hose, Polyurethane
    Hose, Polyurethane
  • 875
    414554800 Spring Clamp
    Spring Clamp
  • 880
    414227300 Clip
    Clip
  • 900
    705010656 Wiper Arm
    Wiper Arm
  • 905
    705011443 Wiper
    Wiper
  • 920
    705800103 90° Elbow Connector
    90° Elbow Connector
  • 930
    415080200 Hose, Polyurethane
    Hose, Polyurethane
  • 940
    275500398 Check Valve
    Check Valve
  • 1000
    715001978 Defrost, Heat and Ventilation System. Includes 1000 to 1000t
    Defrost, Heat and Ventilation System. Includes 1000 to 1000t
  • 1000a
    520001536 Fan
    Fan
  • 1000b
    520001672 Duct Adaptor
    Duct Adaptor
  • 1000c
    520001673 Rectangular Grid
    Rectangular Grid
  • 1000d
    520001674 Fan Switch
    Fan Switch
  • 1000e
    520001675 Button
    Button
  • 1000f
    520001676 Grommet 5/8''
    Grommet 5/8''
  • 1000g
    520001679 Fuse Box
    Fuse Box
  • 1000h
    520001680 Potentiometer
    Potentiometer
  • 1000j
    520001681 Round Grid
    Round Grid
  • 1000k
    520001682 Duct Adaptor
    Duct Adaptor
  • 1000m
    520001683 Wiring Harness
    Wiring Harness
  • 1000n
    520001537 Filter
    Filter
  • 1000p
    520001546 Console
    Console
  • 1000q
    520001626 Lower Cover
    Lower Cover
  • 1000r
    520001685 Valve Ass'y 5/8''
    Valve Ass'y 5/8''
  • 1000s
    520001686 HVAC Decal
    HVAC Decal
  • 1000t
    250000722 Torx Screw M6 X 20
    Torx Screw M6 X 20
  • 1100
    520001643 Air Duct Kit
    Air Duct Kit
  • 1110
    293750008 Tie-Rap 350 mm
    Tie-Rap 350 mm
  • 1120
    293750062 Tie Rap Clip
    Tie Rap Clip
  • 1200
    520001619 LH Support
    LH Support
  • 1210
    520001621 RH Support
    RH Support
  • 1220
    520001623 Central Support
    Central Support
  • 1230
    293450274 Insert
    Insert
  • 1240
    207563044 Hex. Flanged Screw M6 X 30, Scotch Grip
    Hex. Flanged Screw M6 X 30, Scotch Grip
  • 2001
    232081414 Hex. Nut M8
    Hex. Nut M8
  • 2003
    234082410 Flat Washer 8 mm
    Flat Washer 8 mm
