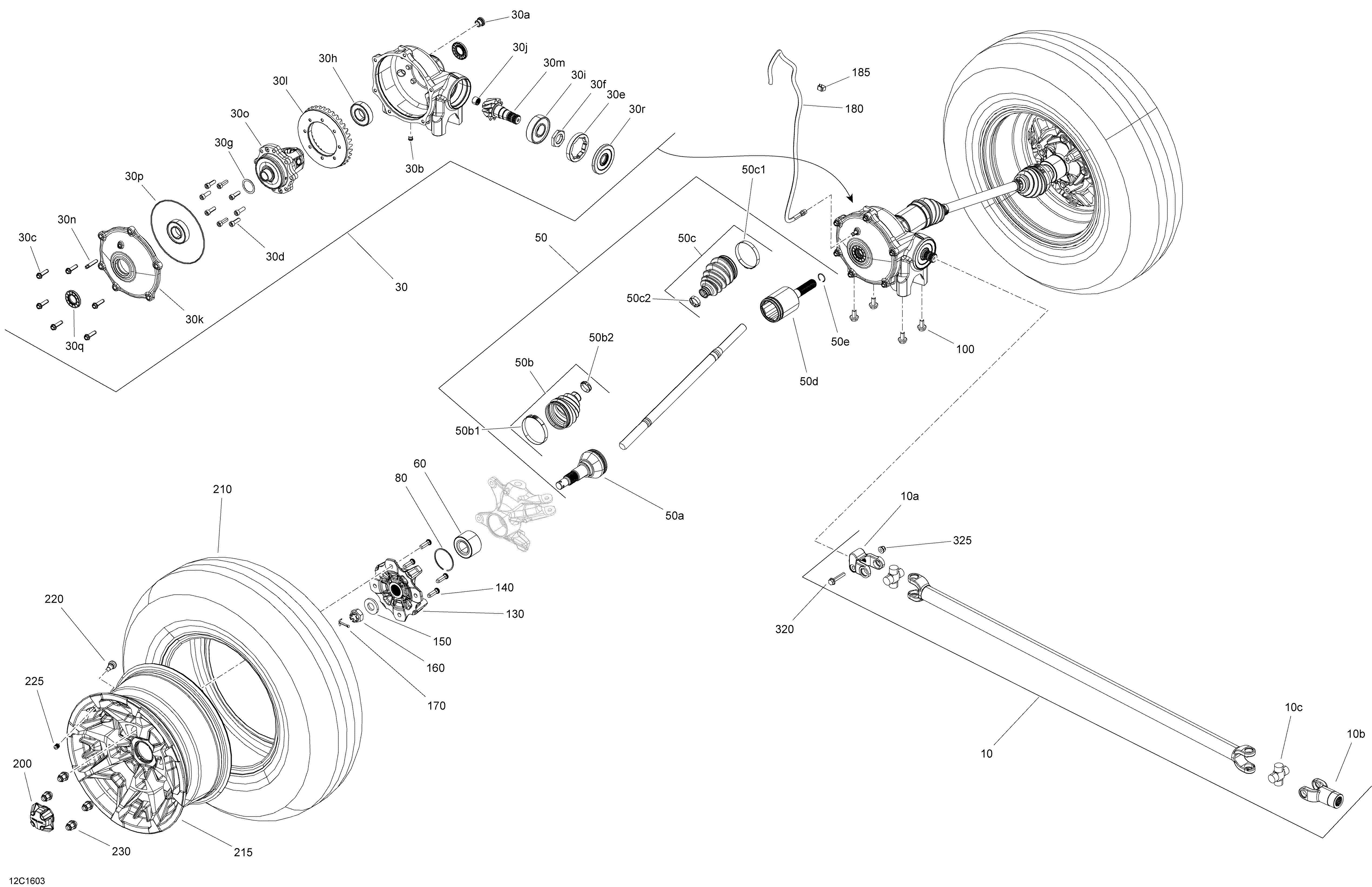

07- Drive System, Front для BRP Traxter HD8 - 2016
-
№АртикулНазвание
-
10>10c705401544 Drive Shaft Ass'yDrive Shaft Ass'y
-
10a715900400 Fixed YokeFixed Yoke
-
10b715900401 YokeYoke
-
10c715900402 J-Joint Cross KitJ-Joint Cross Kit
-
30>30r705401665 Front Differential Ass'y. Model With DPSFront Differential Ass'y. Model With DPS
-
30>30r705401682 Front Differential Ass'y. Model Without DPSFront Differential Ass'y. Model Without DPS
-
30a705501889 Fill Level PlugFill Level Plug
-
30b705501885 Drain PlugDrain Plug
-
30c705501886 ScrewScrew
-
30d705401818 ScrewScrew
-
30e705401819 NutNut
-
30f705401820 NutNut
-
30g705401604 ShimShim
-
30h705401606 Ball BearingBall Bearing
-
30i705401821 Ball BearingBall Bearing
-
30j705401607 Needle BearingNeedle Bearing
-
30k705401667 Front CoverFront Cover
-
30l705401822 36Th Gear36Th Gear
-
30m705401823 10Th Gear10Th Gear
-
30n705501887 Vent ValveVent Valve
-
30o705401825 Differential. Model With DPSDifferential. Model With DPS
-
30p705401828 Differential. Model Without DPSDifferential. Model Without DPS
-
30q705401618 GasketGasket
-
30r705401827 Oil SealOil Seal
-
50>50e705401801 RH CV JointRH CV Joint
-
50>50e705401802 LH CV JointLH CV Joint
-
50a715900416 CV JointCV Joint
-
50b>50b2705401345 Boot Kit, Wheel SideBoot Kit, Wheel Side
-
50b1715900282 Oetiker Clamp, LargeOetiker Clamp, Large
-
50b2715900283 Oetiker Clamp, SmallOetiker Clamp, Small
-
50c>50c2705401346 Boot Kit, Differential SideBoot Kit, Differential Side
-
50c1715900284 Oetiker Clamp, LargeOetiker Clamp, Large
-
50c2715900261 Oetiker Clamp, SmallOetiker Clamp, Small
-
50d715900418 RH Plunging JointRH Plunging Joint
-
50d715900417 LH Plunging JointLH Plunging Joint
-
50e705401349 Circlip JointCirclip Joint
-
60293350040 Cone BearingCone Bearing
-
80293370019 CirclipCirclip
-
100207502046 Hex. Flanged Screw M10 X 20Hex. Flanged Screw M10 X 20
-
130705502338 Wheel HubWheel Hub
-
140250300055 Wheel Stud M10 X 1.25Wheel Stud M10 X 1.25
-
150250200148 Spring WasherSpring Washer
-
160250100161 Castle Nut M20Castle Nut M20
-
170250400071 Cotter PinCotter Pin
-
180415080200 Hose, PolyurethaneHose, Polyurethane
-
185414227300 ClipClip
-
200705400928 Wheel Cap. Package DPSWheel Cap. Package DPS
-
210705401658 Front TireFront Tire
-
215705401217 Black Front Rim. Package Base, ConvenienceBlack Front Rim. Package Base, Convenience
-
215705401638 Front Rim. Package DPS CamoFront Rim. Package DPS Camo
-
220705400193 Rim Valve With CapRim Valve With Cap
-
225293000110 Valve CapValve Cap
-
230250100042 Steel Wheel Nut. Package Base, ConvenienceSteel Wheel Nut. Package Base, Convenience
-
230250100100 Black Wheel Nut M10 X 1.25. Package DPS CamoBlack Wheel Nut M10 X 1.25. Package DPS Camo
-
320207684586 Hex. Flanged Screw M8 X 45Hex. Flanged Screw M8 X 45
-
325233281416 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
