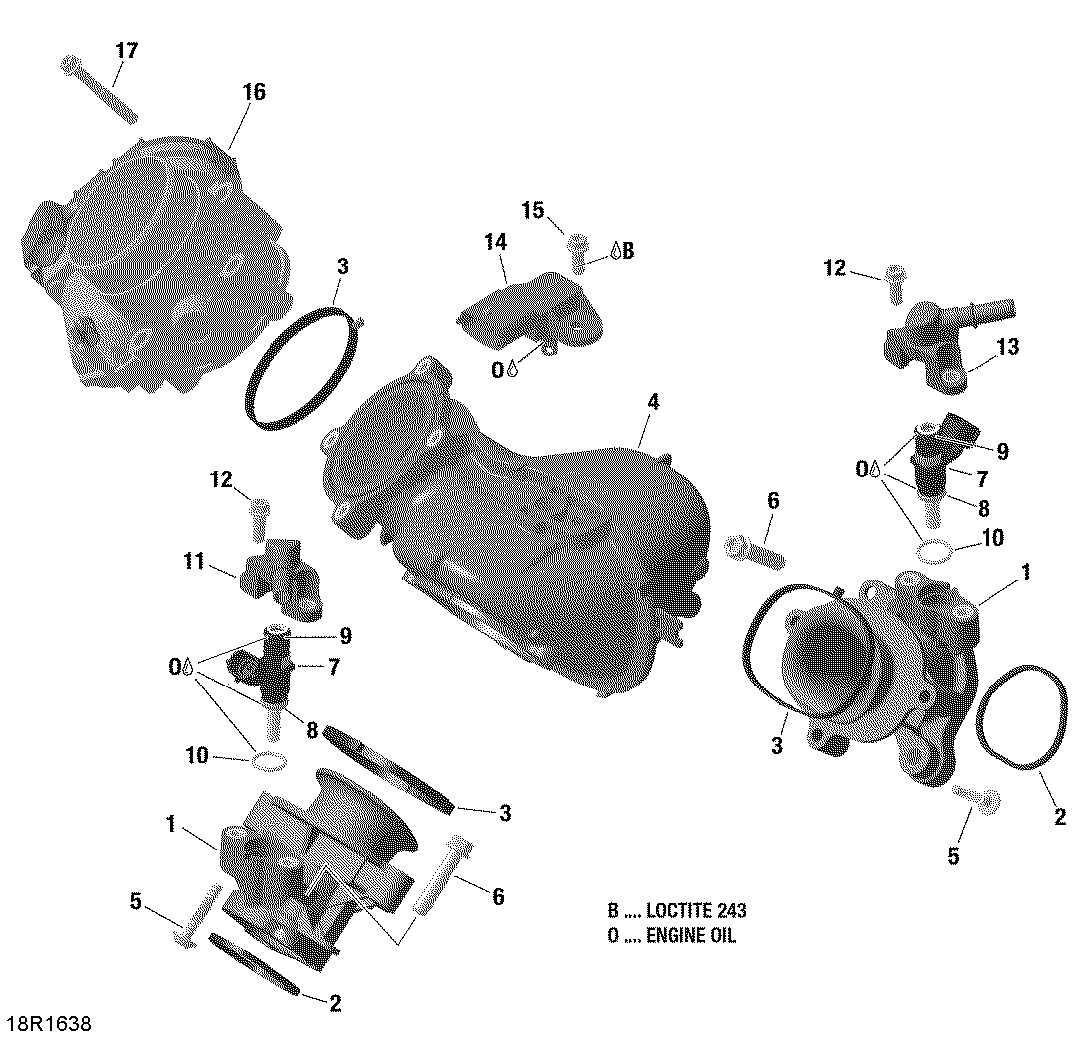

02- Air Intake Manifold And Throttle Body - HD8 для BRP Traxter HD8 - 2016
-
№АртикулНазвание
-
1420267610 Air Intake ManifoldAir Intake Manifold
-
2420630642 Gasket. Included in Gasket SetGasket. Included in Gasket Set
-
3420431900 Gasket. Included in Gasket SetGasket. Included in Gasket Set
-
4420667792 Air Intake ManifoldAir Intake Manifold
-
5420441573 Flanged Torx Screw M6 X 30Flanged Torx Screw M6 X 30
-
6420641188 Flanged Torx Screw M8 X 35Flanged Torx Screw M8 X 35
-
7>9420874840 Injection Valve Ass'yInjection Valve Ass'y
-
8420431890 O-RingO-Ring
-
9420631220 O-RingO-Ring
-
10420631295 O-Ring. Included in Gasket SetO-Ring. Included in Gasket Set
-
11420874901 Fuel RailFuel Rail
-
12420641048 Flanged Torx Screw M6 X 16Flanged Torx Screw M6 X 16
-
13420874901 Fuel RailFuel Rail
-
14707000995 Pressure And Temperature SensorPressure And Temperature Sensor
-
15420641588 Flanged Torx Screw M6 X 16Flanged Torx Screw M6 X 16
-
16420892596 Throttle BodyThrottle Body
-
17420440324 Flanged Torx Screw M6 X 45Flanged Torx Screw M6 X 45
