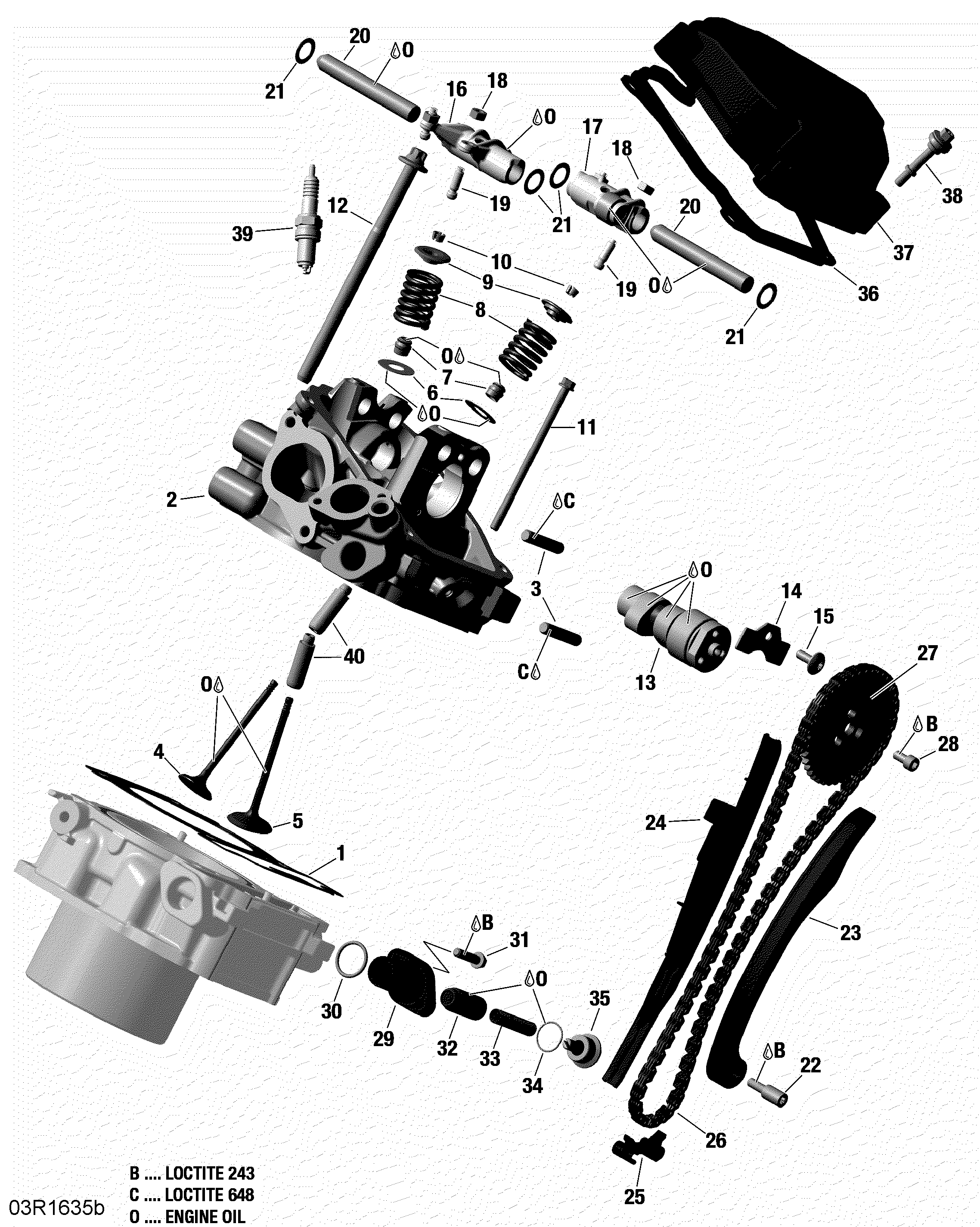

01- Cylinder Head, Rear - HD10 для BRP Defender - 2016
-
№АртикулНазвание
-
1420630195 Cylinder Head GasketCylinder Head Gasket
-
2>3420413498 Cylinder Head Ass'y, RearCylinder Head Ass'y, Rear
-
3420941014 Stud M8 x 26Stud M8 x 26
-
4420254362 Exhaust Valve, 27 mmExhaust Valve, 27 mm
-
5420254352 Intake Valve, 31 mmIntake Valve, 31 mm
-
6420627770 Thrust WasherThrust Washer
-
7420230515 Valve Stem Seal. Included in Gasket SetValve Stem Seal. Included in Gasket Set
-
8420239295 Valve SpringValve Spring
-
9420254132 Valve Spring RetainerValve Spring Retainer
-
10420254120 Cotter ValveCotter Valve
-
11420440612 Flanged Torx Screw M6 X 105Flanged Torx Screw M6 X 105
-
12420441284 Torx Screw M10 X 159Torx Screw M10 X 159
-
13420637571 CamshaftCamshaft
-
14420627743 Holding StripHolding Strip
-
15420241529 Torx Screw M6 X 16Torx Screw M6 X 16
-
16420254905 Rocker Arm InletRocker Arm Inlet
-
17420254915 Rocker Arm ExhaustRocker Arm Exhaust
-
18420242910 Hex. Nut M6Hex. Nut M6
-
19420241335 Adjustment Screw M6 X 0.75Adjustment Screw M6 X 0.75
-
20420229712 Pin #12, Small, M6 X 90Pin #12, Small, M6 X 90
-
21420944382 ShimShim
-
22420240943 Bearing Screw M6Bearing Screw M6
-
23420436017 Chain Tension GuideChain Tension Guide
-
24420236583 Chain GuideChain Guide
-
25420236350 Chain GuideChain Guide
-
26420297068 Silent ChainSilent Chain
-
27420254435 Camshaft Sprocket, 42 TeethCamshaft Sprocket, 42 Teeth
-
28420840031 Screw M6 X 12Screw M6 X 12
-
29420236510 Chain Tensioner HousingChain Tensioner Housing
-
30420430370 O-Ring. Included in Gasket SetO-Ring. Included in Gasket Set
-
31420641238 Flanged Torx Screw M6 X 25Flanged Torx Screw M6 X 25
-
32420236520 Chain Tensioner PlungerChain Tensioner Plunger
-
33420238120 SpringSpring
-
34420250890 O-Ring. Included in Gasket SetO-Ring. Included in Gasket Set
-
35420641150 Plug ScrewPlug Screw
-
36420630260 Gasket. Included in Gasket SetGasket. Included in Gasket Set
-
37420610393 Valve CoverValve Cover
-
38420440567 Hex. Distance Screw M6 X 30.5Hex. Distance Screw M6 X 30.5
-
39707000246 Spark Plug, NGK DCP-R8ESpark Plug, NGK DCP-R8E
-
40420254374 Valve GuideValve Guide
