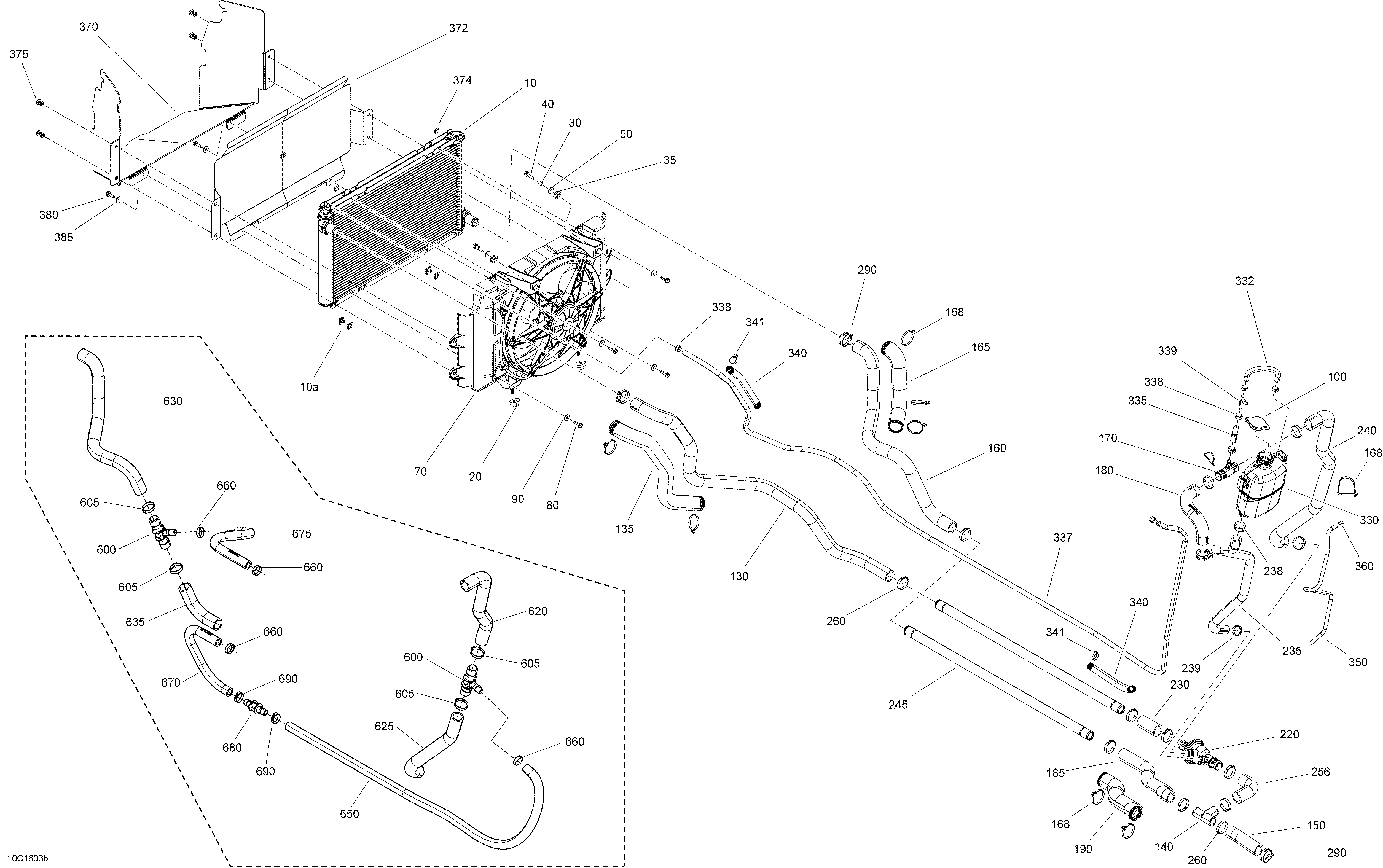

01- Cooling System - With Heating System для BRP Defender - 2016

  • №
    Артикул
    Название
  • 10>10a
    709200533 Radiator
    Radiator
  • 10a
    250100169 Panel Nut M6 X 1
    Panel Nut M6 X 1
  • 20
    709200285 Grommet
    Grommet
  • 30
    293900105 Bushing
    Bushing
  • 35
    293720053 Grommet
    Grommet
  • 40
    207662544 Hex. Flanged Screw M6 X 25
    Hex. Flanged Screw M6 X 25
  • 50
    234062410 Flat Washer 6 mm
    Flat Washer 6 mm
  • 70
    709200534 Fan
    Fan
  • 80
    207662044 Hex. Flanged Screw M6 X 20
    Hex. Flanged Screw M6 X 20
  • 90
    234062410 Flat Washer 6 mm
    Flat Washer 6 mm
  • 100
    709200207 Pressure Cap
    Pressure Cap
  • 130
    709200537 Radiator Inlet Hose
    Radiator Inlet Hose
  • 135
    515176260 Tubing 35 mm
    Tubing 35 mm
  • 140
    509000219 T-Fitting
    T-Fitting
  • 150
    709200545 Pump Hose
    Pump Hose
  • 160
    709200539 Radiator Outlet Hose. Except Package Cab
    Radiator Outlet Hose. Except Package Cab
  • 165
    515176260 Tubing 35 mm
    Tubing 35 mm
  • 168
    293750008 Tie-Rap 350 mm
    Tie-Rap 350 mm
  • 170
    509000510 T-Fitting
    T-Fitting
  • 180
    709200540 Outlet Hose
    Outlet Hose
  • 185
    709200541 Inlet Hose
    Inlet Hose
  • 220
    709200581 Thermostat Housing
    Thermostat Housing
  • 230
    709200299 Hose
    Hose
  • 235
    709200582 Tank Outlet Hose
    Tank Outlet Hose
  • 238
    293650165 Oetiker Gear Clamp
    Oetiker Gear Clamp
  • 239
    509000442 Oetiker Gear Clamp
    Oetiker Gear Clamp
  • 240
    709200544 Thermostat Inlet Hose. Except Package Cab
    Thermostat Inlet Hose. Except Package Cab
  • 245
    709200542 Radiator Pipe
    Radiator Pipe
  • 256
    709200538 Thermostat Hose
    Thermostat Hose
  • 260
    509000162 Gear Clamp
    Gear Clamp
  • 290
    293650166 Norma Spring Clamp
    Norma Spring Clamp
  • 330
    709200412 Coolant Tank
    Coolant Tank
  • 332
    509000775 Hose
    Hose
  • 335
    709200606 Bleeding Hose
    Bleeding Hose
  • 337
    415129508 Bleeder Hose
    Bleeder Hose
  • 338
    293650047 Crimp Clamp
    Crimp Clamp
  • 339
    293710059 Y-Fitting
    Y-Fitting
  • 340
    415080000 Tubing 16 mm
    Tubing 16 mm
  • 340
    414115200 Tie-Rap 180 mm
    Tie-Rap 180 mm
  • 350
    415080200 Hose, Polyurethane
    Hose, Polyurethane
  • 360
    414554800 Spring Clamp
    Spring Clamp
  • 370
    705009325 Radiator Deflector
    Radiator Deflector
  • 372
    708200609 Grille
    Grille
  • 374
    517302674 Clip
    Clip
  • 375
    293150089 Tuflok Plastic Rivet
    Tuflok Plastic Rivet
  • 380
    207662044 Hex. Flanged Screw M6 X 20
    Hex. Flanged Screw M6 X 20
  • 385
    234062410 Flat Washer 6 mm
    Flat Washer 6 mm
  • 600
    509000995 T Fitting. Package Cab
    T Fitting. Package Cab
  • 605
    509000162 Gear Clamp. Package Cab
    Gear Clamp. Package Cab
  • 620
    709200611 Thermostat Inlet Hose. Package Cab
    Thermostat Inlet Hose. Package Cab
  • 625
    709200612 Thermostat Inlet Hose. Package Cab
    Thermostat Inlet Hose. Package Cab
  • 630
    709200613 Radiator Outlet Hose. Package Cab
    Radiator Outlet Hose. Package Cab
  • 635
    709200614 Radiator Outlet Hose. Package Cab
    Radiator Outlet Hose. Package Cab
  • 650
    709200622 Hose. Package Cab
    Hose. Package Cab
  • 660
    509000442 Oetiker Gear Clamp. Package Cab
    Oetiker Gear Clamp. Package Cab
  • 670
    709200639 Outlet Hose. Package Cab
    Outlet Hose. Package Cab
  • 675
    709200621 Outlet Hose. Package Cab
    Outlet Hose. Package Cab
  • 680
    293710163 Fitting. Package Cab
    Fitting. Package Cab
  • 690
    509000552 Gear Clamp. Package Cab
    Gear Clamp. Package Cab
  • 700
    415129508 Bleeder Hose. Package Cab
    Bleeder Hose. Package Cab
  • 720
    293710059 Y Fitting. Package Cab
    Y Fitting. Package Cab
  • 730
    293650047 Oetiker Clamp. Package Cab
    Oetiker Clamp. Package Cab
