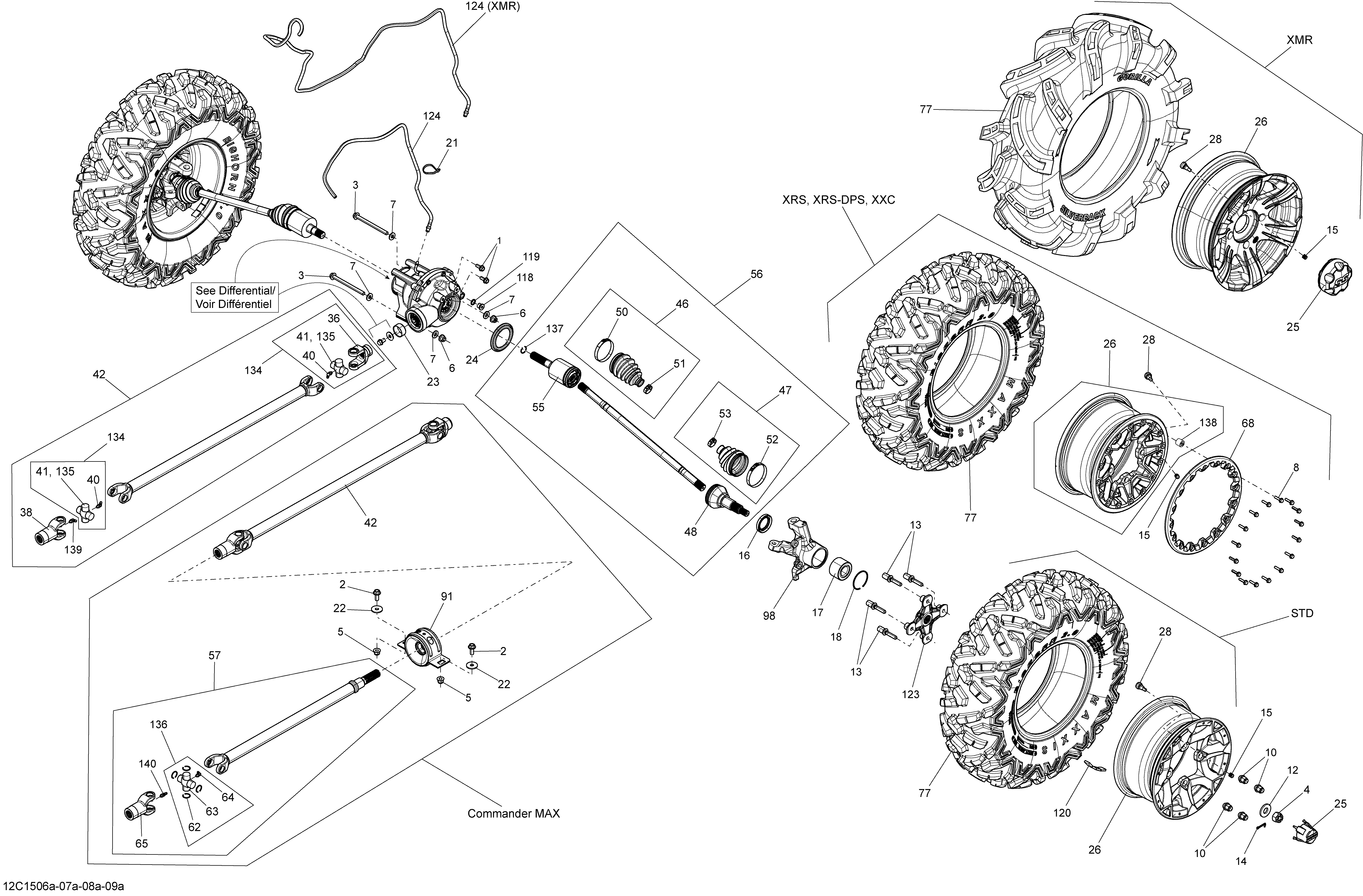

07- Drive System, Front _12C1508a для BRP Maverick 1000_XXC - 2015
-
№АртикулНазвание
-
1207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
3230603046 Flanged Hex. Screw, M10 X 130Flanged Hex. Screw, M10 X 130
-
4250100047 Hex. Castellated Nut M18Hex. Castellated Nut M18
-
6233201436 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
7234201474 Conical Spring Washer 10 mmConical Spring Washer 10 mm
-
8250000435 Hex. Flanged Screw M6 X 25. Package-XXC BlackHex. Flanged Screw M6 X 25. Package-XXC Black
-
8250000435 Hex. Flanged Screw M6 X 25. Package-XXC White North AmericaHex. Flanged Screw M6 X 25. Package-XXC White North America
-
8250000435 Hex. Flanged Screw M6 X 25. Package-XXC White InternationalHex. Flanged Screw M6 X 25. Package-XXC White International
-
8250000435 Hex. Flanged Screw M6 X 25. Package-XXC White EuropeHex. Flanged Screw M6 X 25. Package-XXC White Europe
-
10250100100 Black Wheel Nut M10 X 1.25Black Wheel Nut M10 X 1.25
-
12250200049 Spring WasherSpring Washer
-
13250300051 Wheel StudWheel Stud
-
14250400036 Cotter PinCotter Pin
-
15293000110 Valve CapValve Cap
-
16293250246 O-RingO-Ring
-
17293350040 Cone BearingCone Bearing
-
18293370019 CirclipCirclip
-
21414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
23705400036 Wear RingWear Ring
-
24705400780 Wear SleeveWear Sleeve
-
26705401640 Front Rim. Package-XXC BlackFront Rim. Package-XXC Black
-
26705401640 Front Rim. Package-XXC White North AmericaFront Rim. Package-XXC White North America
-
26705401640 Front Rim. Package-XXC White InternationalFront Rim. Package-XXC White International
-
26705401640 Front Rim. Package-XXC White EuropeFront Rim. Package-XXC White Europe
-
28705400193 Rim Valve With Cap. Package-XXC BlackRim Valve With Cap. Package-XXC Black
-
28705400193 Rim Valve With Cap. Package-XXC White North AmericaRim Valve With Cap. Package-XXC White North America
-
28705400193 Rim Valve With Cap. Package-XXC White InternationalRim Valve With Cap. Package-XXC White International
-
28705400193 Rim Valve With Cap. Package-XXC White EuropeRim Valve With Cap. Package-XXC White Europe
-
36715900116 Fixed Yoke JointFixed Yoke Joint
-
38715900231 Yoke Joint. Cover 715900483Yoke Joint. Cover 715900483
-
40703500813 Grease FittingGrease Fitting
-
41715900183 U-JointU-Joint
-
42705401196 Drive Axle Ass'yDrive Axle Ass'y
-
46705401346 Boot Kit, Differential SideBoot Kit, Differential Side
-
46705401346 Boot Kit, Differential SideBoot Kit, Differential Side
-
47705401345 Boot Kit, Wheel SideBoot Kit, Wheel Side
-
47705401345 Boot Kit, Wheel SideBoot Kit, Wheel Side
-
48705401344 CV JointCV Joint
-
48705401344 CV JointCV Joint
-
50715900284 Oetiker Clamp, LargeOetiker Clamp, Large
-
50715900284 Oetiker Clamp, LargeOetiker Clamp, Large
-
51715900261 Oetiker Clamp, SmallOetiker Clamp, Small
-
51715900261 Oetiker Clamp, SmallOetiker Clamp, Small
-
52715900282 Oetiker Clamp, LargeOetiker Clamp, Large
-
52715900282 Oetiker Clamp, LargeOetiker Clamp, Large
-
53715900283 Oetiker Clamp, SmallOetiker Clamp, Small
-
53715900283 Oetiker Clamp, SmallOetiker Clamp, Small
-
55705401348 RH Plunging JointRH Plunging Joint
-
55705401350 LH Plunging JointLH Plunging Joint
-
56705401367 RH Half ShaftRH Half Shaft
-
56705401368 LH Half ShaftLH Half Shaft
-
68705401329 Yellow Reinforcement Disc. Package-XXC BlackYellow Reinforcement Disc. Package-XXC Black
-
68705401445 Red Reinforcement Disc. Package-XXC White North AmericaRed Reinforcement Disc. Package-XXC White North America
-
68705401445 Red Reinforcement Disc. Package-XXC White InternationalRed Reinforcement Disc. Package-XXC White International
-
68705401445 Red Reinforcement Disc. Package-XXC White EuropeRed Reinforcement Disc. Package-XXC White Europe
-
77705401385 Front Tire Maxxis 27X9X12. Package-XXC BlackFront Tire Maxxis 27X9X12. Package-XXC Black
-
77705401385 Front Tire Maxxis 27X9X12. Package-XXC White North AmericaFront Tire Maxxis 27X9X12. Package-XXC White North America
-
77705401385 Front Tire Maxxis 27X9X12. Package-XXC White InternationalFront Tire Maxxis 27X9X12. Package-XXC White International
-
77705401386 Front Tire. Package-XXC White EuropeFront Tire. Package-XXC White Europe
-
98705401548 LH Front KnuckleLH Front Knuckle
-
98705401549 RH Front KnuckleRH Front Knuckle
-
118705500504 Fill Level PlugFill Level Plug
-
119705500506 Copper WasherCopper Washer
-
123705501900 Wheel HubWheel Hub
-
124415080200 Hose, PolyurethaneHose, Polyurethane
-
134703500814 Unit Pack KitUnit Pack Kit
-
135715900117 Snap RingSnap Ring
-
137705401349 Circlip Joint. Package-XXCCirclip Joint. Package-XXC
-
137705401349 Circlip Joint. Package-XXCCirclip Joint. Package-XXC
-
138293450317 Insert. Package-XXC BlackInsert. Package-XXC Black
-
138293450317 Insert. Package-XXC White North AmericaInsert. Package-XXC White North America
-
138293450317 Insert. Package-XXC White InternationalInsert. Package-XXC White International
-
138293450317 Insert. Package-XXC White EuropeInsert. Package-XXC White Europe
-
139703500815 Grease FittingGrease Fitting
