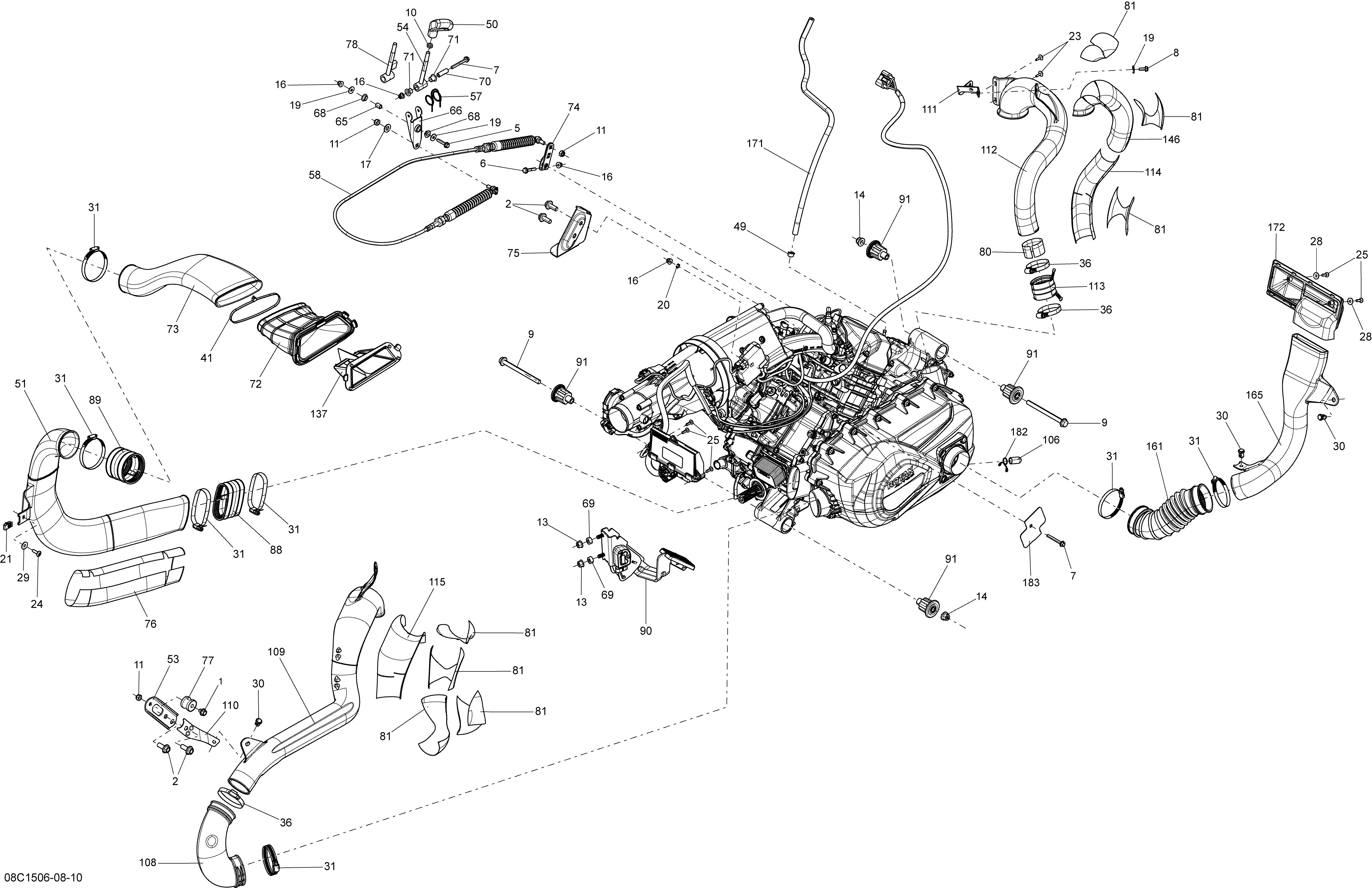

01- Engine _08C1508 для BRP Maverick 1000_XXC - 2015
-
№АртикулНазвание
-
1207581046 Flanged Screw M8 x 10, Scotch GripFlanged Screw M8 x 10, Scotch Grip
-
2207602544 Hex. Flanged Screw M10 X 25Hex. Flanged Screw M10 X 25
-
5207663034 Hex. Flanged Screw M6 X 30Hex. Flanged Screw M6 X 30
-
6207663544 Hex. Flanged Screw M6 X 35Hex. Flanged Screw M6 X 35
-
7207665044 Hex. Flanged Screw M6 X 50Hex. Flanged Screw M6 X 50
-
8210261680 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
9230602546 Hex. Flanged Screw M10 X 125Hex. Flanged Screw M10 X 125
-
10232180491 Hex. Jam Nut M8Hex. Jam Nut M8
-
11232581414 Hex. Elastic Stop Nut M8Hex. Elastic Stop Nut M8
-
13233081416 Hex. Flanged Nut M8Hex. Flanged Nut M8
-
14233201436 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
16233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
17234001410 Flat Washer 10 mmFlat Washer 10 mm
-
19234062410 Flat Washer 6 mmFlat Washer 6 mm
-
20234461608 External Serrated Lock Washer 6 mmExternal Serrated Lock Washer 6 mm
-
21250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
23250000725 Screw M4 X 16Screw M4 X 16
-
24250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
25250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
28250200025 Washer M5Washer M5
-
29250200082 Flat WasherFlat Washer
-
30293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
31293650091 Norma ClampNorma Clamp
-
36293650118 Norma Gear ClampNorma Gear Clamp
-
41293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
49414415200 Spring ClampSpring Clamp
-
50707000284 Lever HandleLever Handle
-
51707000639 Air InletAir Inlet
-
53707000707 Upper Engine BracketUpper Engine Bracket
-
54707000711 Upper Lever Arm. Model-North America, InternationalUpper Lever Arm. Model-North America, International
-
57707000750 Lever Arm SpringLever Arm Spring
-
58707000775 Shifting CableShifting Cable
-
65707000801 BushingBushing
-
66707000828 Lower Lever ArmLower Lever Arm
-
68707000847 Flanged BushingFlanged Bushing
-
69707000848 BushingBushing
-
70707001376 BushingBushing
-
71707000869 Flanged BushingFlanged Bushing
-
72707000908 AdaptorAdaptor
-
73707000909 Primary Air IntakePrimary Air Intake
-
74707000911 LeverLever
-
75707000919 Cable SupportCable Support
-
76707000924 Reflective SheetReflective Sheet
-
77707000949 Rubber IsolatorRubber Isolator
-
78707000978 Upper Lever Arm. Model-EuropeUpper Lever Arm. Model-Europe
-
80707000988 ReflectorReflector
-
81707000991 Reflective SheetReflective Sheet
-
88707001467 Flexible AdaptorFlexible Adaptor
-
89707001467 Flexible AdaptorFlexible Adaptor
-
90707001166 Accelerator PedalAccelerator Pedal
-
91707001169 DamperDamper
-
106707001185 PlugPlug
-
108707001229 Front AdaptorFront Adaptor
-
109707001230 CVT OutletCVT Outlet
-
110707001231 Front SupportFront Support
-
111707001232 Rear SupportRear Support
-
112707001243 CVT OutletCVT Outlet
-
113707001274 AdaptorAdaptor
-
114707001284 ReflectorReflector
-
115707001286 ReflectorReflector
-
137707001344 CVT FilterCVT Filter
-
146707001360 ReflectorReflector
-
161707001400 Flexible AdaptorFlexible Adaptor
-
165707001403 Air InletAir Inlet
-
171415079800 Hose 1/4''Hose 1/4''
-
172707001422 FilterFilter
-
182707800506 Retainer ClipRetainer Clip
-
183710000073 Insulator PadInsulator Pad
