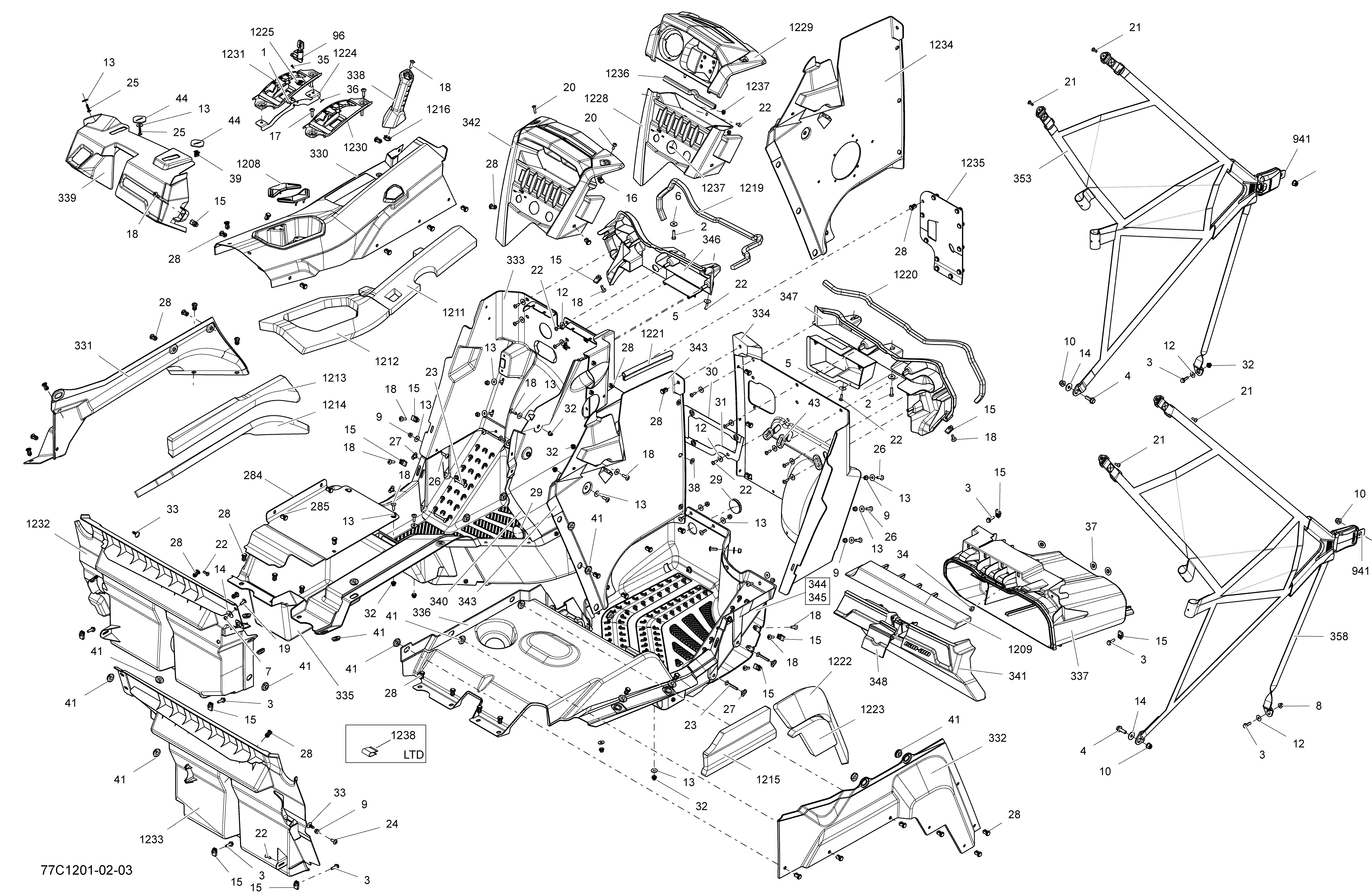

09- Cab Interior для BRP Commander STD, XT, X, 1000 EFI - 2012

  • №
    Артикул
    Название
  • 1
    205951046 Socket Head Screw M5 X 10. Europe
    Socket Head Screw M5 X 10. Europe
  • 2
    207162544 Hex. Screw M6 X 25
    Hex. Screw M6 X 25
  • 3
    207662034 Hex. Flanged Screw
    Hex. Flanged Screw
  • 4
    207682544 Hex. Flanged Screw M8 X 25
    Hex. Flanged Screw M8 X 25
  • 5
    224060201 Flat Washer
    Flat Washer
  • 6
    224061201 Flat Washer
    Flat Washer
  • 7
    232061600 Hex. Nut M6
    Hex. Nut M6
  • 8
    233261414 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 9
    233261494 Hex. Elastic Flanged Nut M6
    Hex. Elastic Flanged Nut M6
  • 10
    233281414 Hex. Flanged Elastic Nut M8
    Hex. Flanged Elastic Nut M8
  • 12
    234062410 Flat Washer 6 mm
    Flat Washer 6 mm
  • 13
    234062670 Flat Washer
    Flat Washer
  • 14
    234082410 Flat Washer 8 mm
    Flat Washer 8 mm
  • 15
    250000048 Panel Nut M6 X 1.0
    Panel Nut M6 X 1.0
  • 16
    250000079 Panel Nut M5 X 0.8
    Panel Nut M5 X 0.8
  • 17
    250000081 Torx Screw M6 X 25
    Torx Screw M6 X 25
  • 18
    250000128 Torx Truss Screw M6 X 20
    Torx Truss Screw M6 X 20
  • 19
    250000129 Torx Screw M6 X 16
    Torx Screw M6 X 16
  • 20
    250000130 Torx Screw M5 X 20
    Torx Screw M5 X 20
  • 21
    250000145 Torx Screw M5 X 14
    Torx Screw M5 X 14
  • 22
    250000146 Truss Head Torx Screw K50 X 16
    Truss Head Torx Screw K50 X 16
  • 23
    250000215 Torx Screw M6 X 45
    Torx Screw M6 X 45
  • 24
    250000261 Torx Screw M6 X 16
    Torx Screw M6 X 16
  • 25
    250000297 Truss Head Torx Screw K50 X 20
    Truss Head Torx Screw K50 X 20
  • 26
    250000335 Socket Head Screw M6 X 20
    Socket Head Screw M6 X 20
  • 27
    293100003 Nut M6
    Nut M6
  • 28
    293150089 Tuflok Plastic Rivet
    Tuflok Plastic Rivet
  • 29
    293250242 Rubber Cover
    Rubber Cover
  • 30
    293250252 Upper Seal
    Upper Seal
  • 31
    293250253 Bottom Seal
    Bottom Seal
  • 32
    293450274 Insert
    Insert
  • 33
    293730011 Dart, Black
    Dart, Black
  • 34
    293830005 Rubber Plug
    Rubber Plug
  • 35
    390401400 Rivet. Europe
    Rivet. Europe
  • 36
    391301000 Washer. Europe
    Washer. Europe
  • 37
    414859400 Cap
    Cap
  • 38
    506151252 Washer
    Washer
  • 39
    517302785 Clip
    Clip
  • 41
    705003264 Grommet
    Grommet
  • 43
    705003668 Oblong Grommet
    Oblong Grommet
  • 44
    705003841 Support Plate
    Support Plate
  • 96
    707000666 Lock. Europe
    Lock. Europe
  • 330
    715001247 Central Console Ass'y
    Central Console Ass'y
  • 330
    715001249 Central Console Ass'y. Europe
    Central Console Ass'y. Europe
  • 331
    707900001 LH Side Console
    LH Side Console
  • 332
    707900002 RH Side Console
    RH Side Console
  • 333
    707900003 LH Front Floor
    LH Front Floor
  • 334
    707900004 RH Front Floor
    RH Front Floor
  • 335
    715001264 LH Under Cover Ass'y
    LH Under Cover Ass'y
  • 336
    707900006 RH Under Cover Ass'y
    RH Under Cover Ass'y
  • 337
    707900009 Storage Bin. STD, X Model
    Storage Bin. STD, X Model
  • 337
    707900046 Storage Bin. XT Model
    Storage Bin. XT Model
  • 338
    707900011 Passenger Handle
    Passenger Handle
  • 339
    715001250 Dashboard Ass'y
    Dashboard Ass'y
  • 340
    707900017 LH Fixe Side Console
    LH Fixe Side Console
  • 341
    715001263 Bin Cover Ass'y
    Bin Cover Ass'y
  • 342
    715001265 Central Dashboard Ass'y
    Central Dashboard Ass'y
  • 342
    715900108 Central Dashboard Ass'y. Europe
    Central Dashboard Ass'y. Europe
  • 343
    707900021 RH Fixe Side Console
    RH Fixe Side Console
  • 344
    707900022 LH Lower Floor
    LH Lower Floor
  • 345
    707900023 RH Lower Floor
    RH Lower Floor
  • 346
    707900029 LH Floor Support
    LH Floor Support
  • 347
    707900030 RH Floor Support
    RH Floor Support
  • 348
    707900031 Latch
    Latch
  • 353
    707900033 LH Lateral Net. Upper Link 707900049
    LH Lateral Net. Upper Link 707900049
  • 358
    707900034 RH Lateral Net. Upper Link 707900049
    RH Lateral Net. Upper Link 707900049
  • 941
    707900035 Buckle
    Buckle
  • 1208
    707900036 Cup Retainer
    Cup Retainer
  • 1209
    707900062 Trim Glove Box
    Trim Glove Box
  • 1211
    707900041 Front Central Console Foam
    Front Central Console Foam
  • 1212
    707900042 Rear Central Console Foam
    Rear Central Console Foam
  • 1213
    707900043 LH Upper Lateral Console Foam
    LH Upper Lateral Console Foam
  • 1214
    707900044 LH Lower Lateral Console Foam
    LH Lower Lateral Console Foam
  • 1215
    707900045 RH Lateral Console Foam
    RH Lateral Console Foam
  • 1216
    707900048 Connector Tube
    Connector Tube
  • 1219
    293200093 Neoprene Seal
    Neoprene Seal
  • 1220
    293200093 Neoprene Seal
    Neoprene Seal
  • 1221
    293250240 Neoprene seal
    Neoprene seal
  • 1222
    707900055 RH Lateral Console Foam
    RH Lateral Console Foam
  • 1223
    707900056 RH Lateral Console Foam
    RH Lateral Console Foam
  • 1224
    707900058 Lock Support. Europe
    Lock Support. Europe
  • 1225
    707900060 Cap. Europe
    Cap. Europe
  • 1230
    707900070 Lever Indicator
    Lever Indicator
  • 1231
    707900071 Lever Indicator. Europe
    Lever Indicator. Europe
  • 1232
    707900092 LH Rear Deflector
    LH Rear Deflector
  • 1233
    707900094 RH Rear Deflector
    RH Rear Deflector
  • 1235
    707900108 Deflector
    Deflector
