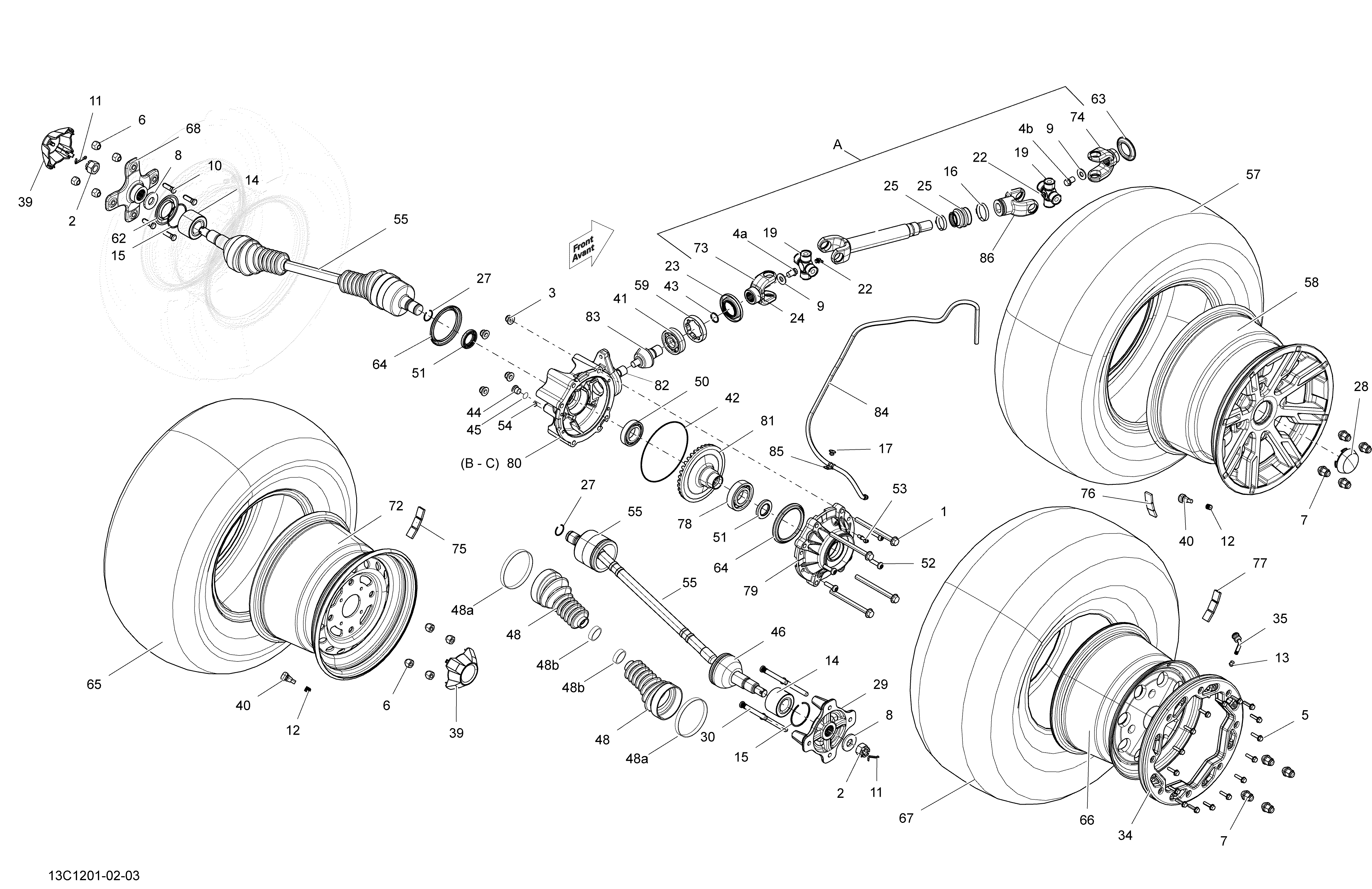

08- Drive System, Rear для BRP Commander STD, XT, X, 1000 EFI - 2012

  • №
    Артикул
    Название
  • 1
    230602546 Hex. Flanged Screw M10 X 125
    Hex. Flanged Screw M10 X 125
  • 2
    250100047 Hex. Castellated Nut M18
    Hex. Castellated Nut M18
  • 3
    233201416 Hex. Flanged Elastic Nut M10
    Hex. Flanged Elastic Nut M10
  • 4a
    250000378 Hex Flanged Screw M12 X 16, Scotch Grip
    Hex Flanged Screw M12 X 16, Scotch Grip
  • 4b
    250000359 Hex Flanged Screw M12 x 16
    Hex Flanged Screw M12 x 16
  • 5
    250000435 Hex. Flanged Screw M6 X 25. X Model
    Hex. Flanged Screw M6 X 25. X Model
  • 6
    250100042 Steel Wheel Nut. STD Model
    Steel Wheel Nut. STD Model
  • 7
    250100082 Chrome Wheel Nut M10 X 1.25. XT Model
    Chrome Wheel Nut M10 X 1.25. XT Model
  • 7
    250100100 Black Wheel Nut M10 X 1.25. XT Model CAMO
    Black Wheel Nut M10 X 1.25. XT Model CAMO
  • 7
    250100100 Black Wheel Nut M10 X 1.25. X Model
    Black Wheel Nut M10 X 1.25. X Model
  • 8
    250200049 Spring Washer
    Spring Washer
  • 9
    250200102 Flat Washer M12
    Flat Washer M12
  • 10
    250300045 Wheel Stud
    Wheel Stud
  • 11
    250400036 Cotter Pin
    Cotter Pin
  • 12
    293000110 Valve Cap
    Valve Cap
  • 13
    293000111 Valve Cap
    Valve Cap
  • 14
    293350040 Cone Bearing
    Cone Bearing
  • 15
    293370019 Circlip
    Circlip
  • 16
    293650138 Oetiker Gear Clamp
    Oetiker Gear Clamp
  • 17
    390406500 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 19
    703000022 Unit Pack Kit
    Unit Pack Kit
  • 22
    705500841 Grease Fitting
    Grease Fitting
  • 23
    705400027 Oil Seal
    Oil Seal
  • 24
    705400036 Wear Ring
    Wear Ring
  • 25
    703500255 Rubber Boot Kit
    Rubber Boot Kit
  • 27
    705500845 Circlip
    Circlip
  • 28
    705400504 Wheel Cap. XT Model CAMO
    Wheel Cap. XT Model CAMO
  • 28
    705400520 Wheel Cap. XT Model
    Wheel Cap. XT Model
  • 29
    705400713 Wheel Hub
    Wheel Hub
  • 30
    705400791 Wheel Stud
    Wheel Stud
  • 34
    705400841 Reinforcement Disk. X Model
    Reinforcement Disk. X Model
  • 35
    705400872 Rim Valve with Cap. X Model
    Rim Valve with Cap. X Model
  • 39
    705400921 Wheel Cap. STD Model
    Wheel Cap. STD Model
  • 40
    705400193 Rim Valve With Cap. Except X Model
    Rim Valve With Cap. Except X Model
  • 41
    705500260 Ball Bearing
    Ball Bearing
  • 42
    705500265 Seal
    Seal
  • 43
    703500049 Pinion Shim Kit
    Pinion Shim Kit
  • 43
    705501162 Pinion Gear Shim
    Pinion Gear Shim
  • 43
    705500267 O-Ring
    O-Ring
  • 44
    705500504 Fill Level Plug
    Fill Level Plug
  • 45
    705500506 Copper Washer
    Copper Washer
  • 46
    705500980 CV Joint
    CV Joint
  • 48
    705500870 Boot Kit
    Boot Kit
  • 48a
    293650204 Oetiker Clamp (81mm)
    Oetiker Clamp (81mm)
  • 48b
    293650203 Oetiker Clamp (27,5mm)
    Oetiker Clamp (27,5mm)
  • 50
    705500749 Ball Bearing
    Ball Bearing
  • 51
    705501196 Oil Seal
    Oil Seal
  • 52
    705500892 Screw
    Screw
  • 53
    705500893 Vent Valve
    Vent Valve
  • 54
    705500894 Drain Plug
    Drain Plug
  • 55
    705501456 Half Shaft
    Half Shaft
  • 57
    705500964 Rear Tire. XT Model
    Rear Tire. XT Model
  • 57
    705501295 Rear Tire. XT Model Europe
    Rear Tire. XT Model Europe
  • 58
    705500965 Silver Rear Rim. XT Model
    Silver Rear Rim. XT Model
  • 58
    705500965 Silver Rear Rim. XT Model
    Silver Rear Rim. XT Model
  • 58
    705501261 Black Rear Rim. XT Model CAMO
    Black Rear Rim. XT Model CAMO
  • 59
    705500987 Nut
    Nut
  • 62
    705501121 Wear Sleeve
    Wear Sleeve
  • 63
    705501123 Protector
    Protector
  • 64
    705501124 Wear Ring
    Wear Ring
  • 65
    705501129 Rear Tire. STD Model
    Rear Tire. STD Model
  • 65
    705501434 Rear Tire. STD Model Europe
    Rear Tire. STD Model Europe
  • 66
    705501137 Rear Rim. X Model
    Rear Rim. X Model
  • 67
    705501186 Rear Tire. X Model
    Rear Tire. X Model
  • 67
    705501494 Rear Tire. X Model Europe
    Rear Tire. X Model Europe
  • 68
    705501199 Wheel Hub Ass'y
    Wheel Hub Ass'y
  • 72
    705501249 Rear Rim. STD Model
    Rear Rim. STD Model
  • 73
    705501372 Differential Fixed Joint
    Differential Fixed Joint
  • 74
    705501373 Fixed Joint
    Fixed Joint
  • 75
    705501385 1/2 OZ Weight. STD Model
    1/2 OZ Weight. STD Model
  • 76
    705501385 1/2 OZ Weight. XT Model
    1/2 OZ Weight. XT Model
  • 77
    705501385 1/2 OZ Weight. X Model
    1/2 OZ Weight. X Model
  • 78
    705501389 Ball Bearing
    Ball Bearing
  • 79
    705501507 Rear Differential Cover
    Rear Differential Cover
  • 80
    705501395 Pinion Rear Cover
    Pinion Rear Cover
  • 81
    705501397 Gear, 36 Tooth
    Gear, 36 Tooth
  • 82
    705501408 Needle Bearing
    Needle Bearing
  • 83
    705501571 Pinion 10 Tooth
    Pinion 10 Tooth
  • 84
    415080200 Hose, Polyurethane
    Hose, Polyurethane
  • 85
    705600459 Clamp
    Clamp
  • 86
    705501072 Sliding Joint
    Sliding Joint
  • A
    703500762 Rear Drive Shaft Ass'y
    Rear Drive Shaft Ass'y
  • B
    705501506 Differential Ass'y
    Differential Ass'y
  • C
    703500548 Differential Shim Kit
    Differential Shim Kit
