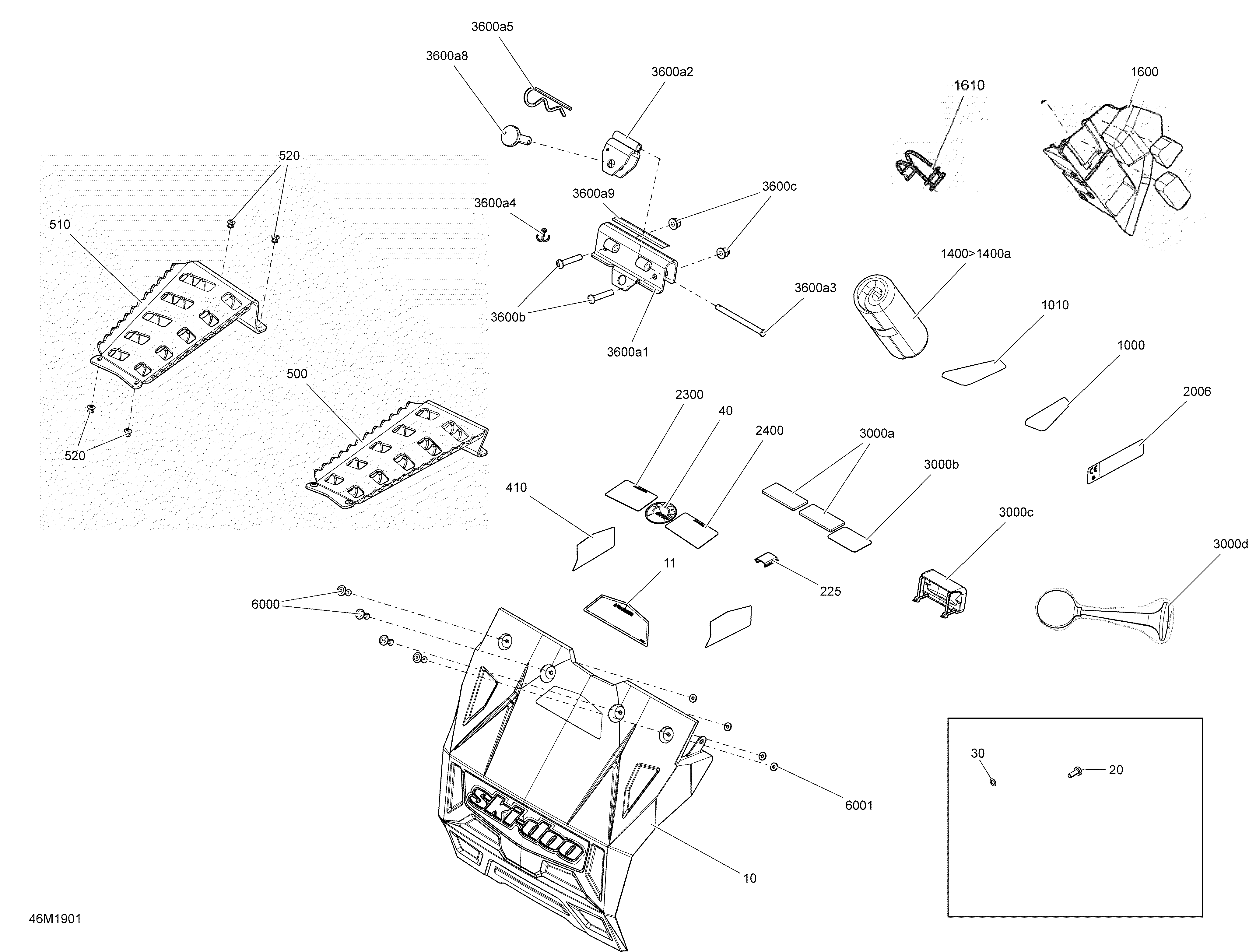

09- Utilities - Package LT - Europe для BRP Ski-Doo 004 - Tundra 600 ACE - 2019
-
№АртикулНазвание
-
10520000949 Snow GuardSnow Guard
-
40516008738 Logo BRP, 48mmLogo BRP, 48mm
-
225520000829 Radiator TrimRadiator Trim
-
400520000883 Yellow, RH Rear ReflectorYellow, RH Rear Reflector
-
410520000882 Yellow, LH Rear ReflectorYellow, LH Rear Reflector
-
1000520000891 Yellow, RH Front ReflectorYellow, RH Front Reflector
-
1010520000892 Yellow, LH Front ReflectorYellow, LH Front Reflector
-
1400520001593 Tools Kit. Includes 1400 to 1400aTools Kit. Includes 1400 to 1400a
-
1400a529000046 Set Key, 16/21 mmSet Key, 16/21 mm
-
1600520000894 Tool Kit RackTool Kit Rack
-
1610520000528 LatchLatch
-
2006516008823 Europe DecalEurope Decal
-
2300516006908 Warning DecalWarning Decal
-
2400516005587 RH Warning Decal, SafetyRH Warning Decal, Safety
-
3000a520000271 Amber, ReflectorAmber, Reflector
-
3000b415037900 White, ReflectorWhite, Reflector
-
3000c520000871 Deep Black, Reflector SupportDeep Black, Reflector Support
-
3000d549011291 HornHorn
-
3400520001893 Operator Guide English. Not ShownOperator Guide English. Not Shown
-
3600a1511000554 SupportSupport
-
3600a2511000588 Hitch PlateHitch Plate
-
3600a3511000520 Clevis PinClevis Pin
-
3600a4371800200 Cotter PinCotter Pin
-
3600a5114045200 Hair PinHair Pin
-
3600a8511000555 PinPin
-
3600a9516004568 Warning Decal, SecurityWarning Decal, Security
-
3600b205484546 Socket Head Screw M8 X 45Socket Head Screw M8 X 45
-
3600c233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
6000293150108 Pop Rivet 3/16”Pop Rivet 3/16”
-
6001517124300 WasherWasher
