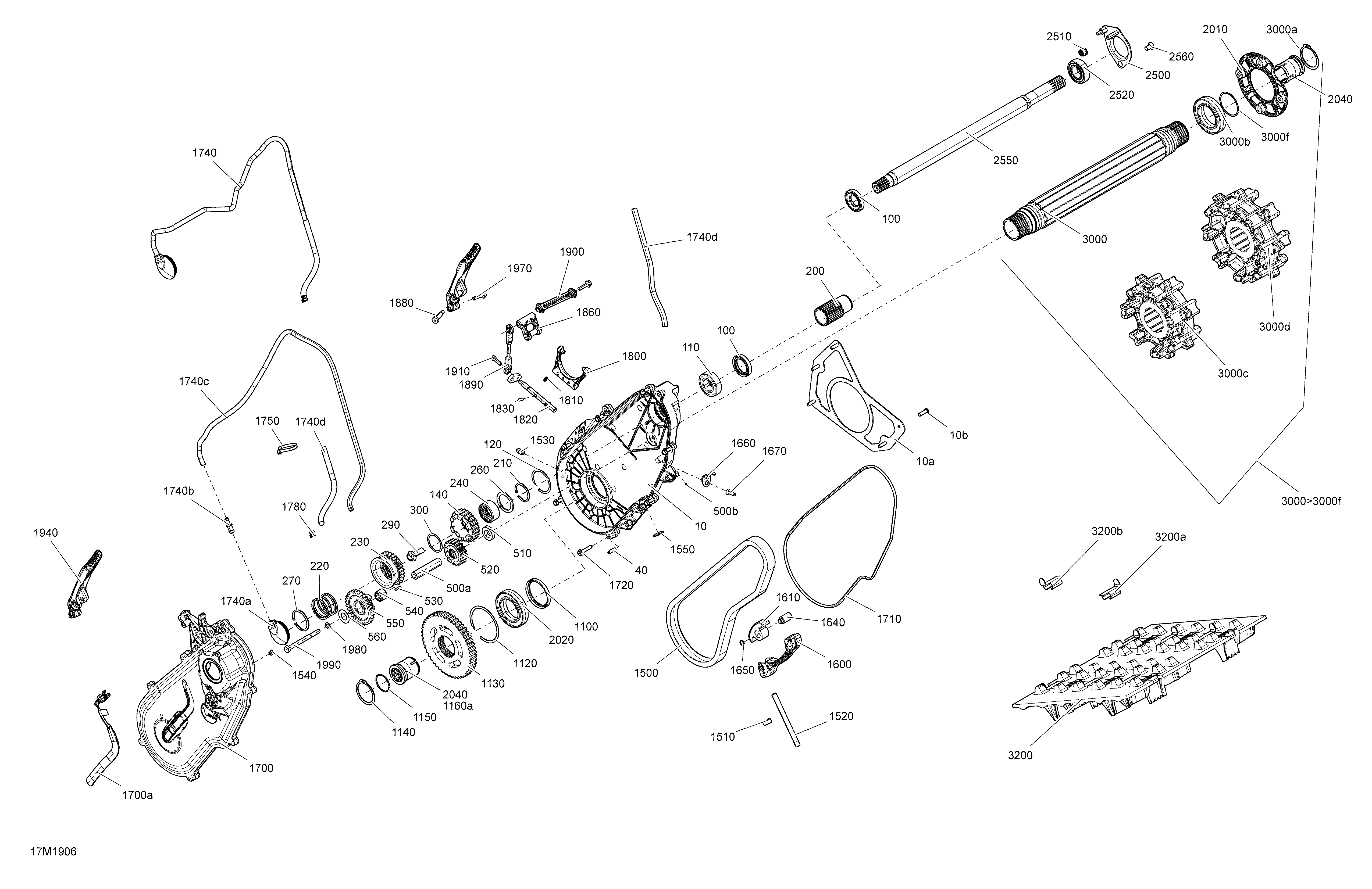

05- Drive - Package Sport для BRP Ski-Doo 004 - Tundra 600 ACE - 2019
-
№АртикулНазвание
-
10504153184 Chaincase. Includes 10 to 10bChaincase. Includes 10 to 10b
-
10a518325816 PlatePlate
-
10b233261434 Flanged Elastic Nut M6Flanged Elastic Nut M6
-
40250400048 Dowel PinDowel Pin
-
100293200168 Oil SealOil Seal
-
110293350115 Ball BearingBall Bearing
-
120504152576 CirclipCirclip
-
140504152927 Sprocket, 21 TeethSprocket, 21 Teeth
-
200504152979 CouplingCoupling
-
210293370054 CirclipCirclip
-
220504153179 Spring ReleaseSpring Release
-
230504152960 Slinding Gear, 27 TeethSlinding Gear, 27 Teeth
-
240293350063 Needle BearingNeedle Bearing
-
260504152689 WasherWasher
-
270293370055 CirclipCirclip
-
290207503046 Hex. Flanged Screw M10 X 30, Scotch GripHex. Flanged Screw M10 X 30, Scotch Grip
-
300504152862 WasherWasher
-
500a504083100 Reverse ShaftReverse Shaft
-
500b250400010 Rolled Pin M3 X 10Rolled Pin M3 X 10
-
510504078700 RingRing
-
520581096900 Sprock Ass'y, 19 Teeth. Includes 520 to 520aSprock Ass'y, 19 Teeth. Includes 520 to 520a
-
520a293350064 Needle BearingNeedle Bearing
-
530570048600 Alignement RodAlignement Rod
-
540293350064 Needle BearingNeedle Bearing
-
550504152724 Sprocket, 29 TeethSprocket, 29 Teeth
-
560504077300 SpacerSpacer
-
1100293200159 Oil SealOil Seal
-
1110293350059 Ball BearingBall Bearing
-
1120504152582 CirclipCirclip
-
1130504152971 Sprocket, 51 TeethSprocket, 51 Teeth
-
1140504152572 CirclipCirclip
-
1150293300122 O-RingO-Ring
-
1160504152619 Magnetic CapMagnetic Cap
-
1500504152630 Drive Chain, 106 LinksDrive Chain, 106 Links
-
1510232006414 Hex. Nut M10 X 1.5Hex. Nut M10 X 1.5
-
1520504152602 Adjustment ScrewAdjustment Screw
-
1530504152636 Magnetic Plug 1/8 - 27 NPTFMagnetic Plug 1/8 - 27 NPTF
-
1540250500012 Allen Drive Plug 1/8-27 PTFAllen Drive Plug 1/8-27 PTF
-
1550250200100 Bonded WasherBonded Washer
-
1600504153431 Chaine TensionnerChaine Tensionner
-
1610504152739 Slider ChainSlider Chain
-
1640504152841 Tensioner AxleTensioner Axle
-
1650504152282 CirclipCirclip
-
1660504153122 Chain SliderChain Slider
-
1670205862044 Socket Head Screw M6 X 20, Scotch GripSocket Head Screw M6 X 20, Scotch Grip
-
1700504153144 Chaincase Cover Ass'y. Includes 1700 to 1700bChaincase Cover Ass'y. Includes 1700 to 1700b
-
1700a504152896 Rotation SensorRotation Sensor
-
1710293300130 Tight SealTight Seal
-
1720250001013 Flanged Hex. Screw M6 X 30Flanged Hex. Screw M6 X 30
-
1740a504152930 CapCap
-
1740b293710035 Straight FittingStraight Fitting
-
1740c415080200 Hose, Polyurethane, iD 5.7mm (10M Roll)Hose, Polyurethane, iD 5.7mm (10M Roll)
-
1740d504153074 Protector TubeProtector Tube
-
1750414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
1800504153432 Fork Ass'yFork Ass'y
-
1810414484400 O-RingO-Ring
-
1820504152956 Welded Axel ForkWelded Axel Fork
-
1830250400045 Spring Pin M5 X 16Spring Pin M5 X 16
-
1860504153427 LeverLever
-
1880250000340 Socket Head Screw M8 X 25, Scotch GripSocket Head Screw M8 X 25, Scotch Grip
-
1890504152951 Ball JointBall Joint
-
1900504152710 Double Ball JointDouble Ball Joint
-
1910205562044 Socket Head Screw M6 X 20, Scotch GripSocket Head Screw M6 X 20, Scotch Grip
-
1920205562044 Socket Head Screw M6 X 20, Scotch GripSocket Head Screw M6 X 20, Scotch Grip
-
1930207562544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
1940504153082 GripGrip
-
1960250000340 Socket Head Screw M8 X 25, Scotch GripSocket Head Screw M8 X 25, Scotch Grip
-
1970207562544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
1980504082900 WasherWasher
-
1990207089044 Hex. Screw M8 X 90Hex. Screw M8 X 90
-
2030293300122 O-RingO-Ring
-
2040504152619 Magnetic CapMagnetic Cap
-
2050504152572 CirclipCirclip
-
2500504153187 Bearing HousingBearing Housing
-
2510233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
2520293350074 Ball BearingBall Bearing
-
2550504153000 CountershaftCountershaft
-
2560235381646 Torx Screw M8 X 16, Scotch GripTorx Screw M8 X 16, Scotch Grip
-
3000504153083 Drive Axle Ass'y. Includes 3000 to 3000dDrive Axle Ass'y. Includes 3000 to 3000d
-
3000a504153426 Retaining RingRetaining Ring
-
3000b293350059 Ball BearingBall Bearing
-
3000c504153880 Sprocket, 8 TeethSprocket, 8 Teeth
-
3000d504153881 Sprocket, 8 TeethSprocket, 8 Teeth
-
3200504152907 Track Ass'y, 16X137X1.2C. Includes 3200 to 3200bTrack Ass'y, 16X137X1.2C. Includes 3200 to 3200b
-
3200a415129528 Track GuideTrack Guide
-
3200b504152651 CleatCleat
