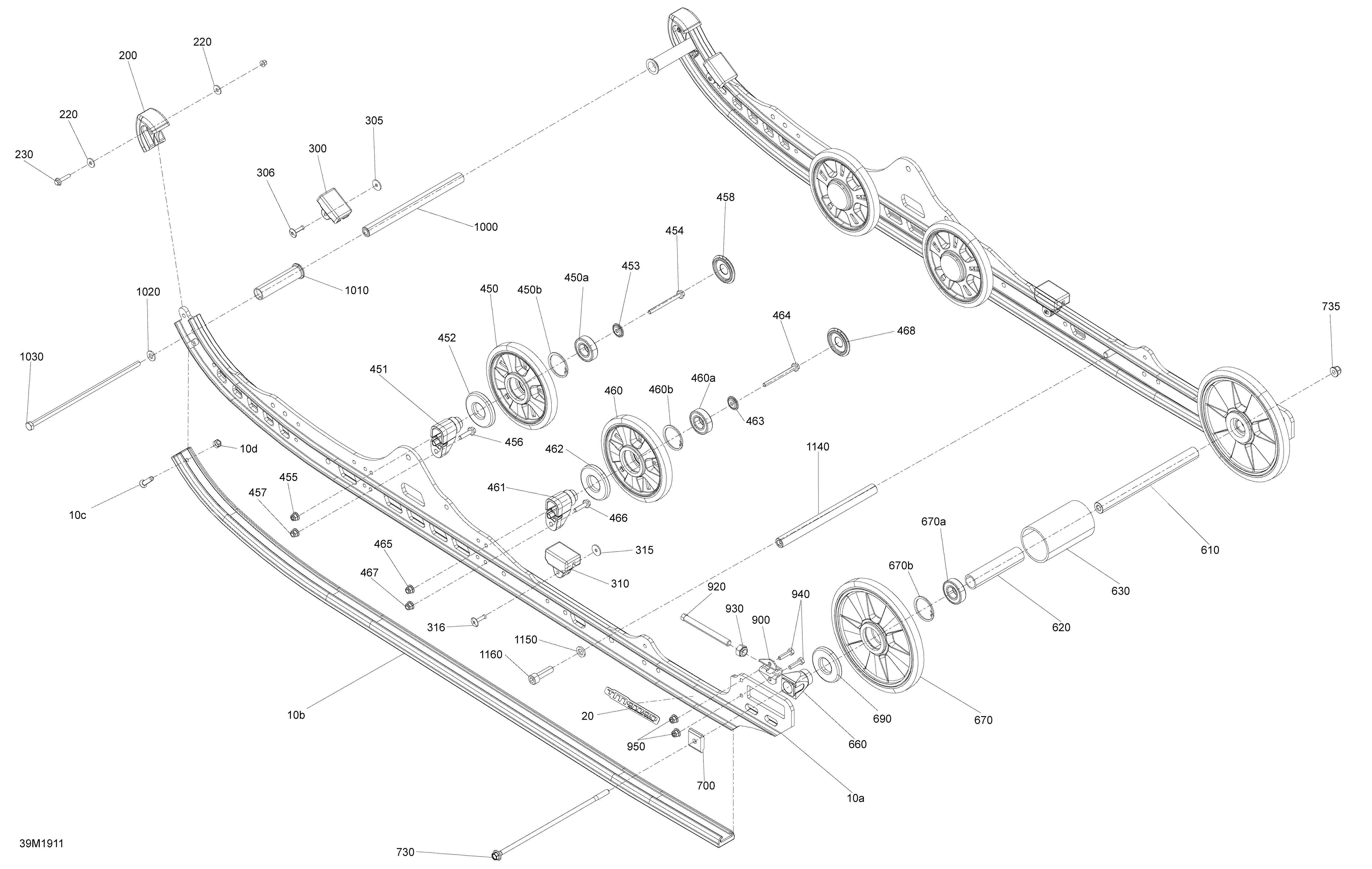

08- Rear Suspension - Lower Section для BRP Ski-Doo 001 - SUMMIT 600 CARB - 2019
-
№АртикулНазвание
-
10a503193345 Bare Aluminum Runner 146''Bare Aluminum Runner 146''
-
10b503191499 Black Slider Shoe 146''Black Slider Shoe 146''
-
10c208562531 Phillips Screw M6 X 25Phillips Screw M6 X 25
-
10d232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
20516006381 Runner DecalRunner Decal
-
200503192299 Runner ProtectorRunner Protector
-
220250200140 WasherWasher
-
230207652544 Hex. Flanged Screw M5 X 25Hex. Flanged Screw M5 X 25
-
300503190576 Rubber StopperRubber Stopper
-
305503191273 WasherWasher
-
306293150224 Rivet Pop 3/16Rivet Pop 3/16
-
310503193504 Rubber StopperRubber Stopper
-
315503191273 WasherWasher
-
316293150224 Rivet Pop 3/16Rivet Pop 3/16
-
450503191755 Black Wheel Ass'y, 152 mm. Includes 450 to 450bBlack Wheel Ass'y, 152 mm. Includes 450 to 450b
-
450a503190396 Ball BearingBall Bearing
-
450b415129371 Retaining RingRetaining Ring
-
451503193894 Casted SupportCasted Support
-
452503190434 Labyrinth SealLabyrinth Seal
-
453503191820 Wheel Cup M6Wheel Cup M6
-
454250000944 Hex. Flange Screw M6 X 70Hex. Flange Screw M6 X 70
-
455233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
456250000945 Hex. Flange Screw M6 X 25Hex. Flange Screw M6 X 25
-
457233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
458503192771 Black, Wheel CapBlack, Wheel Cap
-
460503191755 Black Wheel Ass'y, 152 mm. Includes 460 to 460bBlack Wheel Ass'y, 152 mm. Includes 460 to 460b
-
460a503190396 Ball BearingBall Bearing
-
460b415129371 Retaining RingRetaining Ring
-
461503193894 Casted SupportCasted Support
-
462503190434 Labyrinth SealLabyrinth Seal
-
463503191820 Wheel Cup M6Wheel Cup M6
-
464250000944 Hex. Flange Screw M6 X 70Hex. Flange Screw M6 X 70
-
465233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
466250000945 Hex. Flange Screw M6 X 25Hex. Flange Screw M6 X 25
-
467233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
468503192771 Black, Wheel CapBlack, Wheel Cap
-
610503194200 Rear AxleRear Axle
-
620503191263 Rear SpacerRear Spacer
-
630503193097 BushingBushing
-
660503190428 Rear Wheel SpacerRear Wheel Spacer
-
670503193098 Black, Wheel Ass'y 200 mm. Includes 670 to 670bBlack, Wheel Ass'y 200 mm. Includes 670 to 670b
-
670a503190396 Ball BearingBall Bearing
-
670b415129371 Retaining RingRetaining Ring
-
690503190434 Labyrinth SealLabyrinth Seal
-
700503194412 Axle SliderAxle Slider
-
730503194265 BoltBolt
-
735233281466 Elastic Flang Nut M8Elastic Flang Nut M8
-
900503192583 TensionerTensioner
-
920230100054 Hex Screw M10 x 100Hex Screw M10 x 100
-
930233601466 Elastic Locking Nut M10Elastic Locking Nut M10
-
940207562054 Flanged Hex. Screw S.GRIP M6 X 20Flanged Hex. Screw S.GRIP M6 X 20
-
950233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
1000503194845 AxleAxle
-
1010503191259 Center BushingCenter Bushing
-
1020503192494 WasherWasher
-
1030503192440 Bolt M8 X 248mmBolt M8 X 248mm
-
1140503191260 Axle StrapAxle Strap
-
1150503192496 WasherWasher
-
1160205503554 Socket Head Screw M10 X 35Socket Head Screw M10 X 35
