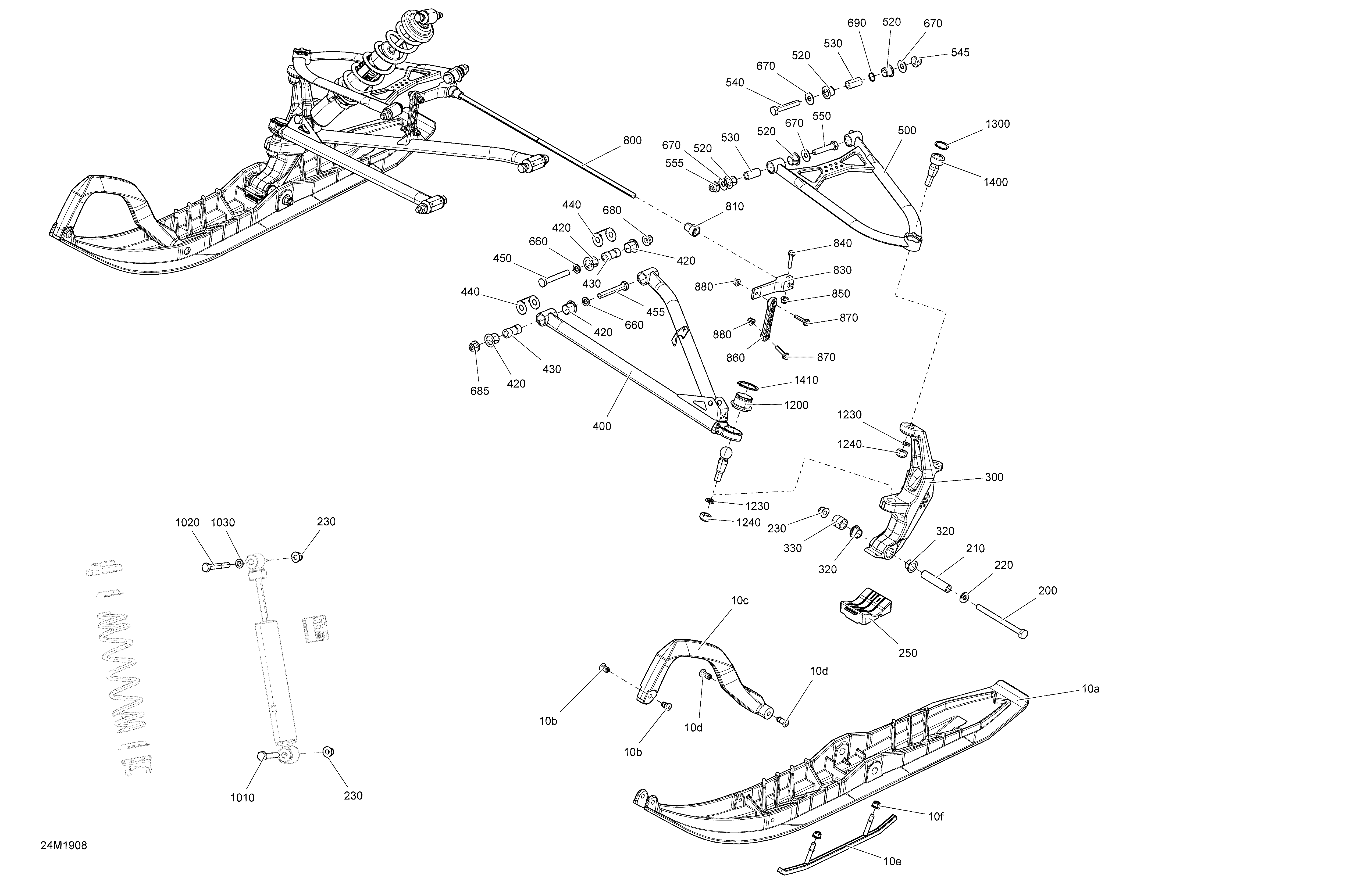

07- Front Suspension And Ski - 600 CARB для BRP Ski-Doo 001 - SUMMIT 600 CARB - 2019
-
№АртикулНазвание
-
10a505073227 Black, DS 2 SkiBlack, DS 2 Ski
-
10b505071812 Retainer 17mm longRetainer 17mm long
-
10c505072976 Black, HandleBlack, Handle
-
10d505072133 Retainer 23mm LongRetainer 23mm Long
-
10e860201044 Carbide Runner Kit (Square Runner)Carbide Runner Kit (Square Runner)
-
10f233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
200250000703 Hex. Screw M10 X 130Hex. Screw M10 X 130
-
210506133300 SpacerSpacer
-
220732900049 WasherWasher
-
230233201414 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
250505074138 Ski StopperSki Stopper
-
300505073557 Clear, LH Ski LegClear, LH Ski Leg
-
300505073558 Clear, RH Ski LegClear, RH Ski Leg
-
320505072690 Leg BushingLeg Bushing
-
330503193651 SpacerSpacer
-
400505073040 Black, Lower Arm RHBlack, Lower Arm RH
-
400505073039 Black, LH Lower ArmBlack, LH Lower Arm
-
420505072208 BushingBushing
-
430505072209 SleeveSleeve
-
440505072634 Wear PlateWear Plate
-
450250001024 Screw Hex. M10 X 70Screw Hex. M10 X 70
-
455250001024 Screw Hex. M10 X 70Screw Hex. M10 X 70
-
500505073466 Black Upper Arm LH 36''Black Upper Arm LH 36''
-
500505073467 Black Upper Arm RH 36''Black Upper Arm RH 36''
-
520505072250 BushingBushing
-
530505072143 SleeveSleeve
-
540250001023 Screw Hex. M10 X 60Screw Hex. M10 X 60
-
545250100165 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
550250001022 Screw Hex. M10 X 50Screw Hex. M10 X 50
-
555250100165 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
660503189564 WasherWasher
-
670505072392 WasherWasher
-
680250100165 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
685250100165 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
690505072448 O-RingO-Ring
-
800505073609 StabilisatorStabilisator
-
810505072786 BushingBushing
-
830505073176 Stabilisator LeverStabilisator Lever
-
840207663056 Hex Flanged Screw M6 X 1.0 X 30Hex Flanged Screw M6 X 1.0 X 30
-
850233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
860505073172 Double Ball Joint LinkDouble Ball Joint Link
-
870207663056 Hex Flanged Screw M6 X 1.0 X 30Hex Flanged Screw M6 X 1.0 X 30
-
880233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
1010207005554 Hex Screw M10 X 1.5 X 55Hex Screw M10 X 1.5 X 55
-
1020207006544 Hex. Screw M10 X 1.5 X 65Hex. Screw M10 X 1.5 X 65
-
1030503189564 WasherWasher
-
1200505073636 Ball JointBall Joint
-
1230503192491 WasherWasher
-
1240232521464 Hex Elastic Nut M12 X 1.25Hex Elastic Nut M12 X 1.25
-
1300293370070 CirclipCirclip
-
1400505072913 Upper Ball JointUpper Ball Joint
-
1410293370035 CirclipCirclip
