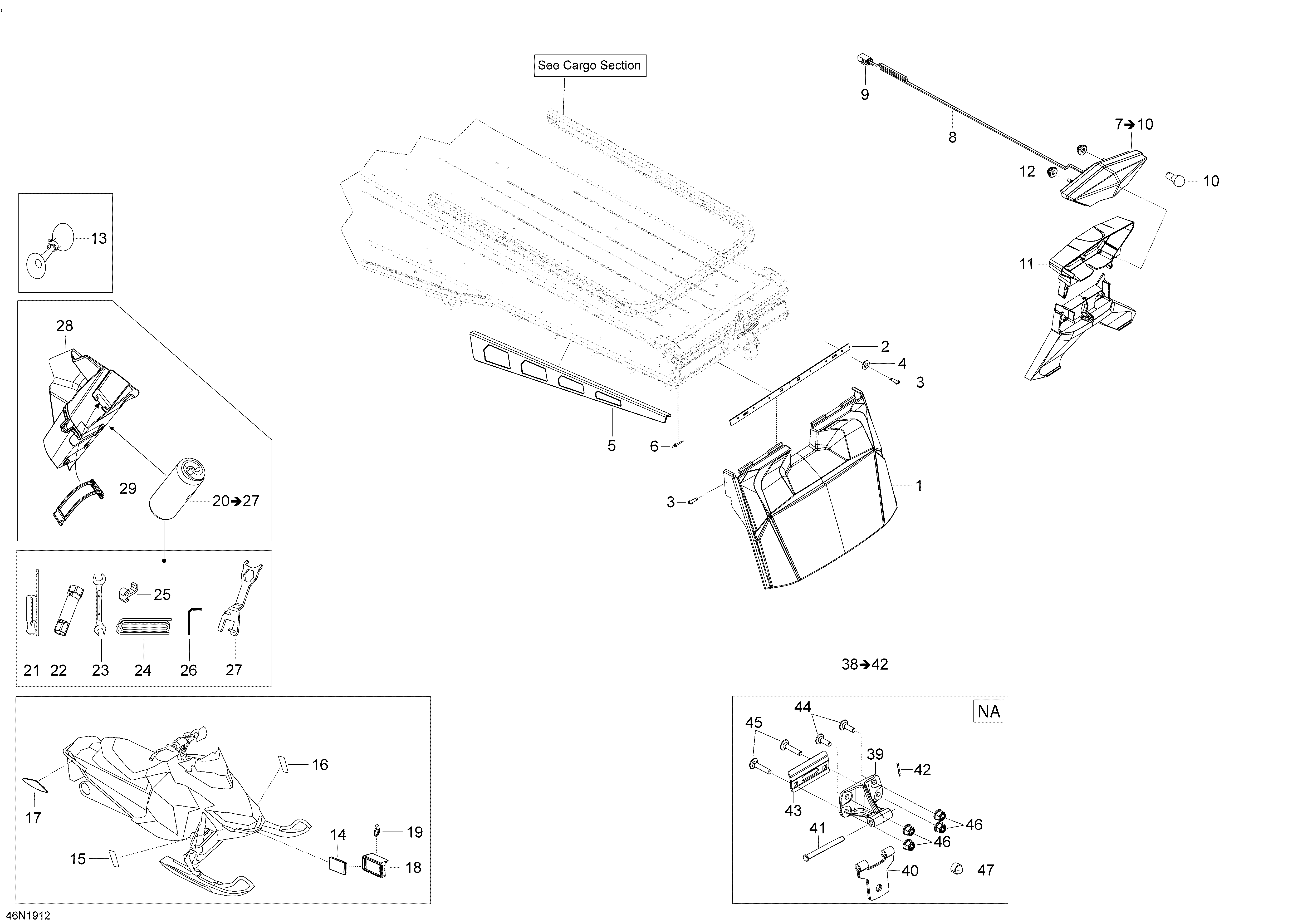

09- Utilities - 600HO E-TEC для BRP Ski-Doo 006 - Skandic SWT 600HO E-TEC - 2019

  • №
    Артикул
    Название
  • 1
    520001405 Black, Snow Guard Short. Package WT
    Black, Snow Guard Short. Package WT
  • 1
    520001409 Black, Snow Guard long. Package SWT
    Black, Snow Guard long. Package SWT
  • 2
    520001021 Plate. Package WT
    Plate. Package WT
  • 2
    520001022 Plate. Package SWT
    Plate. Package SWT
  • 3
    250000676 Forming Screw M5 x 16
    Forming Screw M5 x 16
  • 4
    250200025 Washer M5
    Washer M5
  • 5
    520000693 RH Protector
    RH Protector
  • 5
    520000694 LH Protector
    LH Protector
  • 6
    293150163 Rivet Hucklok
    Rivet Hucklok
  • 7
    520000848 Rear Light. Includes 7 to 9
    Rear Light. Includes 7 to 9
  • 8
    520000677 Wiring Harness Ass'y
    Wiring Harness Ass'y
  • 9
    520000758 Bulb
    Bulb
  • 11
    511000764 Rear Light Cover
    Rear Light Cover
  • 12
    705003666 Rubber Grommet
    Rubber Grommet
  • 15
    520001600 Yellow RH Reflector
    Yellow RH Reflector
  • 16
    520001601 Yellow LH Reflector
    Yellow LH Reflector
  • 17
    705003412 Lateral Reflector, Red
    Lateral Reflector, Red
  • 20
    529000077 Tool Kit
    Tool Kit
  • 28
    520000894 Tool Kit Rack
    Tool Kit Rack
  • 29
    520000528 Latch
    Latch
  • 38
    520001398 Hitch Ass'y. Includes 38 to 42
    Hitch Ass'y. Includes 38 to 42
  • 42
    41031 Cotter Pin
    Cotter Pin
  • 43
    520000727 Plate
    Plate
  • 44
    207782544 Carriage Bolt, M8 X 25
    Carriage Bolt, M8 X 25
  • 45
    207784044 Bolt Carriage M8 X 40
    Bolt Carriage M8 X 40
  • 46
    233281414 Hex. Flanged Elastic Nut M8
    Hex. Flanged Elastic Nut M8
  • 47
    28056 Cover
    Cover
  • 60
    520001766 Support Tape. Not Shown
    Support Tape. Not Shown
  • 70
    619900949 Guide Skandic WT/SWT EN. Not Shown
    Guide Skandic WT/SWT EN. Not Shown
