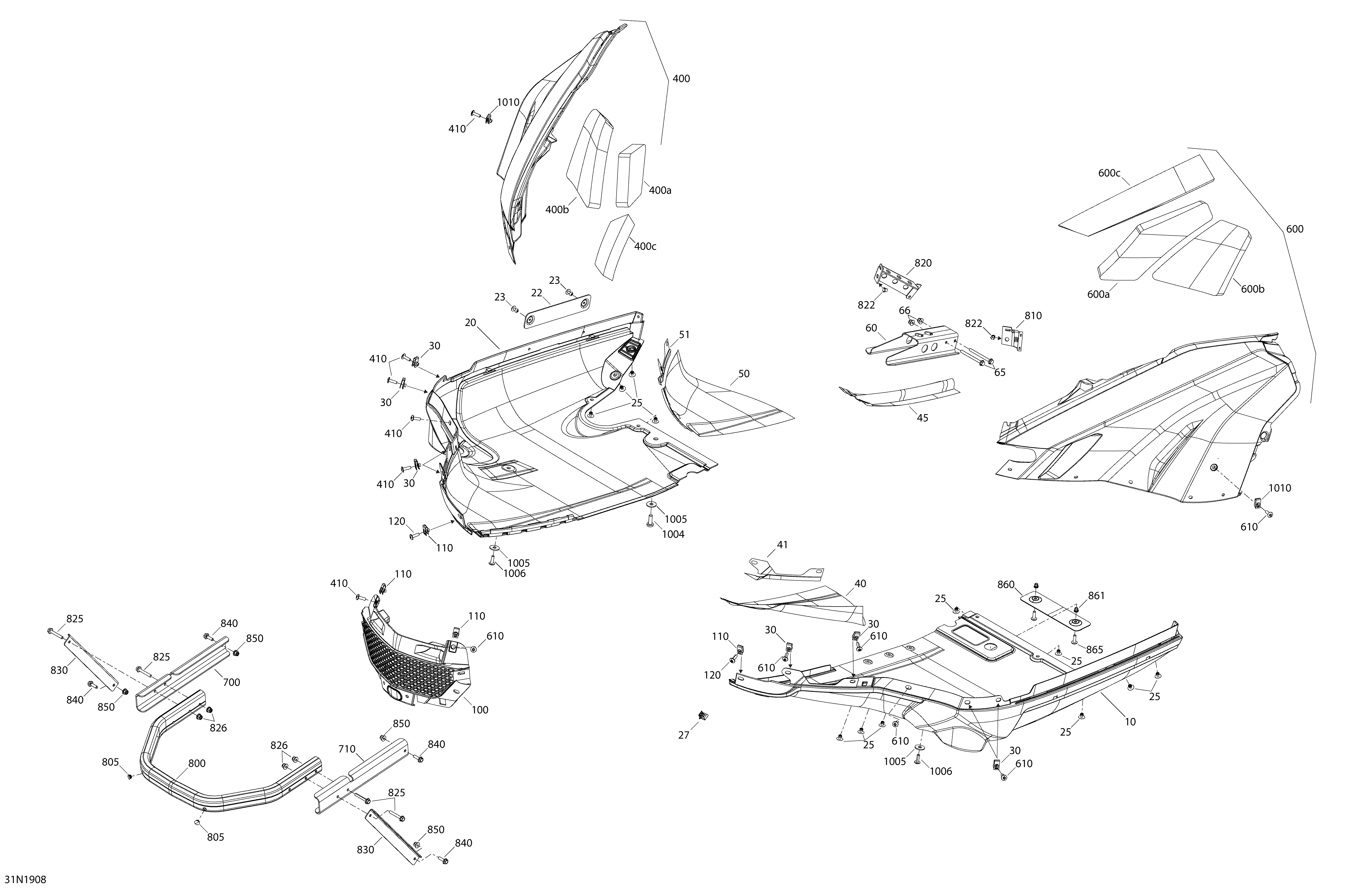

09- Bottom Pan - 600HO E-TEC - Package SWT для BRP Ski-Doo 006 - Skandic SWT 600HO E-TEC - 2019

  • №
    Артикул
    Название
  • 10
    502007836 LH Lower Bottom Pan
    LH Lower Bottom Pan
  • 20
    502007837 RH Lower Bottom Pan
    RH Lower Bottom Pan
  • 22
    502007255 Heat Isolation Plate
    Heat Isolation Plate
  • 23
    293150211 Rivet
    Rivet
  • 25
    293150104 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 27
    517302785 Edge Clip
    Edge Clip
  • 30
    250000957 Extruded Panel Nut M6
    Extruded Panel Nut M6
  • 40
    508000918 Heat Shield
    Heat Shield
  • 41
    508000919 Heat Shield
    Heat Shield
  • 45
    508000920 Heat Shield
    Heat Shield
  • 50
    508000921 Heat Shield
    Heat Shield
  • 51
    508000922 Heat Shield
    Heat Shield
  • 60
    502007688 Support
    Support
  • 65
    207667056 Hex. Flange Screw M6 X 70
    Hex. Flange Screw M6 X 70
  • 66
    233261414 Hex. Flanged Elastic Nut M6 x 1.0
    Hex. Flanged Elastic Nut M6 x 1.0
  • 100
    502007140 Front Grill
    Front Grill
  • 110
    250000957 Extruded Panel Nut M6
    Extruded Panel Nut M6
  • 120
    250000722 Torx Screw M6 X 20
    Torx Screw M6 X 20
  • 400
    502008015 Deep Black, Bottom Pan RH
    Deep Black, Bottom Pan RH
  • 400a
    502007133 Insulator
    Insulator
  • 400b
    502007132 Insulator
    Insulator
  • 400c
    502007009 Insulator
    Insulator
  • 410
    250000722 Torx Screw M6 X 20
    Torx Screw M6 X 20
  • 600
    502008017 Deep Black, Bottom Pan LH
    Deep Black, Bottom Pan LH
  • 600a
    502007088 Insulator
    Insulator
  • 600b
    502007131 Insulator
    Insulator
  • 600c
    502007185 Insulator
    Insulator
  • 610
    250000722 Torx Screw M6 X 20
    Torx Screw M6 X 20
  • 700
    502007379 RH Bumper Support
    RH Bumper Support
  • 710
    502007380 LH Bumper Support
    LH Bumper Support
  • 800
    502007381 Bumper
    Bumper
  • 805
    293730041 Full Moon Dart 8 mm
    Full Moon Dart 8 mm
  • 810
    502007535 LH Bottom Pan Fastener
    LH Bottom Pan Fastener
  • 820
    502007536 RH Bottom Pan Fastener
    RH Bottom Pan Fastener
  • 822
    605636003 Clinch Nut M6 Hexsert
    Clinch Nut M6 Hexsert
  • 825
    207664044 Hex. Flanged Screw M6 X 40
    Hex. Flanged Screw M6 X 40
  • 826
    233261414 Hex. Flanged Elastic Nut M6 x 1.0
    Hex. Flanged Elastic Nut M6 x 1.0
  • 830
    502007382 Bumper Support SWT
    Bumper Support SWT
  • 840
    207662044 Hex. Flanged Screw M6 X 20
    Hex. Flanged Screw M6 X 20
  • 850
    233261414 Hex. Flanged Elastic Nut M6 x 1.0
    Hex. Flanged Elastic Nut M6 x 1.0
  • 860
    518328879 Oil Plate
    Oil Plate
  • 861
    605636003 Clinch Nut M6 Hexsert
    Clinch Nut M6 Hexsert
  • 865
    250000722 Torx Screw M6 X 20
    Torx Screw M6 X 20
  • 1004
    250000752 Torx Screw M8 X 1.25 X 25, Scotch Grip
    Torx Screw M8 X 1.25 X 25, Scotch Grip
  • 1005
    234082410 Flat Washer 8 mm
    Flat Washer 8 mm
  • 1006
    250000722 Torx Screw M6 X 20
    Torx Screw M6 X 20
  • 1010
    250000957 Extruded Panel Nut M6
    Extruded Panel Nut M6
