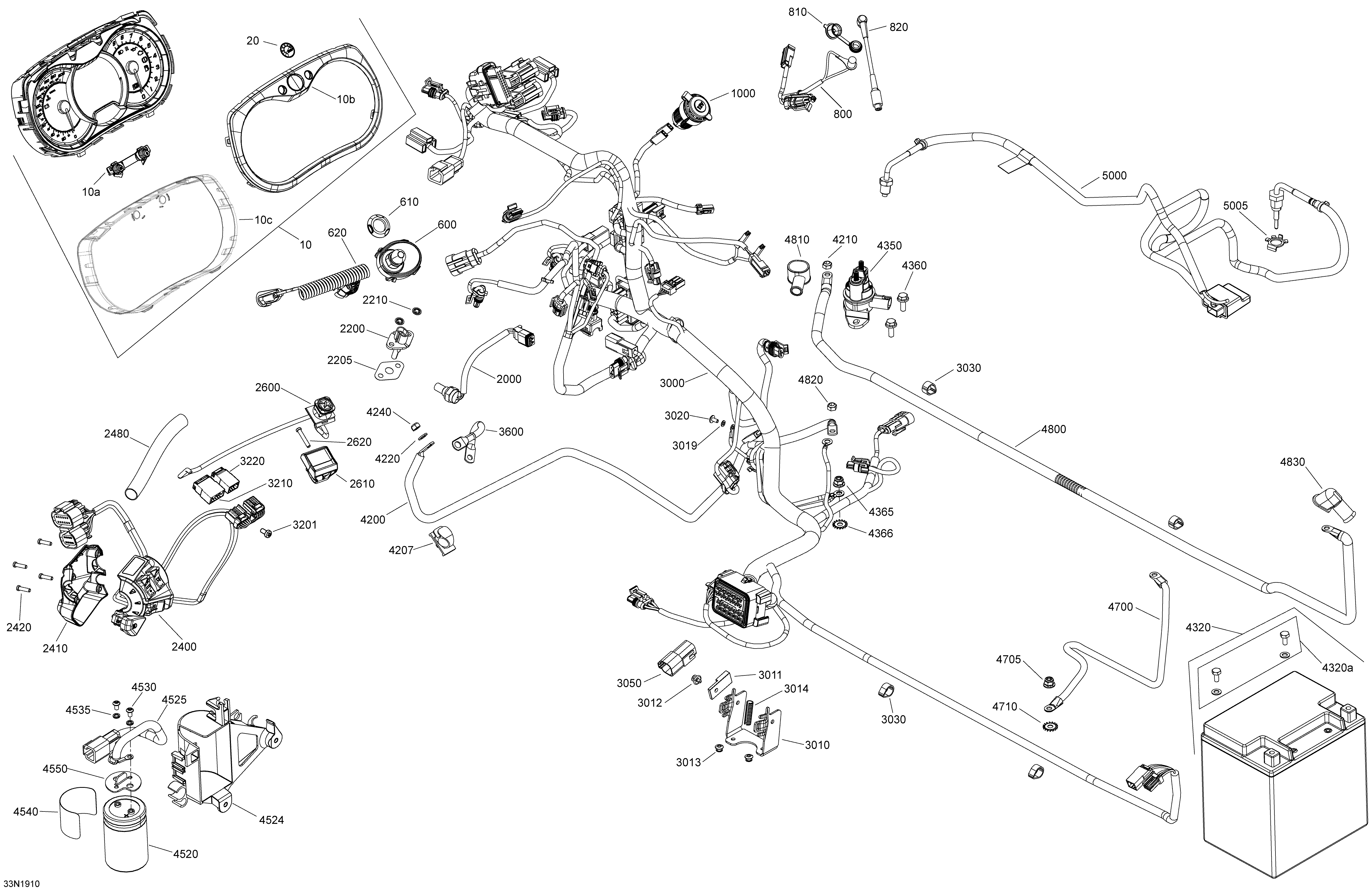

10- Electrical - 600HO E-TEC для BRP Ski-Doo 002 - Skandic WT 600HO E-TEC - 2019
-
№АртикулНазвание
-
10515177914 Speedometer. Includes 10 to 10cSpeedometer. Includes 10 to 10c
-
10a415129355 Speedometer ButtonSpeedometer Button
-
10b415129370 Gauge RingGauge Ring
-
10c415129349 LensLens
-
20516006224 BRP Logo, 20 mmBRP Logo, 20 mm
-
600515178225 DESS Switch, RFIDDESS Switch, RFID
-
610278002963 Safety Nut (DESS Switch)Safety Nut (DESS Switch)
-
620515178286 Grey - RF Key Ass'yGrey - RF Key Ass'y
-
800515177837 Visor HarnessVisor Harness
-
810572103300 CapCap
-
820515175851 ExtensionExtension
-
1000710001248 Outlet DCOutlet DC
-
2000515177813 Temperature SensorTemperature Sensor
-
2200515176366 Air Temperature SensorAir Temperature Sensor
-
2205508000769 SealSeal
-
2210389804300 Push NutPush Nut
-
2400515178198 LH HousingLH Housing
-
2410515177147 Housing PlateHousing Plate
-
2420250000671 Torx ScrewTorx Screw
-
2480415129879 Protector TubeProtector Tube
-
2600515177362 Emergency Stop SwitchEmergency Stop Switch
-
2610515177310 Emergency Stop Switch SupportEmergency Stop Switch Support
-
2620250000263 Torx Screw #8-18Torx Screw #8-18
-
3000515178129 Main HarnessMain Harness
-
3010515177925 Fusebox SupportFusebox Support
-
3011270000141 ClipClip
-
3012293150037 Avdel Rivet 3/16''Avdel Rivet 3/16''
-
3013390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
3014515175442 Tubing 6 mmTubing 6 mm
-
3015293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
3019234141601 Lock Washer 4 mmLock Washer 4 mm
-
3020250000741 Screw-Torx Button Head M4 X 8Screw-Torx Button Head M4 X 8
-
3030293740059 VelcroVelcro
-
3050710004904 Connector PlugConnector Plug
-
3201250000690 Pan Screw Forming, 7500CPan Screw Forming, 7500C
-
3210515175662 Male Terminal Housing, 6 CircuitsMale Terminal Housing, 6 Circuits
-
3220515175846 Male Terminal Housing, 4 CircuitsMale Terminal Housing, 4 Circuits
-
3250415129879 Protector TubeProtector Tube
-
3600515176861 Ground WireGround Wire
-
4200515176806 Start CableStart Cable
-
4207515176795 Tie Rap Mount (screwable)Tie Rap Mount (screwable)
-
4210232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
4220234061410 Flat Washer 6 mmFlat Washer 6 mm
-
4240232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
4320410301203 Battery Ass'y, 18 Amperes. Includes 4320 to 4320aBattery Ass'y, 18 Amperes. Includes 4320 to 4320a
-
4320a250000282 Battery Bolt KitBattery Bolt Kit
-
4350278003012 Starter RelayStarter Relay
-
4360207561644 Hex.Fla. Screw M6 X 16, Scotch GripHex.Fla. Screw M6 X 16, Scotch Grip
-
4365233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
4366250200041 Lock Washer Serrated M6Lock Washer Serrated M6
-
4520515177272 CapacitorCapacitor
-
4524515176607 Capacitor SupportCapacitor Support
-
4525515176605 Capacitor HarnessCapacitor Harness
-
4530250000462 Socket Head Screw M10 X 32Socket Head Screw M10 X 32
-
4535250200026 Lock washerLock washer
-
4540516006206 Capacitor DecalCapacitor Decal
-
4550515177193 CapCap
-
4700515176780 Ground WireGround Wire
-
4705233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
4710250200041 Lock Washer Serrated M6Lock Washer Serrated M6
-
4800515176805 Battery CableBattery Cable
-
4810570151000 Protection CapProtection Cap
-
4820232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
4830710000495 Protector CapProtector Cap
