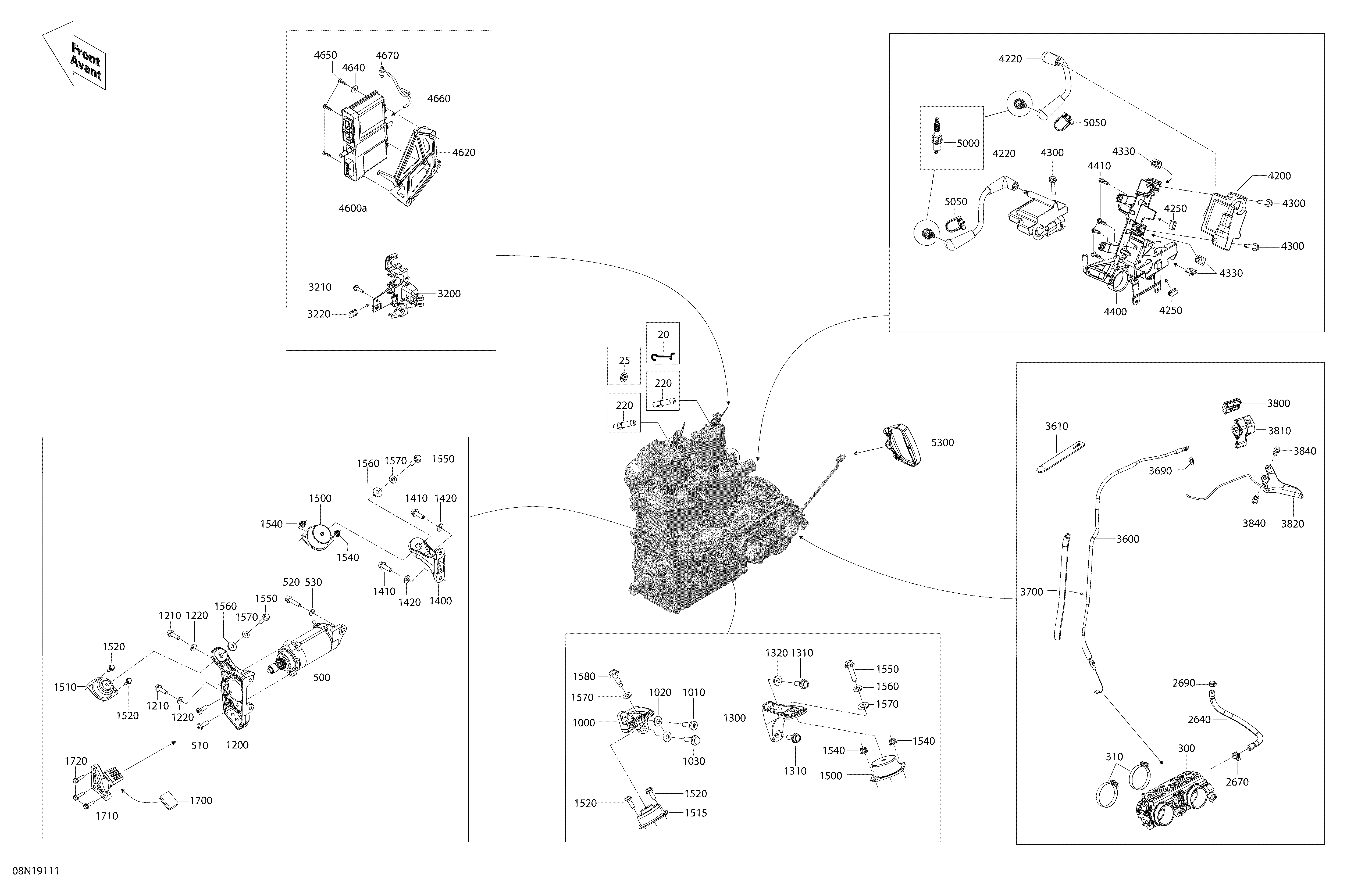

01- Engine - 600HO E-TEC для BRP Ski-Doo 002 - Skandic WT 600HO E-TEC - 2019
-
№АртикулНазвание
-
20515177770 LockerLocker
-
25732610072 Push NutPush Nut
-
220420924724 Hose NippleHose Nipple
-
300420889201 Throttle BodyThrottle Body
-
310293650158 Gemi ClampGemi Clamp
-
500515177389 StarterStarter
-
510250000752 Torx Screw M8 X 1.25 X 25, Scotch GripTorx Screw M8 X 1.25 X 25, Scotch Grip
-
520207583544 Hex Flanged Screw M8 X 35, Scotch GripHex Flanged Screw M8 X 35, Scotch Grip
-
530250200008 Flat Washer With Teflon 8 mmFlat Washer With Teflon 8 mm
-
1000512060478 Rear Support, PTORear Support, PTO
-
1010250000752 Torx Screw M8 X 1.25 X 25, Scotch GripTorx Screw M8 X 1.25 X 25, Scotch Grip
-
1020250200146 Conical Spring Washer M8Conical Spring Washer M8
-
1030207582586 Hex. Flanged Screw M8 X 25, Scotch GripHex. Flanged Screw M8 X 25, Scotch Grip
-
1200512060699 Front Support, PTOFront Support, PTO
-
1210207582586 Hex. Flanged Screw M8 X 25, Scotch GripHex. Flanged Screw M8 X 25, Scotch Grip
-
1220234281474 Conical Spring Washer M8Conical Spring Washer M8
-
1300512060559 Rear Support, MAGRear Support, MAG
-
1310207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
1320234281474 Conical Spring Washer M8Conical Spring Washer M8
-
1400512060469 Front Support, MAGFront Support, MAG
-
1410207582586 Hex. Flanged Screw M8 X 25, Scotch GripHex. Flanged Screw M8 X 25, Scotch Grip
-
1420234281474 Conical Spring Washer M8Conical Spring Washer M8
-
1500512060729 Rubber MountRubber Mount
-
1510512060387 Rubber MountRubber Mount
-
1515512060448 Rubber MountRubber Mount
-
1520207561644 Hex.Fla. Screw M6 X 16, Scotch GripHex.Fla. Screw M6 X 16, Scotch Grip
-
1540233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
1550207683044 Hex. Flanged Screw M8 X 30Hex. Flanged Screw M8 X 30
-
1560503183200 Washer, YellowWasher, Yellow
-
1570234281474 Conical Spring Washer M8Conical Spring Washer M8
-
1580250000796 Hex. Flanged Screw M8 X 1.25 X 25Hex. Flanged Screw M8 X 1.25 X 25
-
1700512060627 StopperStopper
-
1710512060576 Stopper SupportStopper Support
-
1720207562544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
2640512060944 Bleeder's Collector Outlet HoseBleeder's Collector Outlet Hose
-
2670293650172 Tridon Gear ClampTridon Gear Clamp
-
2690293650046 Oetiker ClampOetiker Clamp
-
3200512060298 Solenoid SupportSolenoid Support
-
3210207652044 Flanged Hex. Screw M5 X 20Flanged Hex. Screw M5 X 20
-
3220250000958 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
3600512060633 Throttle CableThrottle Cable
-
3610293850117 Rubber StrapRubber Strap
-
3690414274500 CirclipCirclip
-
3700409901700 Tubing 9 mmTubing 9 mm
-
3800512060859 Upper HousingUpper Housing
-
3810512060860 Lower HousingLower Housing
-
3820512061250 Handle Ass'yHandle Ass'y
-
3840732601143 Flanged ScrewFlanged Screw
-
4200512060953 Ignition CoilIgnition Coil
-
4220512061126 Ignition Cable, 177mm longIgnition Cable, 177mm long
-
4250710000992 ClipClip
-
4300250000253 Flanged Hex. Screw M6 X 1.0 X 30Flanged Hex. Screw M6 X 1.0 X 30
-
4330293100003 Nut Welded, M6Nut Welded, M6
-
4400512060888 Ignition Coils SupportIgnition Coils Support
-
4410241151640 Hex. Flanged Screw K50 X 2.24 X 16Hex. Flanged Screw K50 X 2.24 X 16
-
4600a512060780 Calibrated ModuleCalibrated Module
-
4620512060858 Calibrated Module SupportCalibrated Module Support
-
4640250200040 Flat WasherFlat Washer
-
4650250000760 Torx Screw Truss Head K50X20 T20Torx Screw Truss Head K50X20 T20
-
4660415080100 Line-Primer, iD 3.7mmLine-Primer, iD 3.7mm
-
4670414814100 Male ConnectorMale Connector
-
5000415129375 Spark Plug NGK PZFR6FSpark Plug NGK PZFR6F
-
5050512060993 ClampClamp
-
5300512060136 Starter Grip. Package LTDStarter Grip. Package LTD
