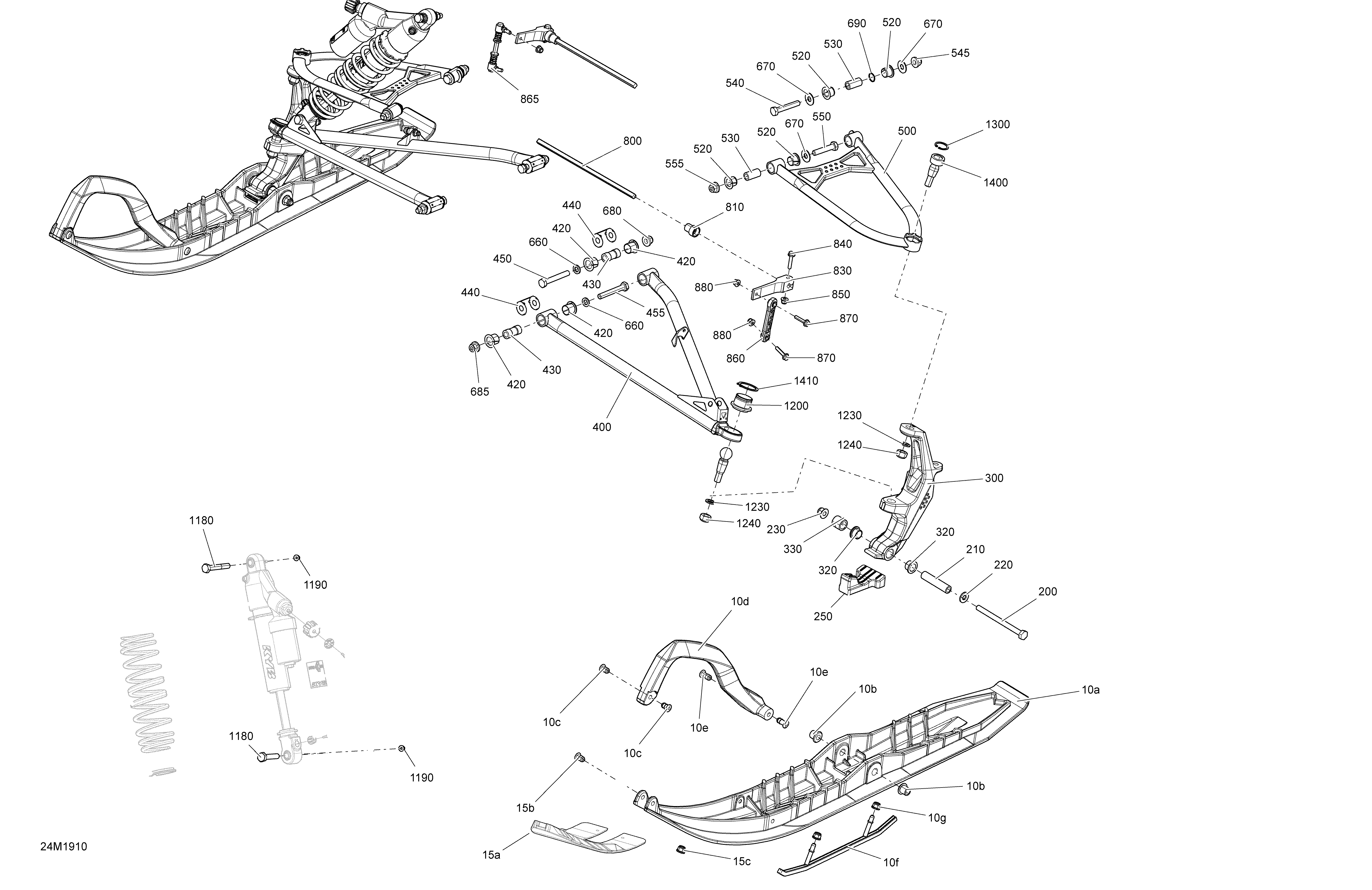

07- Front Suspension And Ski - Packages 154 & 165 для BRP Ski-Doo 003 - FREERIDE 154 850 E-TEC - 2019

  • №
    Артикул
    Название
  • 10a
    505074135 Black, DS3 Ski. Includes 10a to 10b
    Black, DS3 Ski. Includes 10a to 10b
  • 10b
    505071781 Ski Bushing
    Ski Bushing
  • 10c
    505071812 Retainer 17mm long
    Retainer 17mm long
  • 10d
    505073388 Red, Handle
    Red, Handle
  • 10e
    505072133 Retainer 23mm Long
    Retainer 23mm Long
  • 10f
    860201044 Carbide Runner Kit (Square Runner)
    Carbide Runner Kit (Square Runner)
  • 10g
    233281414 Hex. Flanged Elastic Nut M8
    Hex. Flanged Elastic Nut M8
  • 15a
    505073784 Ski Tip
    Ski Tip
  • 15b
    250000770 Hex. Socket Screw M6 X 20
    Hex. Socket Screw M6 X 20
  • 15c
    233261466 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 200
    250000703 Hex. Screw M10 X 130
    Hex. Screw M10 X 130
  • 210
    505073691 Ski Axle
    Ski Axle
  • 220
    732900049 Washer
    Washer
  • 230
    233201414 Hex. Flanged Elastic Nut M10
    Hex. Flanged Elastic Nut M10
  • 250
    505074138 Ski Stopper
    Ski Stopper
  • 300
    505074480 Can-Am Red, LH Ski Leg. Except Hill Climb Edition & Ski Stance 38''
    Can-Am Red, LH Ski Leg. Except Hill Climb Edition & Ski Stance 38''
  • 300
    505074488 Can-Am Red, LH Ski Leg. Package Ski Stance 38''
    Can-Am Red, LH Ski Leg. Package Ski Stance 38''
  • 300
    505074533 Can-Am Red, LH Ski Leg. Hill Climb Edition
    Can-Am Red, LH Ski Leg. Hill Climb Edition
  • 300
    505074481 Can-Am Red, RH Ski Leg. Except Hill Climb Edition & Ski Stance 38''
    Can-Am Red, RH Ski Leg. Except Hill Climb Edition & Ski Stance 38''
  • 300
    505074489 Can-Am Red, RH Ski Leg. Package Ski Stance 38''
    Can-Am Red, RH Ski Leg. Package Ski Stance 38''
  • 300
    505074534 Can-Am Red, RH Ski Leg. Hill Climb Edition
    Can-Am Red, RH Ski Leg. Hill Climb Edition
  • 320
    505072690 Leg Bushing
    Leg Bushing
  • 330
    503193651 Spacer
    Spacer
  • 400
    505073743 RH Lower Arm 36''. Except Hill Climb Edition & Ski Stance 38''
    RH Lower Arm 36''. Except Hill Climb Edition & Ski Stance 38''
  • 400
    505074085 Lower Arm RH. Package Ski Stance 38''
    Lower Arm RH. Package Ski Stance 38''
  • 400
    505074085 Lower Arm RH. Hill Climb Edition
    Lower Arm RH. Hill Climb Edition
  • 400
    505073739 LH Lower Arm 36''. Except Hill Climb Edition & Ski Stance 38''
    LH Lower Arm 36''. Except Hill Climb Edition & Ski Stance 38''
  • 400
    505074084 Lower Arm LH. Package Ski Stance 38''
    Lower Arm LH. Package Ski Stance 38''
  • 400
    505074084 Lower Arm LH. Hill Climb Edition
    Lower Arm LH. Hill Climb Edition
  • 420
    505072208 Bushing
    Bushing
  • 430
    505072209 Sleeve. Hill Climb Edition
    Sleeve. Hill Climb Edition
  • 430
    505072209 Sleeve. Package Ski Stance 38''
    Sleeve. Package Ski Stance 38''
  • 430
    505072214 Bushing. Except Hill Climb Edition & Ski Stance 38''
    Bushing. Except Hill Climb Edition & Ski Stance 38''
  • 440
    505072634 Wear Plate
    Wear Plate
  • 445
    505072448 O-Ring
    O-Ring
  • 450
    250001024 Screw Hex. M10 X 70
    Screw Hex. M10 X 70
  • 455
    250001024 Screw Hex. M10 X 70
    Screw Hex. M10 X 70
  • 470
    505073723 Wear Plate
    Wear Plate
  • 480
    505073844 Plate
    Plate
  • 500
    505074609 LH Upper Arm 36''. Except Hill Climb Edition & Ski Stance 38''
    LH Upper Arm 36''. Except Hill Climb Edition & Ski Stance 38''
  • 500
    505074611 LH Upper Arm 39''. Hill Climb Edition
    LH Upper Arm 39''. Hill Climb Edition
  • 500
    505074613 M Type LH Upper Arm 39''. Package Ski Stance 38''
    M Type LH Upper Arm 39''. Package Ski Stance 38''
  • 500
    505074610 RH Upper Arm 36''. Except Hill Climb Edition & Ski Stance 38''
    RH Upper Arm 36''. Except Hill Climb Edition & Ski Stance 38''
  • 500
    505074612 RH Upper Arm 39''. Hill Climb Edition
    RH Upper Arm 39''. Hill Climb Edition
  • 500
    505074614 RH Upper Arm 39''. Package Ski Stance 38''
    RH Upper Arm 39''. Package Ski Stance 38''
  • 520
    505072250 Bushing
    Bushing
  • 530
    505072143 Sleeve
    Sleeve
  • 540
    250001023 Screw Hex. M10 X 60
    Screw Hex. M10 X 60
  • 545
    250100165 Hex. Flanged Elastic Nut M10
    Hex. Flanged Elastic Nut M10
  • 550
    250001023 Screw Hex. M10 X 60
    Screw Hex. M10 X 60
  • 555
    250100165 Hex. Flanged Elastic Nut M10
    Hex. Flanged Elastic Nut M10
  • 660
    503189564 Washer
    Washer
  • 670
    505072392 Washer
    Washer
  • 680
    250100165 Hex. Flanged Elastic Nut M10
    Hex. Flanged Elastic Nut M10
  • 685
    250100165 Hex. Flanged Elastic Nut M10
    Hex. Flanged Elastic Nut M10
  • 690
    505072448 O-Ring
    O-Ring
  • 800
    505073847 Stabilisator
    Stabilisator
  • 810
    505072786 Bushing
    Bushing
  • 830
    505073752 Stabilisator Lever
    Stabilisator Lever
  • 840
    207663056 Hex Flanged Screw M6 X 1.0 X 30
    Hex Flanged Screw M6 X 1.0 X 30
  • 850
    233261466 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 860
    505073172 Double Ball Joint Link
    Double Ball Joint Link
  • 865
    505073703 Ball Joint
    Ball Joint
  • 870
    207663056 Hex Flanged Screw M6 X 1.0 X 30
    Hex Flanged Screw M6 X 1.0 X 30
  • 880
    233261466 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 1120
    505072753 Adjustment Knob
    Adjustment Knob
  • 1130
    250000644 Allen Screw M3 X 0.5 X 10
    Allen Screw M3 X 0.5 X 10
  • 1140
    503193033 Shock Adjuster Knob
    Shock Adjuster Knob
  • 1150
    250000644 Allen Screw M3 X 0.5 X 10
    Allen Screw M3 X 0.5 X 10
  • 1170
    250000824 Hexagonal Flange Screw M8 X 58
    Hexagonal Flange Screw M8 X 58
  • 1180
    250000824 Hexagonal Flange Screw M8 X 58
    Hexagonal Flange Screw M8 X 58
  • 1190
    233281414 Hex. Flanged Elastic Nut M8
    Hex. Flanged Elastic Nut M8
  • 1200
    505074009 Ball Joint. Hill Climb Edition
    Ball Joint. Hill Climb Edition
  • 1200
    505074133 Ball Joint. Except Hill Climb Edition
    Ball Joint. Except Hill Climb Edition
  • 1230
    503192491 Washer
    Washer
  • 1240
    232521464 Hex Elastic Nut M12 X 1.25
    Hex Elastic Nut M12 X 1.25
  • 1300
    293370070 Circlip
    Circlip
  • 1400
    505072913 Upper Ball Joint
    Upper Ball Joint
  • 1410
    293370098 Snap Ring
    Snap Ring
