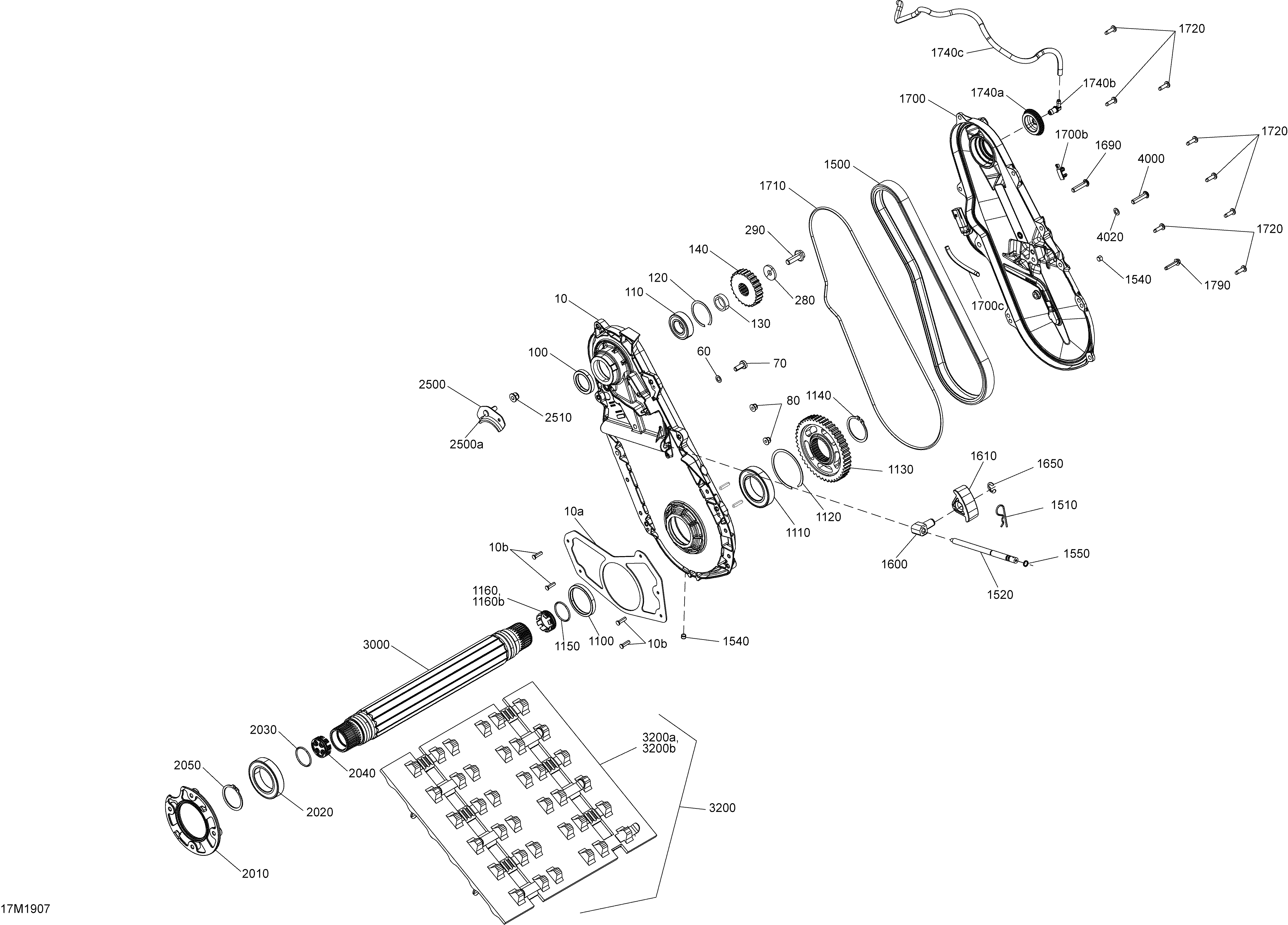

05- Drive - 154 - 850 E-TEC для BRP Ski-Doo 003 - FREERIDE 154 850 E-TEC - 2019

  • №
    Артикул
    Название
  • 10
    504153628 Chaincase Ass'y. Includes 10 to 10b
    Chaincase Ass'y. Includes 10 to 10b
  • 10a
    504153560 Plate Ass'y
    Plate Ass'y
  • 10b
    233261434 Flanged Elastic Nut M6
    Flanged Elastic Nut M6
  • 60
    504082900 Washer
    Washer
  • 70
    250000740 Torx Screw M8 X 20, Scotch Grip
    Torx Screw M8 X 20, Scotch Grip
  • 80
    233261434 Flanged Elastic Nut M6
    Flanged Elastic Nut M6
  • 100
    293200168 Oil Seal
    Oil Seal
  • 110
    293350115 Ball Bearing
    Ball Bearing
  • 120
    504152576 Circlip
    Circlip
  • 130
    504152628 Shim
    Shim
  • 140
    504096200 Sprocket, 21 Teeth
    Sprocket, 21 Teeth
  • 280
    504152784 Spring Washer M10
    Spring Washer M10
  • 290
    207503046 Hex. Flanged Screw M10 X 30, Scotch Grip
    Hex. Flanged Screw M10 X 30, Scotch Grip
  • 1100
    293200159 Oil Seal
    Oil Seal
  • 1110
    293350059 Ball Bearing
    Ball Bearing
  • 1120
    504152582 Circlip
    Circlip
  • 1130
    504152971 Sprocket, 51 Teeth
    Sprocket, 51 Teeth
  • 1140
    504152572 Circlip
    Circlip
  • 1150
    293300201 O-Ring
    O-Ring
  • 1160
    504153696 Magnetic Cap Ass'y. Includes 1160 to 1160a
    Magnetic Cap Ass'y. Includes 1160 to 1160a
  • 1160a
    504153697 Magnetic Cap
    Magnetic Cap
  • 1500
    504153397 Drive Chain, 116 Links
    Drive Chain, 116 Links
  • 1510
    414575600 Hair Pin
    Hair Pin
  • 1520
    504153760 Adjustment Screw
    Adjustment Screw
  • 1540
    250500012 Allen Drive Plug 1/8-27 PTF
    Allen Drive Plug 1/8-27 PTF
  • 1545
    504153704 Magnetic Plug
    Magnetic Plug
  • 1550
    293300202 O-Ring
    O-Ring
  • 1600
    504153559 Tensioner
    Tensioner
  • 1610
    504153312 Slider Chain
    Slider Chain
  • 1650
    293370105 Circlip
    Circlip
  • 1690
    250000764 Hex. Button Head Screw M8 X 1.25 X 35
    Hex. Button Head Screw M8 X 1.25 X 35
  • 1700
    504153903 Chain Case Cover Ass'y. Includes 1700 to 1700c
    Chain Case Cover Ass'y. Includes 1700 to 1700c
  • 1700b
    515178223 Clip
    Clip
  • 1700c
    415130141 Sleeve
    Sleeve
  • 1710
    293300200 O-Ring
    O-Ring
  • 1720
    250001012 Torx T-30 Pan HD Taptite M6X20
    Torx T-30 Pan HD Taptite M6X20
  • 1740
    504153535 Cap Ass'y. Includes 1740 to 1740c
    Cap Ass'y. Includes 1740 to 1740c
  • 1740a
    504152860 Cap
    Cap
  • 1740b
    414580700 Male Connector
    Male Connector
  • 1740c
    415080200 Hose, Polyurethane, iD 5.7mm (10M Roll)
    Hose, Polyurethane, iD 5.7mm (10M Roll)
  • 1790
    250001015 Flanged Hex. Screw M6 X 35
    Flanged Hex. Screw M6 X 35
  • 2030
    293300201 O-Ring
    O-Ring
  • 2040
    504153697 Magnetic Cap
    Magnetic Cap
  • 2050
    504152572 Circlip
    Circlip
  • 2500
    504153695 Bearing Housing Ass'y. Includes 2500 to 2500a
    Bearing Housing Ass'y. Includes 2500 to 2500a
  • 2500a
    250300028 Clinch Stud, M8 X 25
    Clinch Stud, M8 X 25
  • 2510
    233281414 Hex. Flanged Elastic Nut M8
    Hex. Flanged Elastic Nut M8
  • 3000
    504153836 Axle Drive Ass'y. Includes 3000 to 3000b
    Axle Drive Ass'y. Includes 3000 to 3000b
  • 3000a
    504153426 Retaining Ring
    Retaining Ring
  • 3000b
    293350059 Ball Bearing
    Ball Bearing
  • 3200
    504153785 Track Ass'y 16'' X 154'' X 3''. SKU - VCKR - VCKU. Includes 3200 to 3200b
    Track Ass'y 16'' X 154'' X 3''. SKU - VCKR - VCKU. Includes 3200 to 3200b
  • 3200
    504153785 Track Ass'y 16'' X 154'' X 3''. SKU - VCKH - VCKJ - VCKL - VCKM - VCKP. Includes 3200 to 3200b
    Track Ass'y 16'' X 154'' X 3''. SKU - VCKH - VCKJ - VCKL - VCKM - VCKP. Includes 3200 to 3200b
  • 3200
    504153791 Track Ass'y 16'' X 154'' X 2.50''. SKU - VCKA - VCKB - VCKE - VCKG - VCKK. Includes 3200 to 3200b
    Track Ass'y 16'' X 154'' X 2.50''. SKU - VCKA - VCKB - VCKE - VCKG - VCKK. Includes 3200 to 3200b
  • 3200a
    415130083 Track Guide. SKU - VHKA - VHKB - VHKC - VHKD - VHKE
    Track Guide. SKU - VHKA - VHKB - VHKC - VHKD - VHKE
  • 3200b
    415130084 Cleat. SKU - VHKF - VHKH
    Cleat. SKU - VHKF - VHKH
  • 4000
    250000764 Hex. Button Head Screw M8 X 1.25 X 35
    Hex. Button Head Screw M8 X 1.25 X 35
  • 4020
    504082900 Washer
    Washer
