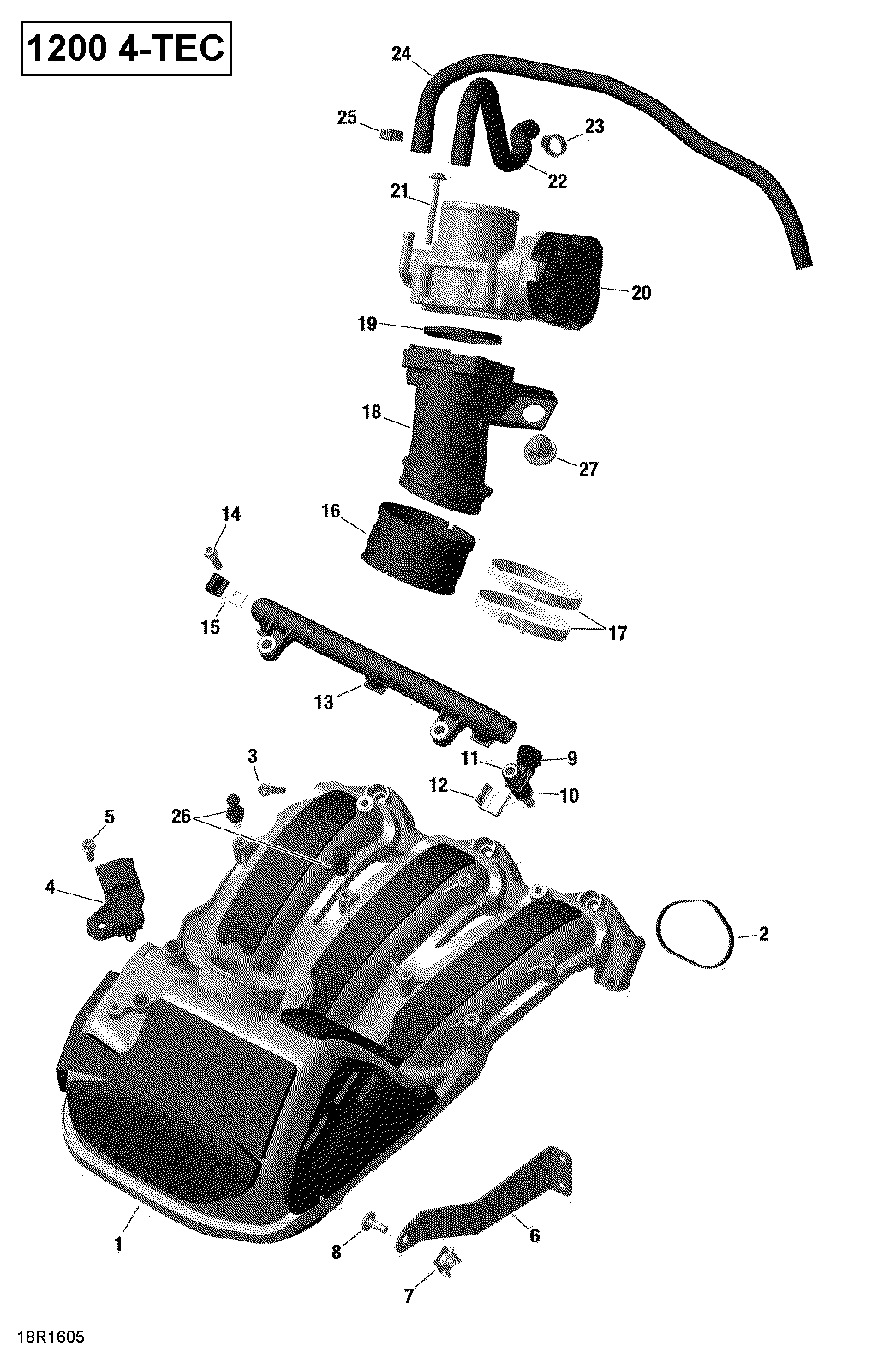

02- Air Intake Manifold and Throttle Body - 1200iTC 4-TEC для BRP Ski-Doo 007 - EXPEDITION LE-SE 1200 4-TEC - 2019
-
№АртикулНазвание
-
1420667446 Air Intake Manifold. Includes 1 to 2Air Intake Manifold. Includes 1 to 2
-
2420950745 GasketGasket
-
3420440647 Flanged Torx Screw M6 X 30Flanged Torx Screw M6 X 30
-
4707000995 Pressure And Temperature SensorPressure And Temperature Sensor
-
5420440162 Flanged Torx Screw M6 X 16Flanged Torx Screw M6 X 16
-
6420951011 SupportSupport
-
7420942108 Panel Nut M6 X 1Panel Nut M6 X 1
-
8420241524 Torx Screw M6 X 16Torx Screw M6 X 16
-
9420874841 Injection Valve Ass'y. Includes 10-11Injection Valve Ass'y. Includes 10-11
-
10420431890 O-RingO-Ring
-
11420631220 O-RingO-Ring
-
12420853030 ClipClip
-
13420874810 Fuel RailFuel Rail
-
14420440234 Flanged Torx Screw M6 X 25Flanged Torx Screw M6 X 25
-
15420253150 ClampClamp
-
16420460490 Intake AdaptorIntake Adaptor
-
17420251209 ClampClamp
-
18420867560 Connecting TubeConnecting Tube
-
19420850130 Gasket RubberGasket Rubber
-
20420893148 Throttle Body Ass'yThrottle Body Ass'y
-
21420441588 Flanged Torx Screw M6 X 50Flanged Torx Screw M6 X 50
-
22420460483 Molded HoseMolded Hose
-
23420851458 ClampClamp
-
24420822663 Molded Hose. Except GT LE - Renegade EnduroMolded Hose. Except GT LE - Renegade Enduro
-
24420822666 Molded Hose. GT LE - Renegade EnduroMolded Hose. GT LE - Renegade Enduro
-
25293650125 Oetiker ClampOetiker Clamp
-
26420441840 Distance ScrewDistance Screw
-
27420201630 Rubber CapRubber Cap
