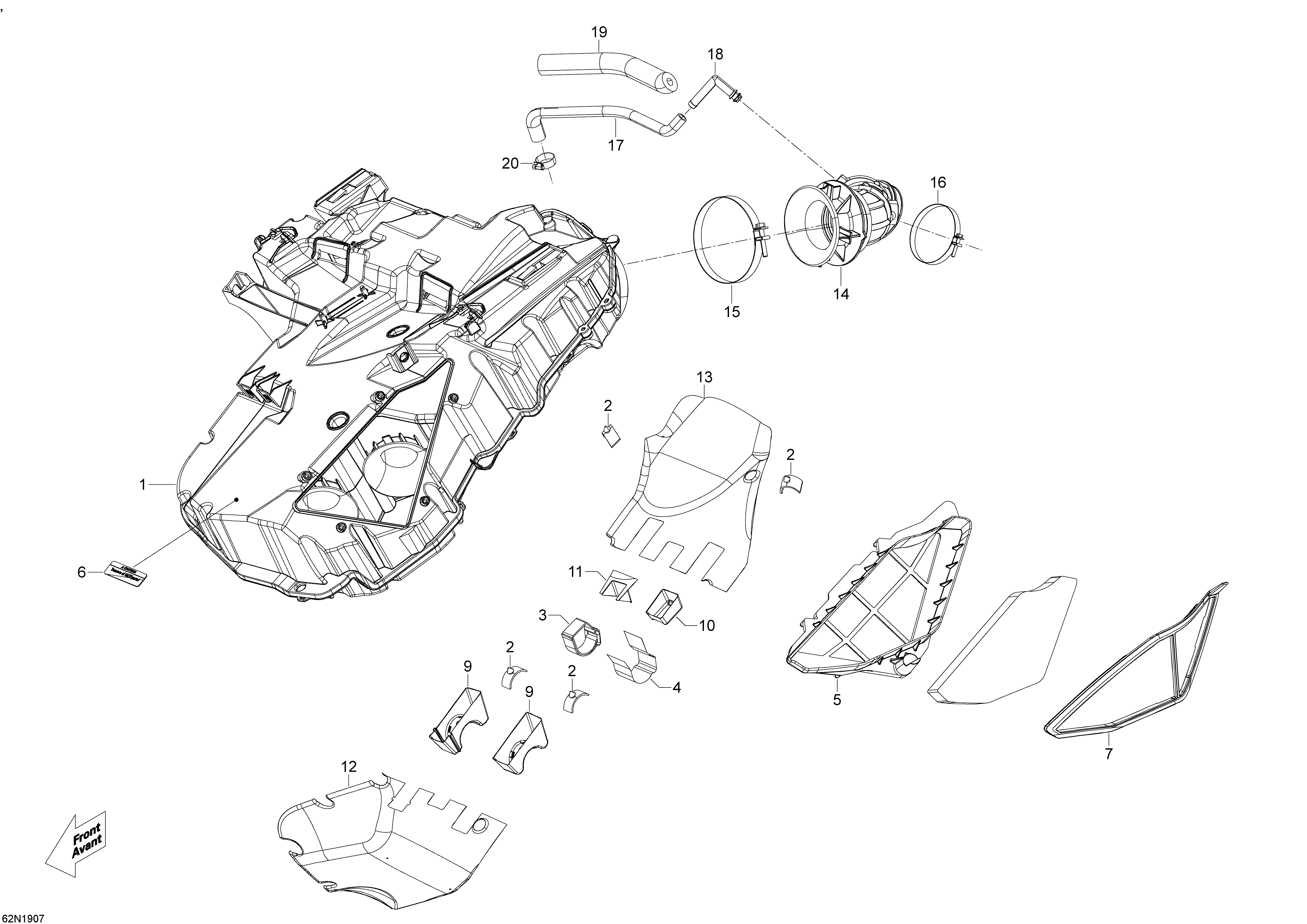

02- Air Intake - 1200 4-TEC для BRP Ski-Doo 007 - EXPEDITION LE-SE 1200 4-TEC - 2019

-
№АртикулНазвание
-
1508000789 Secondary Chamber Ass'ySecondary Chamber Ass'y
-
2508000537 StopperStopper
-
3508000820 Velcro-StripVelcro-Strip
-
444110 Aluminum foilAluminum foil
-
5508001020 AdaptorAdaptor
-
6516006903 Hot Parts DecalHot Parts Decal
-
7508000609 Air FilterAir Filter
-
9508000723 Heat ShieldHeat Shield
-
10508000725 Heat ShieldHeat Shield
-
11508000636 Heat ShieldHeat Shield
-
12508000726 Heat ShieldHeat Shield
-
13508000627 Heat ShieldHeat Shield
-
14508000812 Intake HoseIntake Hose
-
15514052983 Norma Gear ClampNorma Gear Clamp
-
16293650229 Gemi ClampGemi Clamp
-
17508000792 Fan HoseFan Hose
-
18508000811 BreatherBreather
-
19508000630 Insulating TubeInsulating Tube
-
20293650172 Tridon Gear ClampTridon Gear Clamp
