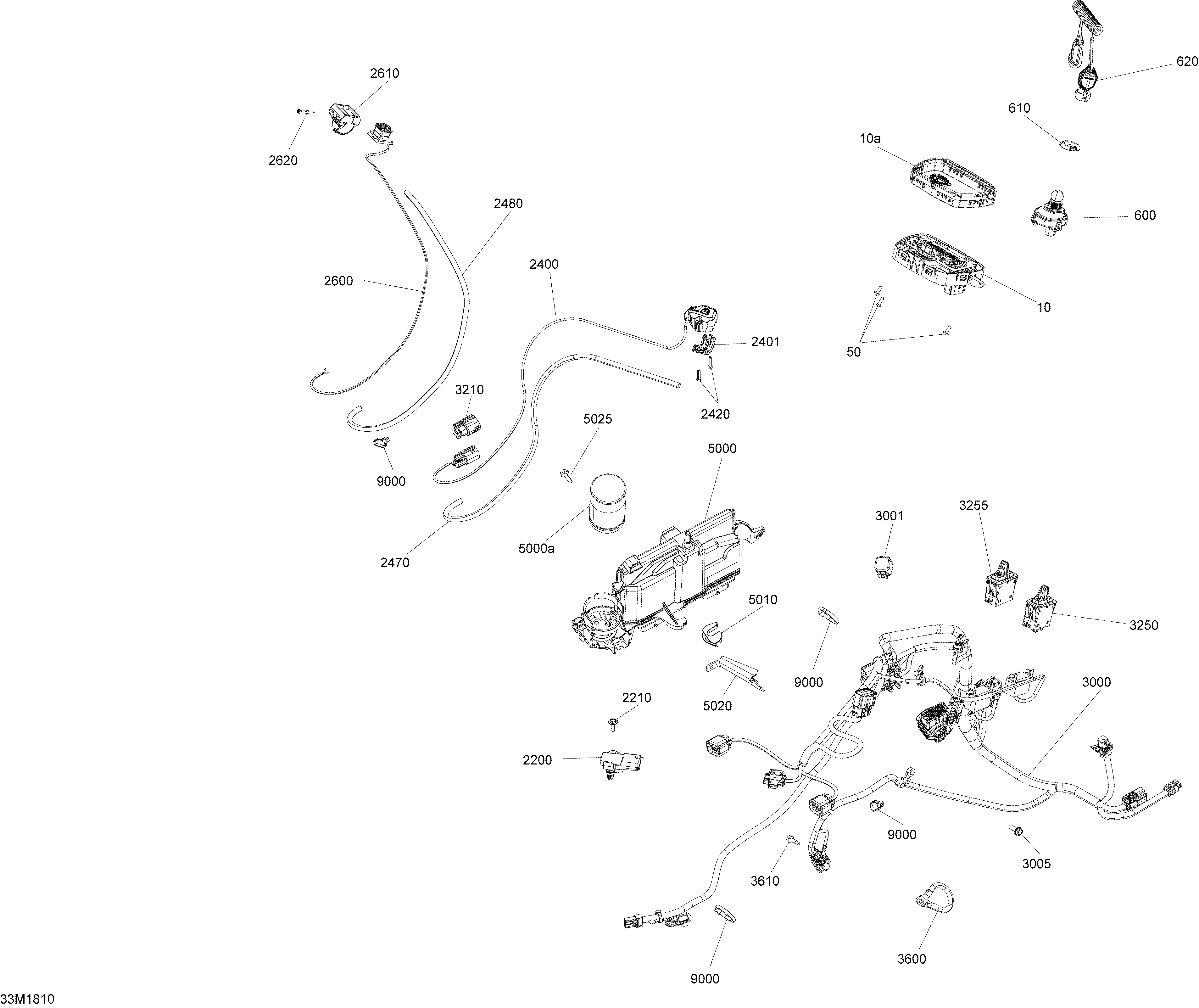

10- Electrical System Freeride, Summit - 850 E-TEC - Manual Starter для BRP Ski-Doo FREERIDE 850 E-TEC - 2018
-
№АртикулНазвание
-
10515178350 IndicatorIndicator
-
50250000577 Torx Truss K40 X 12Torx Truss K40 X 12
-
600515178225 DESS SwitchDESS Switch
-
610278002963 Safety NutSafety Nut
-
620515178286 Grey - RF Key Ass'yGrey - RF Key Ass'y
-
2200707000995 Pressure And Temperature SensorPressure And Temperature Sensor
-
2210250000725 Screw M4 X 16Screw M4 X 16
-
2400515178381 Start ButtonStart Button
-
2401515177952 ClampClamp
-
2420250000671 Torx ScrewTorx Screw
-
2470415130141 SleeveSleeve
-
2480415130141 SleeveSleeve
-
2600515177931 Kill SwitchKill Switch
-
2610515177310 Kill Switch SupportKill Switch Support
-
2620250000263 Torx Screw #8-18Torx Screw #8-18
-
3000515178366 Main HarnessMain Harness
-
3001515178435 Diagnostic CapDiagnostic Cap
-
3005250000936 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
3210515178177 4 Circuits Female Housing4 Circuits Female Housing
-
3250515177917 Rocker Switch. Heated GripRocker Switch. Heated Grip
-
3255515177932 Rocker Switch. HeadlightRocker Switch. Headlight
-
3600515178248 Ground WireGround Wire
-
3610250000911 Hex. Flanged Screw M5 X 16Hex. Flanged Screw M5 X 16
-
5000512061093 Igniton Module. Includes 5000 to 5000,001Igniton Module. Includes 5000 to 5000,001
-
5000.001515177272 CapacitorCapacitor
-
5010515178430 Rubber StopperRubber Stopper
-
5020515178159 Module SupportModule Support
-
5025207651646 Hex. Flanged Screw M5 X 16Hex. Flanged Screw M5 X 16
-
9000293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
9000414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
9000293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
9000293750001 Tie-Rap 94 mmTie-Rap 94 mm
