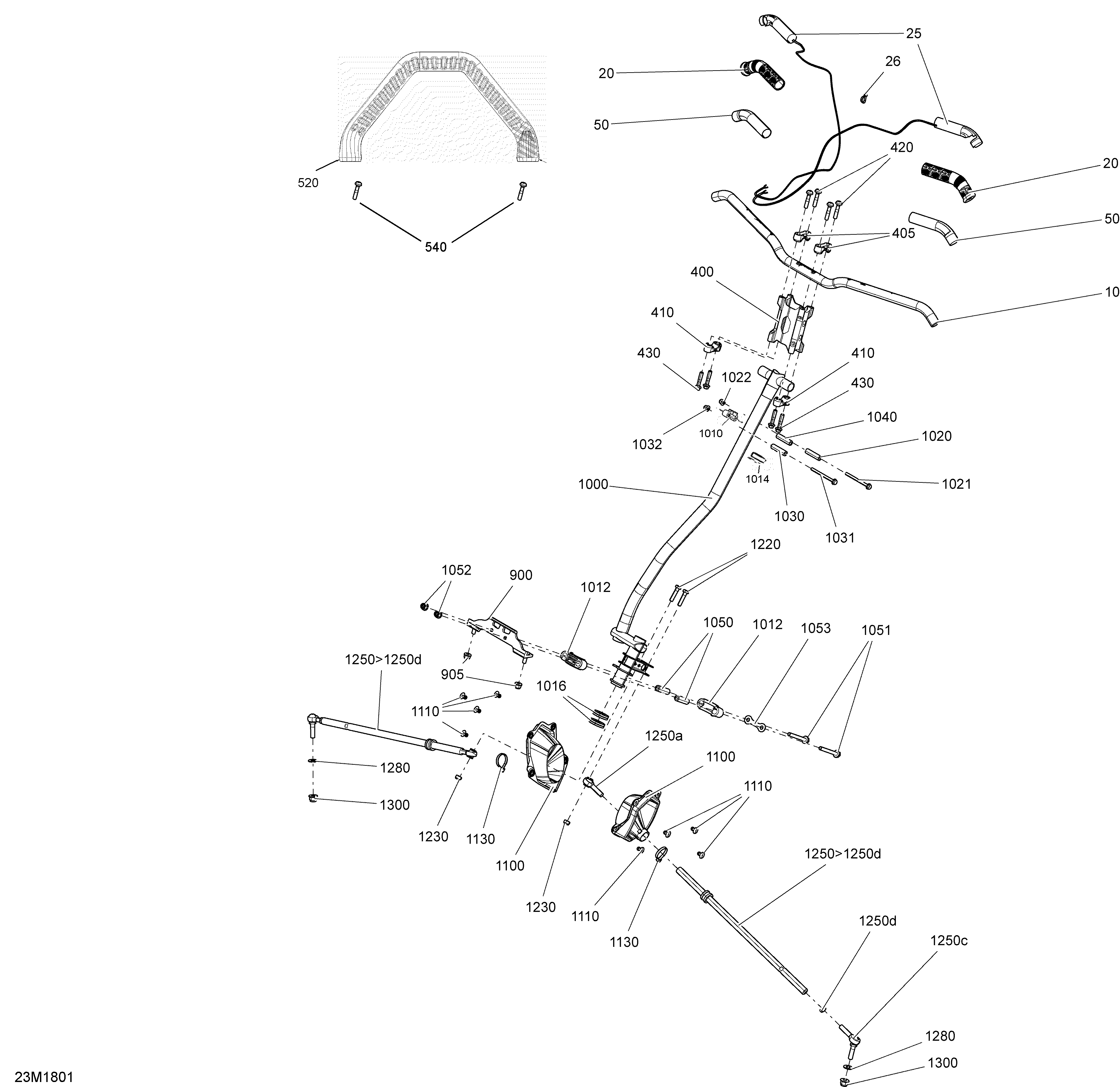

07- Steering Freeride - 850 E-TEC для BRP Ski-Doo FREERIDE 850 E-TEC - 2018
-
№АртикулНазвание
-
10506153010 Manta Green, Handle BarManta Green, Handle Bar
-
20506152560 Grip 148mmGrip 148mm
-
25506152856 Heated FilmHeated Film
-
26293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
50506152548 IsolantIsolant
-
400860201632 Riser Kit. Riser 165Riser Kit. Riser 165
-
400506152981 Black, Riser. Riser 145Black, Riser. Riser 145
-
405506152867 LH SupportLH Support
-
406506152928 RH SupportRH Support
-
410506152894 SupportSupport
-
420250000904 Button Head Torx Screw M8 X 38Button Head Torx Screw M8 X 38
-
430250000852 Hexagonal Flange Screw M8 X 1.25 x 60Hexagonal Flange Screw M8 X 1.25 x 60
-
520506152929 Strap. Includes 520 to 540Strap. Includes 520 to 540
-
540250000779 Torx Screw M6 X 1.0 X 18, Scotch GripTorx Screw M6 X 1.0 X 18, Scotch Grip
-
900506152787 PlatePlate
-
905233281416 Hex. Elastic Flanged Nut M8Hex. Elastic Flanged Nut M8
-
1000506153022 Main TubeMain Tube
-
1010506152219 Upper Half HousingUpper Half Housing
-
1012506153048 Lower Half-HousingLower Half-Housing
-
1014506152292 Upper Vibration RingUpper Vibration Ring
-
1016506152518 Lower Vibration RingLower Vibration Ring
-
1020506152297 Housing BushingHousing Bushing
-
1021207667554 Screw Hex Flange M6 X 75Screw Hex Flange M6 X 75
-
1022233261416 Elastic Flanged Nut M6 X 1.0Elastic Flanged Nut M6 X 1.0
-
1030506152297 Housing BushingHousing Bushing
-
1031207667554 Screw Hex Flange M6 X 75Screw Hex Flange M6 X 75
-
1032233261416 Elastic Flanged Nut M6 X 1.0Elastic Flanged Nut M6 X 1.0
-
1040506152297 Housing BushingHousing Bushing
-
1050506152937 Housing BushingHousing Bushing
-
1051207687044 Hex. Flanged Screw M8 X 70Hex. Flanged Screw M8 X 70
-
1052233281416 Hex. Elastic Flanged Nut M8Hex. Elastic Flanged Nut M8
-
1053506152938 Stopper PlateStopper Plate
-
1100506153037 BootBoot
-
1110293150008 Pop Rivet 3/16''Pop Rivet 3/16''
-
1130414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
1220207083544 Hex. Screw M8 X 35Hex. Screw M8 X 35
-
1230232581414 Hex. Elastic Stop Nut M8Hex. Elastic Stop Nut M8
-
1250506153056 Rod Ass'y. VCJD - VCJF. Includes 1250 to 1250dRod Ass'y. VCJD - VCJF. Includes 1250 to 1250d
-
1250506153057 Rod Ass'y. Ski Stance 35-37. Includes 1250 to 1250dRod Ass'y. Ski Stance 35-37. Includes 1250 to 1250d
-
1250506153058 Rod Ass'y. Ski Stance 38-40. Includes 1250 to 1250dRod Ass'y. Ski Stance 38-40. Includes 1250 to 1250d
-
1250a506152344 LH Ball JointLH Ball Joint
-
1250b250100016 LH Hex. Jam Nut M10LH Hex. Jam Nut M10
-
1250c506152684 RH Thread Ball JointRH Thread Ball Joint
-
1250d732610010 RH Hex. Jam Nut M10RH Hex. Jam Nut M10
-
1280506152582 WasherWasher
-
1300233201464 Hex. Elast. Flanged Nut M10 x 1.5Hex. Elast. Flanged Nut M10 x 1.5
