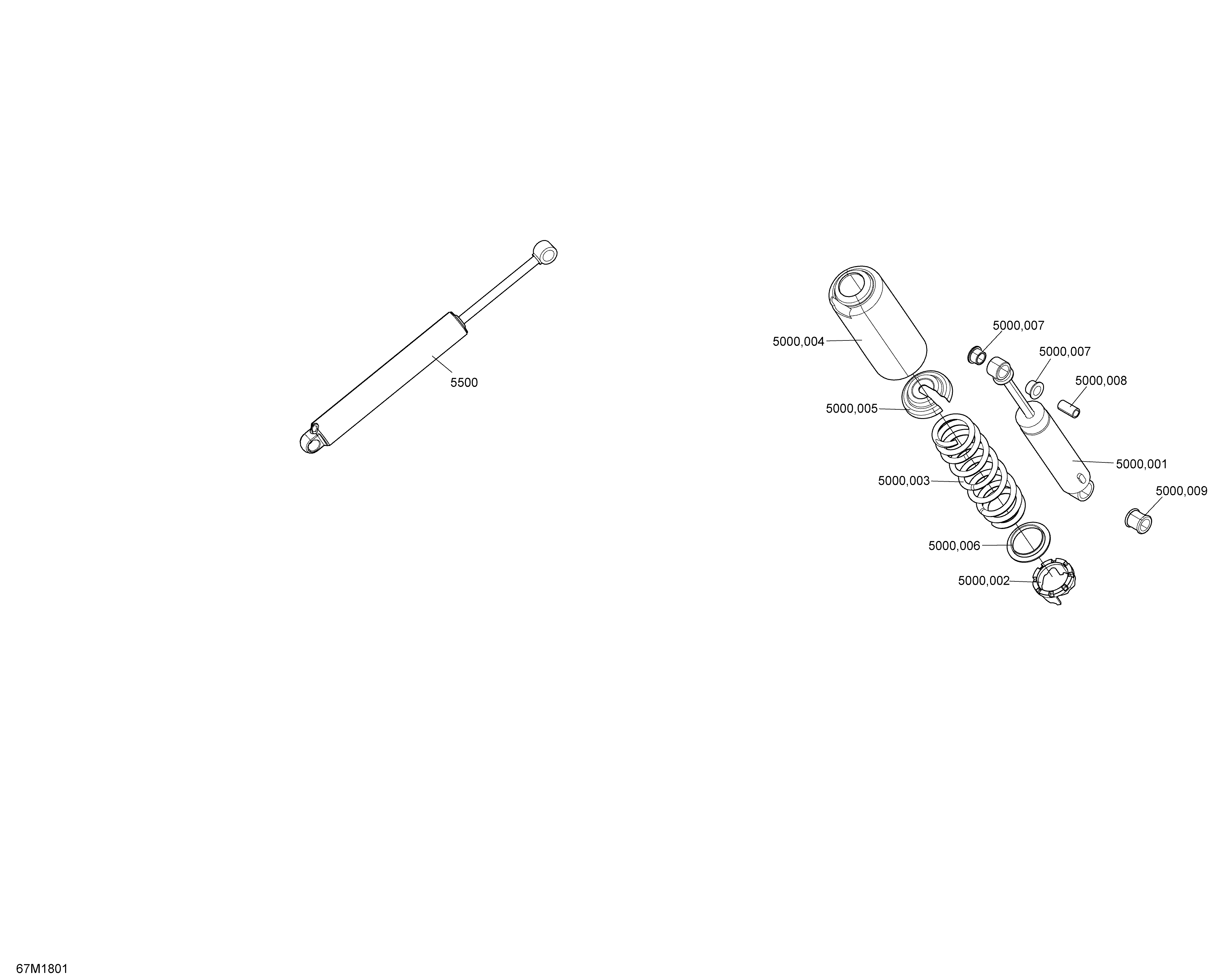

08- Rear Shocks Expedition - 900 ACE - North America Models для BRP Ski-Doo 3- EXPEDITION SPORT 900 ACE - 2018
-
№АртикулНазвание
-
5000.001503192266 Center ShockCenter Shock
-
5000.002505073625 Adjustment CamAdjustment Cam
-
5000.003503191880 Black SpringBlack Spring
-
5000.004503193663 ProtectorProtector
-
5000.005503191872 Spring GuideSpring Guide
-
5000.006706200881 Spring StopperSpring Stopper
-
5000.007503189117 BushingBushing
-
5000.008503189282 BushingBushing
-
5000.009503189271 BushingBushing
-
5500503193193 Rear Shock HPG SEALRear Shock HPG SEAL
