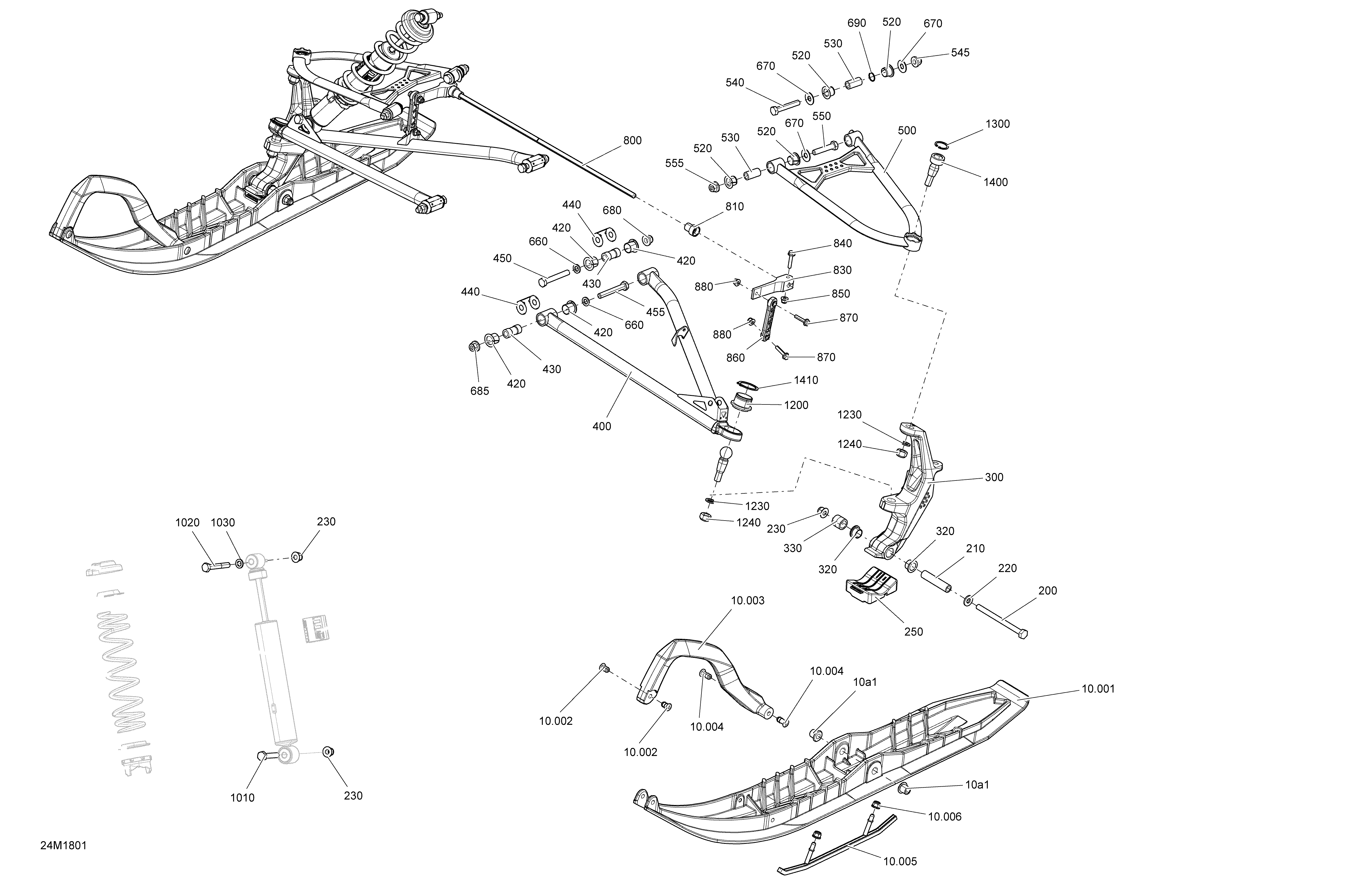

07- Front Suspension And Ski Expedition для BRP Ski-Doo 3- EXPEDITION SPORT 900 ACE - 2018
-
№АртикулНазвание
-
10.001505073227 Black DS 2 SkiBlack DS 2 Ski
-
10.002505071812 RetainerRetainer
-
10.003505072976 Black HandleBlack Handle
-
10.004505072133 RetainerRetainer
-
10.005860201044 Carbide Runner KitCarbide Runner Kit
-
10.006233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
200250000703 Hex. Screw M10 X 130Hex. Screw M10 X 130
-
210506133300 SpacerSpacer
-
300505073559 White LH Ski LegWhite LH Ski Leg
-
300505073560 White RH Ski LegWhite RH Ski Leg
-
320505072690 Leg BushingLeg Bushing
-
330503193651 SpacerSpacer
-
400505072497 Black RH Lower ArmBlack RH Lower Arm
-
400505072498 Black LH Lower ArmBlack LH Lower Arm
-
420505072208 BushingBushing
-
430505072209 BushingBushing
-
440505072634 Wear PlateWear Plate
-
450250000291 Screw Hex. M10 X 70Screw Hex. M10 X 70
-
455250000291 Screw Hex. M10 X 70Screw Hex. M10 X 70
-
500505073468 LH Upper Arm 39''LH Upper Arm 39''
-
500505073469 RH Upper Arm 39''RH Upper Arm 39''
-
520505072250 BushingBushing
-
530505072143 BushingBushing
-
540250000290 Screw Hex. M10 X 60Screw Hex. M10 X 60
-
545250100165 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
550250000289 Screw Hex. M10 X 50Screw Hex. M10 X 50
-
555250100165 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
660503189564 WasherWasher
-
670505072392 WasherWasher
-
680250100165 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
685250100165 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
690505072448 O-RingO-Ring
-
800505072602 StabilisatorStabilisator
-
810505072064 BushingBushing
-
830505072394 Stabilisator LeverStabilisator Lever
-
840207663056 Hex Flanged Screw M6 X 30Hex Flanged Screw M6 X 30
-
850233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
860505072204 Double Ball Joint LinkDouble Ball Joint Link
-
870207663056 Hex Flanged Screw M6 X 30Hex Flanged Screw M6 X 30
-
880233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
1010207005554 Hex Screw M10 X 55Hex Screw M10 X 55
-
1020207006544 Hex. Screw M10 X 65Hex. Screw M10 X 65
-
1030503189564 WasherWasher
-
1200505073636 Ball JointBall Joint
-
1230503192491 WasherWasher
-
1240232521464 Hex Elastic Nut M12Hex Elastic Nut M12
-
1300293370070 CirclipCirclip
-
1400505072913 Upper Ball JointUpper Ball Joint
-
1410293370035 CirclipCirclip
