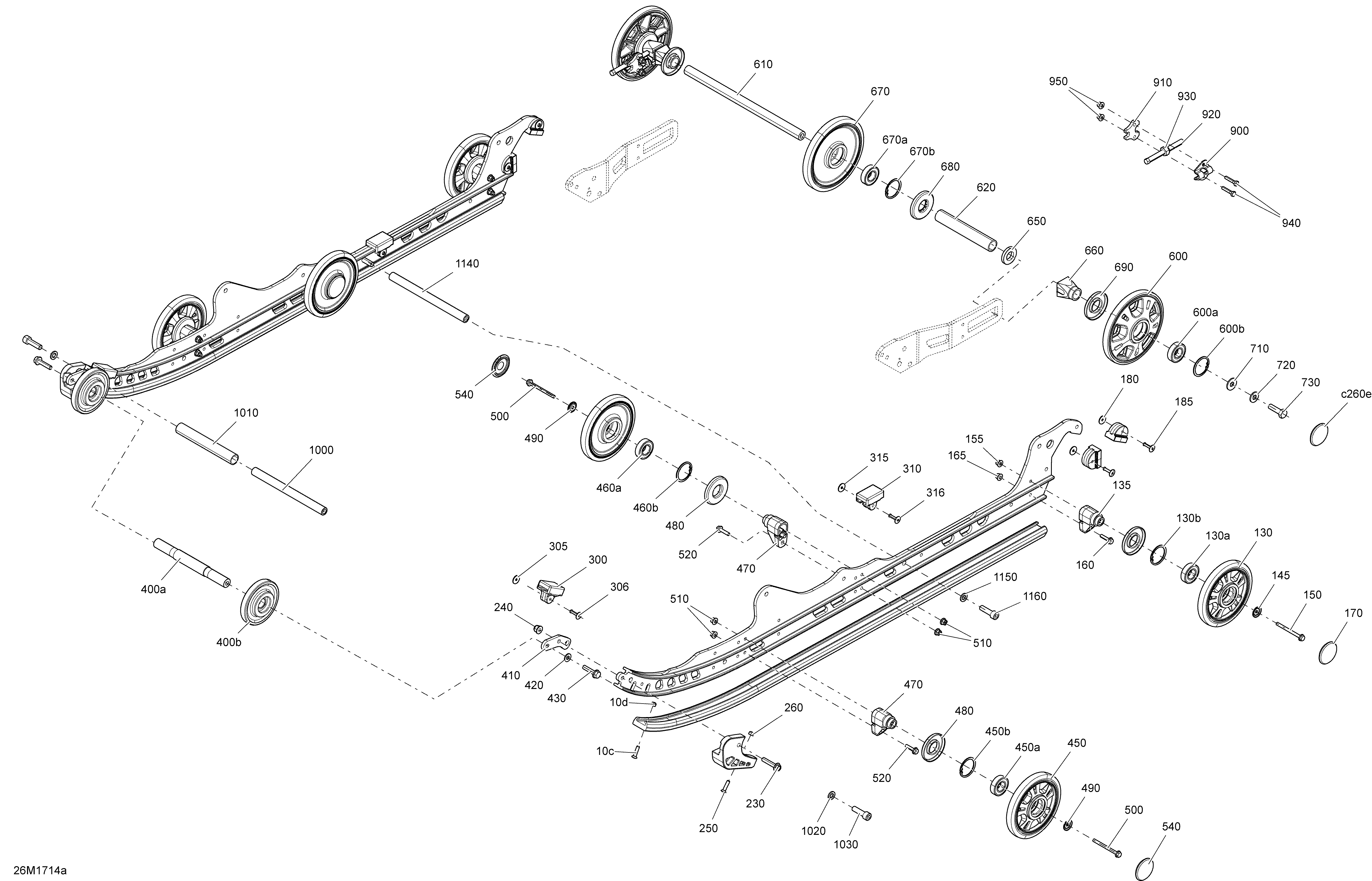

08- Rear Suspension - Inferior - All Models для BRP Ski-Doo TUNDRA - 2-STROKE - XTREME - 2017

  • №
    Артикул
    Название
  • 10a
    503194599 Green Machined Rail 154
    Green Machined Rail 154
  • 10b
    503192618 Black Slider, 154''
    Black Slider, 154''
  • 10c
    208562531 Phillips Screw M6 X 25
    Phillips Screw M6 X 25
  • 10d
    232561414 Elastic Stop Nut M6
    Elastic Stop Nut M6
  • 130
    503191152 Black - Wheel Ass'y 147 mm. Includes 130 to 130b
    Black - Wheel Ass'y 147 mm. Includes 130 to 130b
  • 130a
    503190396 Ball Bearing
    Ball Bearing
  • 130b
    415129371 Retaining Ring
    Retaining Ring
  • 135
    503193894 Casted Support
    Casted Support
  • 140
    503190434 Labyrinth Seal
    Labyrinth Seal
  • 145
    503191820 Wheel Cup M6
    Wheel Cup M6
  • 150
    207667056 Hex. Flange Screw M6 X 70
    Hex. Flange Screw M6 X 70
  • 155
    233261466 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 160
    207662556 Hex. Flange Screw M6 X 25
    Hex. Flange Screw M6 X 25
  • 165
    233261466 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 170
    503192771 Black - Wheel Cap
    Black - Wheel Cap
  • 175
    503191291 Rubber Stopper
    Rubber Stopper
  • 180
    503191273 Washer
    Washer
  • 185
    293150013 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 200
    503192299 Runner Protector
    Runner Protector
  • 200
    503192609 LH Protector
    LH Protector
  • 200
    503192610 RH Protector
    RH Protector
  • 230
    207652544 Hex. Flanged Screw M5 X 25
    Hex. Flanged Screw M5 X 25
  • 230
    207684044 Hex. Flanged Screw M8 X 40
    Hex. Flanged Screw M8 X 40
  • 240
    233251414 Hex. Flanged Elastic Nut M5
    Hex. Flanged Elastic Nut M5
  • 240
    233281466 Elastic Flang Nut M8
    Elastic Flang Nut M8
  • 250
    208562531 Phillips Screw M6 X 25
    Phillips Screw M6 X 25
  • 260
    232561414 Elastic Stop Nut M6
    Elastic Stop Nut M6
  • 300
    503190576 Rubber Stopper
    Rubber Stopper
  • 305
    503191273 Washer
    Washer
  • 306
    293150013 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 310
    503190576 Rubber Stopper
    Rubber Stopper
  • 315
    503191273 Washer
    Washer
  • 316
    293150013 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 400a
    503192644 Front Wheel Axle
    Front Wheel Axle
  • 400b
    503192611 Black Wheel Ass'y, 100 mm
    Black Wheel Ass'y, 100 mm
  • 410
    503192612 Plate
    Plate
  • 420
    503192494 Washer
    Washer
  • 430
    207583586 Hex. Flanged Screw M8 X 35, Scotch Grip
    Hex. Flanged Screw M8 X 35, Scotch Grip
  • 450
    503191152 Black - Wheel Ass'y 147 mm. Includes 450 to 450b
    Black - Wheel Ass'y 147 mm. Includes 450 to 450b
  • 450a
    503190396 Ball Bearing
    Ball Bearing
  • 450b
    415129371 Retaining Ring
    Retaining Ring
  • 460
    503191311 Black Wheel Ass'y 147 mm. Includes 460 to 460b
    Black Wheel Ass'y 147 mm. Includes 460 to 460b
  • 460a
    503190396 Ball Bearing
    Ball Bearing
  • 460b
    415129371 Retaining Ring
    Retaining Ring
  • 470
    503193894 Casted Support
    Casted Support
  • 480
    503190434 Labyrinth Seal
    Labyrinth Seal
  • 490
    503191820 Wheel Cup M6
    Wheel Cup M6
  • 500
    207667056 Hex. Flange Screw M6 X 70
    Hex. Flange Screw M6 X 70
  • 510
    233261466 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 520
    207662556 Hex. Flange Screw M6 X 25
    Hex. Flange Screw M6 X 25
  • 540
    503192771 Black - Wheel Cap
    Black - Wheel Cap
  • 600
    503192128 Deep Black Wheel Ass'y, 165 mm. Includes 600 to 600b
    Deep Black Wheel Ass'y, 165 mm. Includes 600 to 600b
  • 600a
    503190396 Ball Bearing
    Ball Bearing
  • 600b
    415129371 Retaining Ring
    Retaining Ring
  • 610
    503190429 Rear Axle
    Rear Axle
  • 620
    503193052 Spacer
    Spacer
  • 650
    503190432 Washer
    Washer
  • 660
    503190428 Rear Wheel Spacer
    Rear Wheel Spacer
  • 670
    503192140 Black Wheel Ass'y, 165 mm. Includes 670 to 670b
    Black Wheel Ass'y, 165 mm. Includes 670 to 670b
  • 670a
    503190396 Ball Bearing
    Ball Bearing
  • 670b
    415129371 Retaining Ring
    Retaining Ring
  • 680
    503190682 Labyrinth Seal
    Labyrinth Seal
  • 690
    503190434 Labyrinth Seal
    Labyrinth Seal
  • 710
    503191910 Washer
    Washer
  • 720
    234201474 Conical Spring Washer 10 mm
    Conical Spring Washer 10 mm
  • 730
    250000817 Hex Screw With Nilon Patch, M10 X 35
    Hex Screw With Nilon Patch, M10 X 35
  • 900
    503192583 Tensioner
    Tensioner
  • 910
    503193250 Spacer
    Spacer
  • 920
    230100054 Hex Screw M10 x 100
    Hex Screw M10 x 100
  • 930
    233601466 Elastic Locking Nut M10
    Elastic Locking Nut M10
  • 940
    207063054 Hex. Cap Screw M6 X 30
    Hex. Cap Screw M6 X 30
  • 950
    233261466 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 1000
    503192613 Axle Strap
    Axle Strap
  • 1010
    503192678 Spacer
    Spacer
  • 1020
    503192496 Washer
    Washer
  • 1030
    205503554 Socket Head Screw M10 X 35
    Socket Head Screw M10 X 35
  • 1140
    503191260 Axle Strap
    Axle Strap
  • 1150
    503192496 Washer
    Washer
  • 1160
    205503554 Socket Head Screw M10 X 35
    Socket Head Screw M10 X 35
  • c260e
    503192771 Black - Wheel Cap
    Black - Wheel Cap
