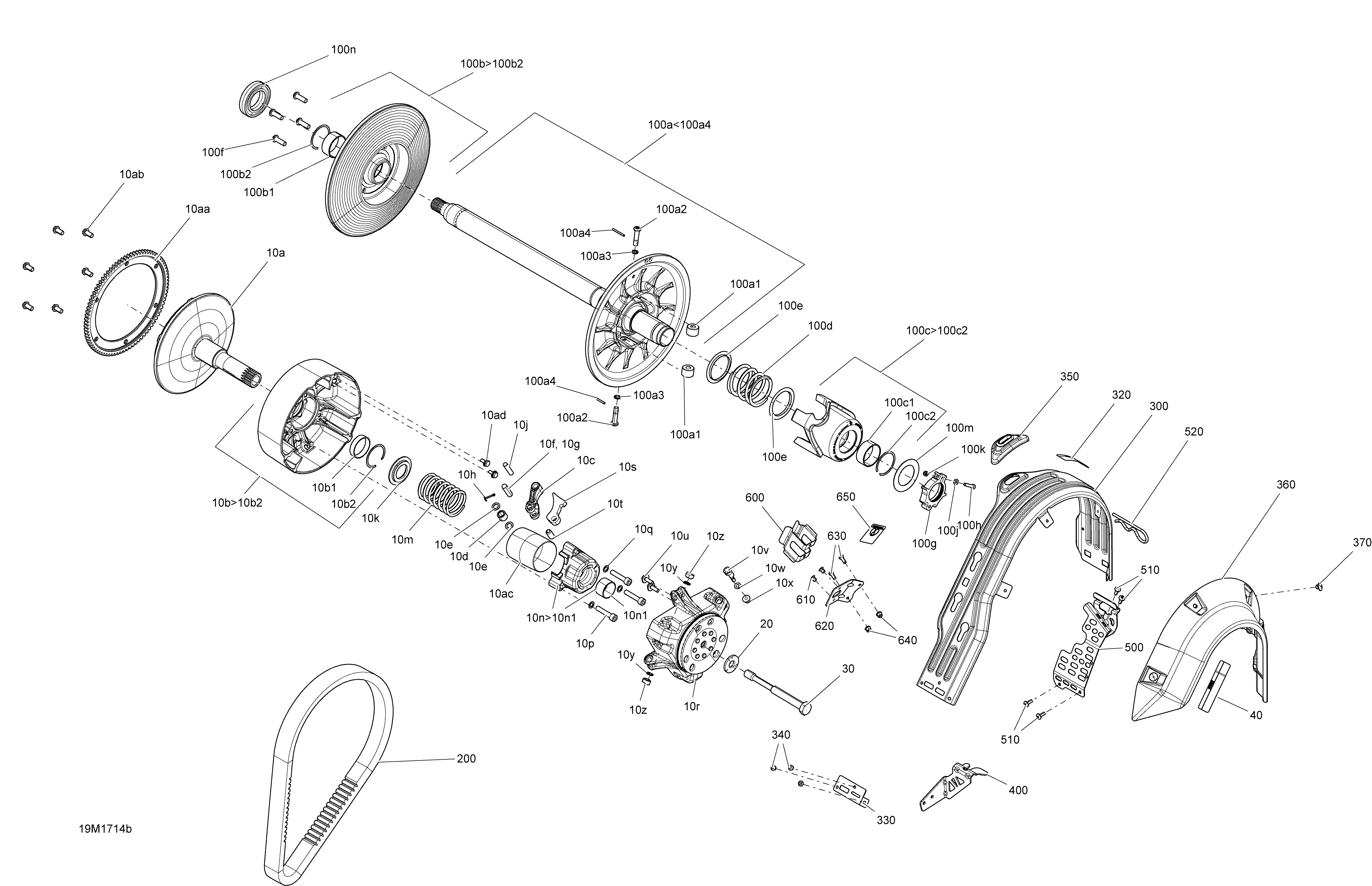

05- Pulley System - All Models для BRP Ski-Doo TUNDRA - 2-STROKE - XTREME - 2017

  • №
    Артикул
    Название
  • 10a
    417222937 Fixed Flange Ass'y
    Fixed Flange Ass'y
  • 10b>10b2
    417222181 Sliding Flange Ass'y. Includes 10b to 10b2
    Sliding Flange Ass'y. Includes 10b to 10b2
  • 10b1
    417222758 Bushing
    Bushing
  • 10b2
    293370037 Circlip
    Circlip
  • 10c
    417222671 Lever
    Lever
  • 10d
    417222947 Roller
    Roller
  • 10e
    417004302 Stopper Washer
    Stopper Washer
  • 10f
    417004308 Pin. Europe
    Pin. Europe
  • 10f
    417222477 Threaded Pin. USA/CAN
    Threaded Pin. USA/CAN
  • 10g
    250000410 Socket Set Screw M6 X 16. USA/CAN
    Socket Set Screw M6 X 16. USA/CAN
  • 10h
    250400060 Cotter Pin
    Cotter Pin
  • 10j
    417223164 Lever Axle
    Lever Axle
  • 10k
    417222312 Spring Seat
    Spring Seat
  • 10m
    415015200 Spring (Red/Orange). USA/CAN
    Spring (Red/Orange). USA/CAN
  • 10m
    414817700 Spring, Blue/green. Europe
    Spring, Blue/green. Europe
  • 10n>10n1
    417007500 Spring Cover Ass'y. Includes 10n to 10n1
    Spring Cover Ass'y. Includes 10n to 10n1
  • 10n1
    417009204 Bushing
    Bushing
  • 10p
    205084044 Socket Head Screw M8 X 40
    Socket Head Screw M8 X 40
  • 10q
    250200009 Lock Washer 8 mm
    Lock Washer 8 mm
  • 10r
    417223669 Governor Cup Ass'y
    Governor Cup Ass'y
  • 10s
    417222552 Ramp 417. USA/CAN
    Ramp 417. USA/CAN
  • 10s
    417222515 Ramp 412. Europe
    Ramp 412. Europe
  • 10t
    250400050 Spring Pin M10 X 22
    Spring Pin M10 X 22
  • 10u
    250000418 Flanged Hex. Screw M6 X 18, Scotch Grip
    Flanged Hex. Screw M6 X 18, Scotch Grip
  • 10v
    417223501 Calibration Screw
    Calibration Screw
  • 10w
    417005600 Washer
    Washer
  • 10x
    233261414 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 10y
    732401030 O-Ring
    O-Ring
  • 10z
    417223271 Slider Shoe. USA/CAN
    Slider Shoe. USA/CAN
  • 10z
    417222992 Slider Shoe. Europe
    Slider Shoe. Europe
  • 10aa
    417223738 Ring Gear
    Ring Gear
  • 10ab
    250000533 Hex. Flange Screw M8 X 16
    Hex. Flange Screw M8 X 16
  • 10ac
    417009205 Guard
    Guard
  • 10ad
    250000412 Flanged Hex. Screw M6 X 12, Scotch Grip
    Flanged Hex. Screw M6 X 12, Scotch Grip
  • 20
    250200144 Conical Spring Washer M14
    Conical Spring Washer M14
  • 30
    417120000 Drive Pulley Bolt
    Drive Pulley Bolt
  • 40
    516005503 Decal, English
    Decal, English
  • 100a>100a4
    417127389 Fix Flange Ass'y. Includes 100a to 100a4
    Fix Flange Ass'y. Includes 100a to 100a4
  • 100a1
    417127016 Roller
    Roller
  • 100a2
    417127294 Pivot Stud
    Pivot Stud
  • 100a3
    250200009 Lock Washer 8 mm
    Lock Washer 8 mm
  • 100a4
    250400063 Spring Pin M3 X 30
    Spring Pin M3 X 30
  • 100b>100b2
    417127317 Sliding Flange Ass'y. Includes 100b to 100b2
    Sliding Flange Ass'y. Includes 100b to 100b2
  • 100b1
    417127318 Bushing
    Bushing
  • 100b2
    293370049 Circlip
    Circlip
  • 100c>100c2
    417127325 Cam Ass'y. USA/CAN. Includes 100c to 100c2
    Cam Ass'y. USA/CAN. Includes 100c to 100c2
  • 100c>100c2
    417127376 Cam Ass'y. Europe. Includes 100c to 100c2
    Cam Ass'y. Europe. Includes 100c to 100c2
  • 100c1
    417127318 Bushing
    Bushing
  • 100c2
    293370049 Circlip
    Circlip
  • 100d
    417127039 Black Spring
    Black Spring
  • 100e
    417127116 Swivel Abutment
    Swivel Abutment
  • 100f
    250000707 Hex. Button Head Screw M8 X 25
    Hex. Button Head Screw M8 X 25
  • 100g
    415129604 Calibration Ass'y
    Calibration Ass'y
  • 100h
    205052544 Socket Screw M5 X 25
    Socket Screw M5 X 25
  • 100j
    234051410 Flat Washer M5
    Flat Washer M5
  • 100k
    232551414 Elastic Stop Nut M5
    Elastic Stop Nut M5
  • 100m
    417127155 Washer
    Washer
  • 100n
    504152574 Ball Bearing
    Ball Bearing
  • 200
    417300383 Drive Belt
    Drive Belt
  • 300
    417300382 Belt Guard
    Belt Guard
  • 320
    516005509 Safety Belt Guard Decal
    Safety Belt Guard Decal
  • 330
    417300380 Reinforcement
    Reinforcement
  • 340
    390909200 Avex Rivet
    Avex Rivet
  • 350
    417300381 Guide
    Guide
  • 360
    417300356 Side Protector
    Side Protector
  • 370
    293150103 Black Pop Rivet 3/16''
    Black Pop Rivet 3/16''
  • 400
    417300374 Front Belt Guard Bracket
    Front Belt Guard Bracket
  • 500
    417300448 Belt Guard Bracket
    Belt Guard Bracket
  • 510
    250000742 Torx Screw M5 X 14
    Torx Screw M5 X 14
  • 520
    114045200 Hair Pin
    Hair Pin
  • 600
    517281905 Bracket
    Bracket
  • 620
    417300406 Plate
    Plate
  • 630
    207151444 Hex. Screw M5 X 14
    Hex. Screw M5 X 14
  • 640
    233251434 Flanged Elastic Nut M5
    Flanged Elastic Nut M5
  • 650
    516007493 Belt Gard Decal
    Belt Gard Decal
