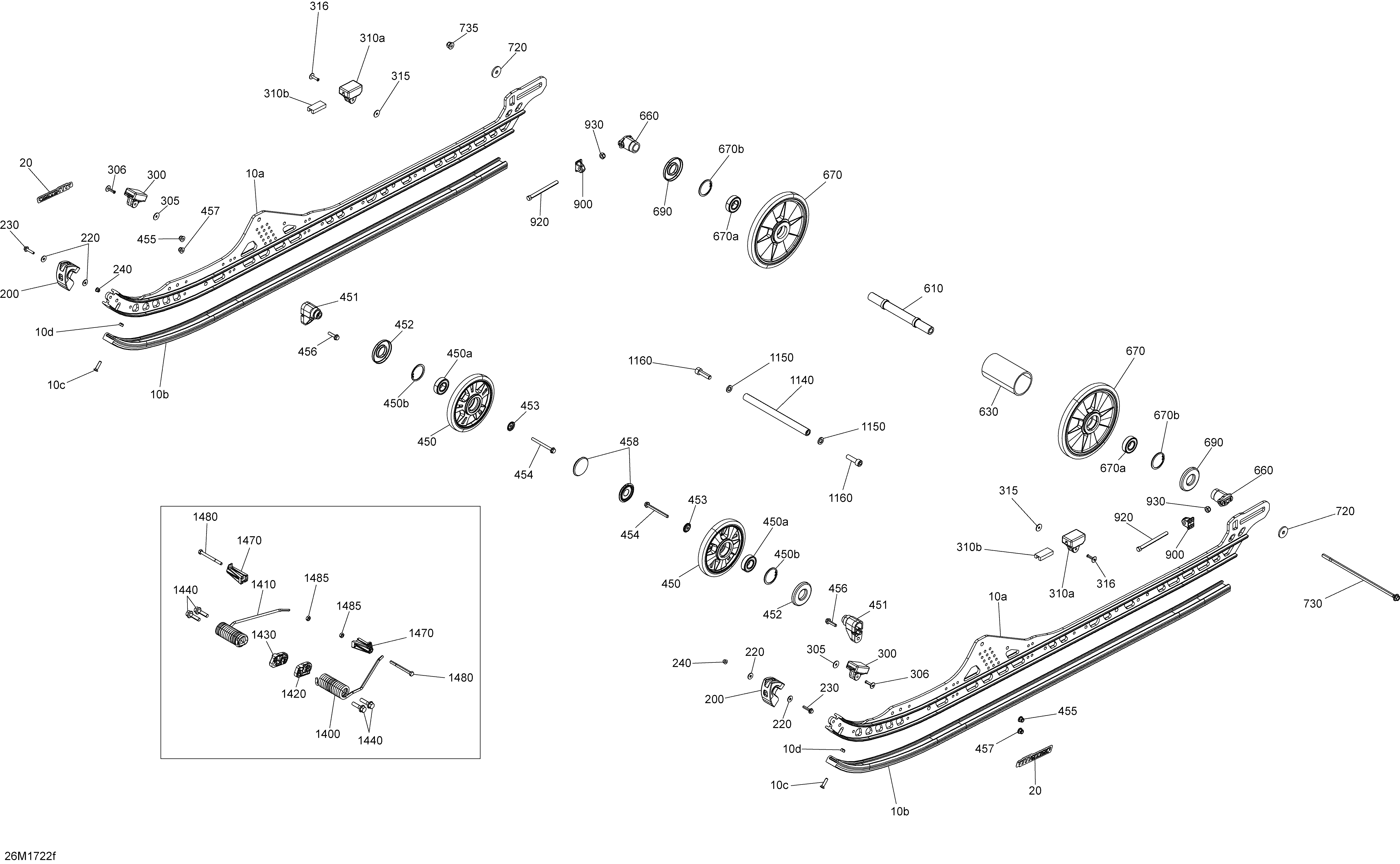

08- Rear Suspension - Inferior для BRP Ski-Doo SUMMIT - 850 E-TEC - 2017
-
№АртикулНазвание
-
10a503194510 White - Runner 154White - Runner 154
-
10a503194512 Yellow - Runner 154Yellow - Runner 154
-
10a503194514 White - Runner 165White - Runner 165
-
10a503194516 Yellow - Runner 165Yellow - Runner 165
-
10a503194287 Aluminum - Runner 154Aluminum - Runner 154
-
10a503194253 Aluminum - Runner 165Aluminum - Runner 165
-
10b503194251 Slidder 154Slidder 154
-
10b503194254 Slidder 165Slidder 165
-
10c208562531 Phillips Screw M6 X 25Phillips Screw M6 X 25
-
10d232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
20516006381 Runner DecalRunner Decal
-
200503194249 ProtectorProtector
-
220250200140 WasherWasher
-
230207652544 Hex. Flanged Screw M5 X 25Hex. Flanged Screw M5 X 25
-
240233251434 Flanged Elastic Nut M5Flanged Elastic Nut M5
-
300503190576 Rubber StopperRubber Stopper
-
305503191273 WasherWasher
-
306293150224 Rivet Pop 3/16Rivet Pop 3/16
-
310a503193101 Rubber StopperRubber Stopper
-
310b572084800 Reinforcement StopperReinforcement Stopper
-
315503191273 WasherWasher
-
316293150224 Rivet Pop 3/16Rivet Pop 3/16
-
450>450b503191755 Black Wheel Ass'y, 152 mmBlack Wheel Ass'y, 152 mm
-
450a503190396 Ball BearingBall Bearing
-
450b415129371 Retaining RingRetaining Ring
-
451503193894 Casted SupportCasted Support
-
452503190434 Labyrinth SealLabyrinth Seal
-
453503191820 Wheel Cup M6Wheel Cup M6
-
454207667056 Hex. Flange Screw M6 X 70Hex. Flange Screw M6 X 70
-
455233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
456207662556 Hex. Flange Screw M6 X 25Hex. Flange Screw M6 X 25
-
457233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
458503192771 Black - Wheel CapBlack - Wheel Cap
-
610503194508 Rear Wheell AxleRear Wheell Axle
-
630503194286 BushingBushing
-
660503194747 TipTip
-
670>670b503193098 Black Wheel Ass'y, 200 mmBlack Wheel Ass'y, 200 mm
-
670a503190396 Ball BearingBall Bearing
-
670b415129371 Retaining RingRetaining Ring
-
690503190434 Labyrinth SealLabyrinth Seal
-
720503194264 WasherWasher
-
730503194265 BoltBolt
-
735233281466 Elastic Flang Nut M8Elastic Flang Nut M8
-
900503194266 TensionnerTensionner
-
920503194267 Hex. Cap Screw M8 X 95Hex. Cap Screw M8 X 95
-
930232581414 Hex. Elastic Stop Nut M8Hex. Elastic Stop Nut M8
-
1140503191260 Axle StrapAxle Strap
-
1150503192496 WasherWasher
-
1160205503554 Socket Head Screw M10 X 35Socket Head Screw M10 X 35
-
1400503193825 LH Spring. Model with Ice ScratcherLH Spring. Model with Ice Scratcher
-
1410503193826 RH Spring. Model with Ice ScratcherRH Spring. Model with Ice Scratcher
-
1420503193881 Support LH. Model with Ice ScratcherSupport LH. Model with Ice Scratcher
-
1430503193882 Support RH. Model with Ice ScratcherSupport RH. Model with Ice Scratcher
-
1440207683054 Hex. Flanged Screw M8 X 30. Model with Ice ScratcherHex. Flanged Screw M8 X 30. Model with Ice Scratcher
-
1450233281466 Elastic Flang Nut M8. Model with Ice ScratcherElastic Flang Nut M8. Model with Ice Scratcher
-
1470503194143 Hook. Model with Ice ScratcherHook. Model with Ice Scratcher
-
1480207167054 Hex. Cap Screw M6 X 70. Model with Ice ScratcherHex. Cap Screw M6 X 70. Model with Ice Scratcher
-
1485232061414 Hex. Nut M6. Model with Ice ScratcherHex. Nut M6. Model with Ice Scratcher
-
1490233261466 Hex. Flanged Elastic Nut M6. Model with Ice ScratcherHex. Flanged Elastic Nut M6. Model with Ice Scratcher
-
1495414115200 Tie-Rap 180 mm. Model with Ice ScratcherTie-Rap 180 mm. Model with Ice Scratcher
