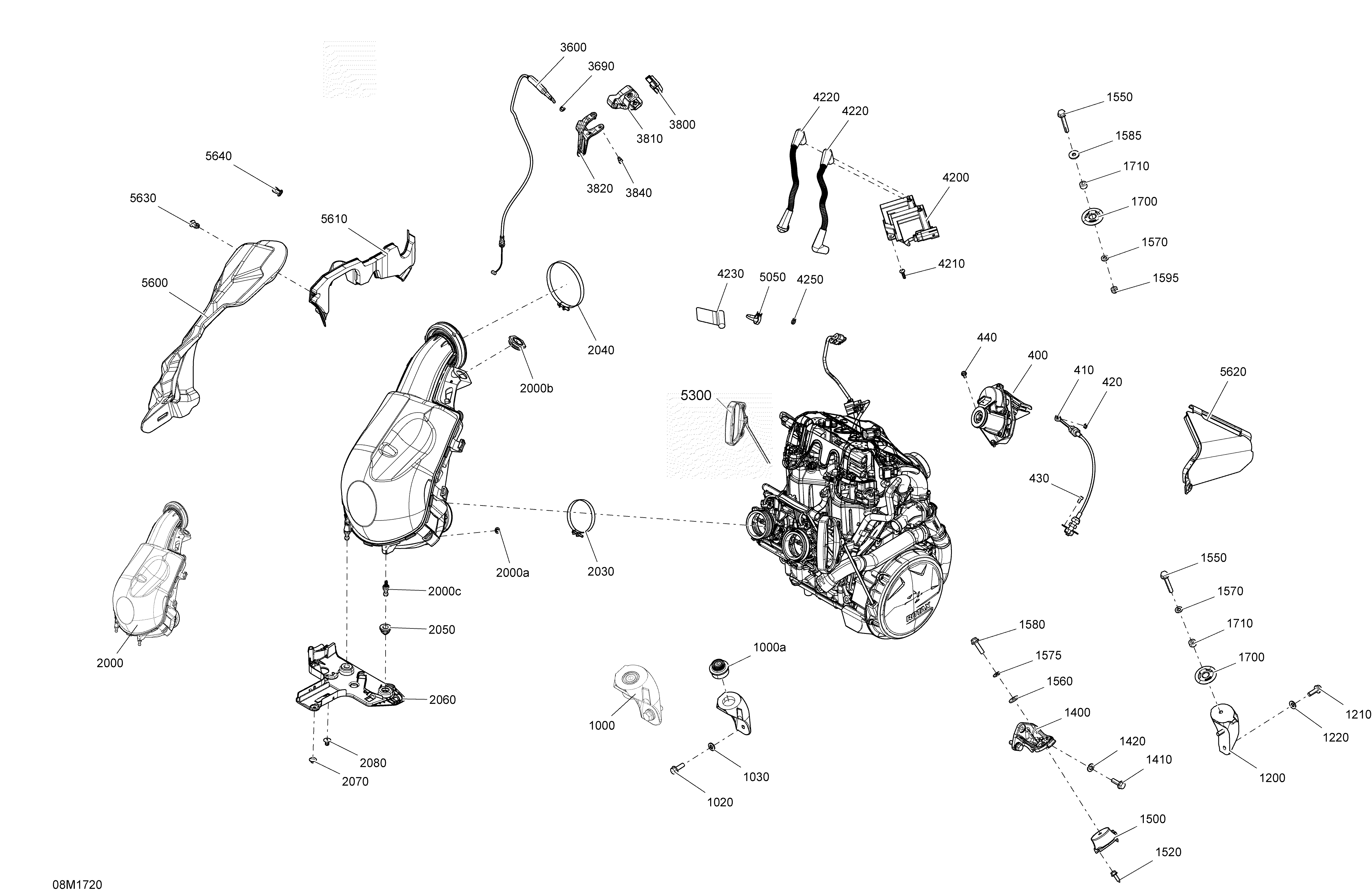

01- Engine - All Models для BRP Ski-Doo SUMMIT - 850 E-TEC - 2017

  • №
    Артикул
    Название
  • 150
    515175442 Tubing 6 mm
    Tubing 6 mm
  • 400
    420889431 Servo Motor Ass'y
    Servo Motor Ass'y
  • 410
    420997033 Bowden Cable Ass'y
    Bowden Cable Ass'y
  • 420
    293370122 Circlip
    Circlip
  • 430
    205551060 Socket Head Screw M5 X 10
    Socket Head Screw M5 X 10
  • 440
    207551044 Flanged Hex. Screw M5 X 10
    Flanged Hex. Screw M5 X 10
  • 1000
    512061136 Rear PTO Support. Includes 1000 to 1000a
    Rear PTO Support. Includes 1000 to 1000a
  • 1000a
    512060295 Rubber Mount
    Rubber Mount
  • 1010
    512061354 Spacer. Ref Service Bulletin 2018-8. Not Illustrated
    Spacer. Ref Service Bulletin 2018-8. Not Illustrated
  • 1020
    207582586 Hex. Flanged Screw M8 X 25, Scotch Grip
    Hex. Flanged Screw M8 X 25, Scotch Grip
  • 1030
    250200146 Conical Spring Washer M8
    Conical Spring Washer M8
  • 1200
    512061025 Front PTO Support
    Front PTO Support
  • 1210
    207582586 Hex. Flanged Screw M8 X 25, Scotch Grip
    Hex. Flanged Screw M8 X 25, Scotch Grip
  • 1220
    250200146 Conical Spring Washer M8
    Conical Spring Washer M8
  • 1400
    512061027 MAG Support
    MAG Support
  • 1400
    512061344 MAG Support. Ref Service Bulletin 2018-8
    MAG Support. Ref Service Bulletin 2018-8
  • 1410
    207582586 Hex. Flanged Screw M8 X 25, Scotch Grip
    Hex. Flanged Screw M8 X 25, Scotch Grip
  • 1420
    250200146 Conical Spring Washer M8
    Conical Spring Washer M8
  • 1500
    512060729 Rubber Mount
    Rubber Mount
  • 1510
    512061347 Shim. Ref Service Bulletin 2018-8. Not Illustrated
    Shim. Ref Service Bulletin 2018-8. Not Illustrated
  • 1520
    250000822 Hex. Flanged Screw M6 X 16
    Hex. Flanged Screw M6 X 16
  • 1550
    207585544 Hex. Flanged Screw M8 X 55
    Hex. Flanged Screw M8 X 55
  • 1550
    207086046 Hex Screw M8 X 60. Ref Service Bulletin 2018-8
    Hex Screw M8 X 60. Ref Service Bulletin 2018-8
  • 1560
    503183200 Washer, Yellow
    Washer, Yellow
  • 1560
    506151245 Washer. Ref Service Bulletin 2018-8
    Washer. Ref Service Bulletin 2018-8
  • 1570
    250200008 Flat Washer With Teflon 8 mm
    Flat Washer With Teflon 8 mm
  • 1570
    512061333 Washer. Ref Service Bulletin 2018-8
    Washer. Ref Service Bulletin 2018-8
  • 1575
    250200146 Conical Spring Washer M8
    Conical Spring Washer M8
  • 1580
    207683044 Hex. Flanged Screw M8 X 30
    Hex. Flanged Screw M8 X 30
  • 1580
    250000761 Torx Truss Screw M8 X 50. Ref Service Bulletin 2018-8
    Torx Truss Screw M8 X 50. Ref Service Bulletin 2018-8
  • 1585
    503183200 Washer, Yellow
    Washer, Yellow
  • 1595
    232581414 Hex. Elastic Stop Nut M8
    Hex. Elastic Stop Nut M8
  • 1700
    512061137 Engine Stopper
    Engine Stopper
  • 1700
    512061334 Limiter PTO. Ref Service Bulletin 2018-8
    Limiter PTO. Ref Service Bulletin 2018-8
  • 1710
    512061198 Spacer
    Spacer
  • 1710
    512061354 Spacer. Ref Service Bulletin 2018-8
    Spacer. Ref Service Bulletin 2018-8
  • 2000
    508000795 Primary Chamber Ass'y. Includes 2000 to 2000c
    Primary Chamber Ass'y. Includes 2000 to 2000c
  • 2000a
    732610072 Push Nut
    Push Nut
  • 2000b
    512061083 Rubber
    Rubber
  • 2000c
    420441840 Screw
    Screw
  • 2030
    293650212 GEMI Clamp
    GEMI Clamp
  • 2040
    293650247 Gemi Clamp
    Gemi Clamp
  • 2050
    420201630 Rubber Cap
    Rubber Cap
  • 2060
    512061086 AirBox Support
    AirBox Support
  • 2070
    293150103 Black Pop Rivet 3/16''
    Black Pop Rivet 3/16''
  • 2080
    293150104 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 3600
    512061066 Throttle Cable
    Throttle Cable
  • 3690
    414274500 Circlip
    Circlip
  • 3800
    512060859 Upper Housing
    Upper Housing
  • 3810
    512060860 Lower Housing
    Lower Housing
  • 3820
    512061167 Throttle Ass'y
    Throttle Ass'y
  • 3840
    732601143 Flanged Screw
    Flanged Screw
  • 4200
    512061168 Ignition Coil
    Ignition Coil
  • 4210
    250000760 Torx Screw Truss Head PT.K50 X 20
    Torx Screw Truss Head PT.K50 X 20
  • 4220
    512061166 Ignition Cable
    Ignition Cable
  • 4230
    516007661 Warning Decal, Injectors
    Warning Decal, Injectors
  • 4240
    512061238 Spark Plug Wire Holder
    Spark Plug Wire Holder
  • 4250
    293750002 Tie-Rap 142 mm
    Tie-Rap 142 mm
  • 5050
    512060993 Clamp
    Clamp
  • 5300
    512060136 Starter Grip. Manual Start
    Starter Grip. Manual Start
  • 5600
    512061213 Acoustic Cover
    Acoustic Cover
  • 5610
    512061215 LH Acoustic Cover
    LH Acoustic Cover
  • 5620
    512061216 RH Acoustic Cover
    RH Acoustic Cover
  • 5630
    293150089 Tuflok Plastic Rivet
    Tuflok Plastic Rivet
  • 5640
    250000725 Screw M4 X 16
    Screw M4 X 16
