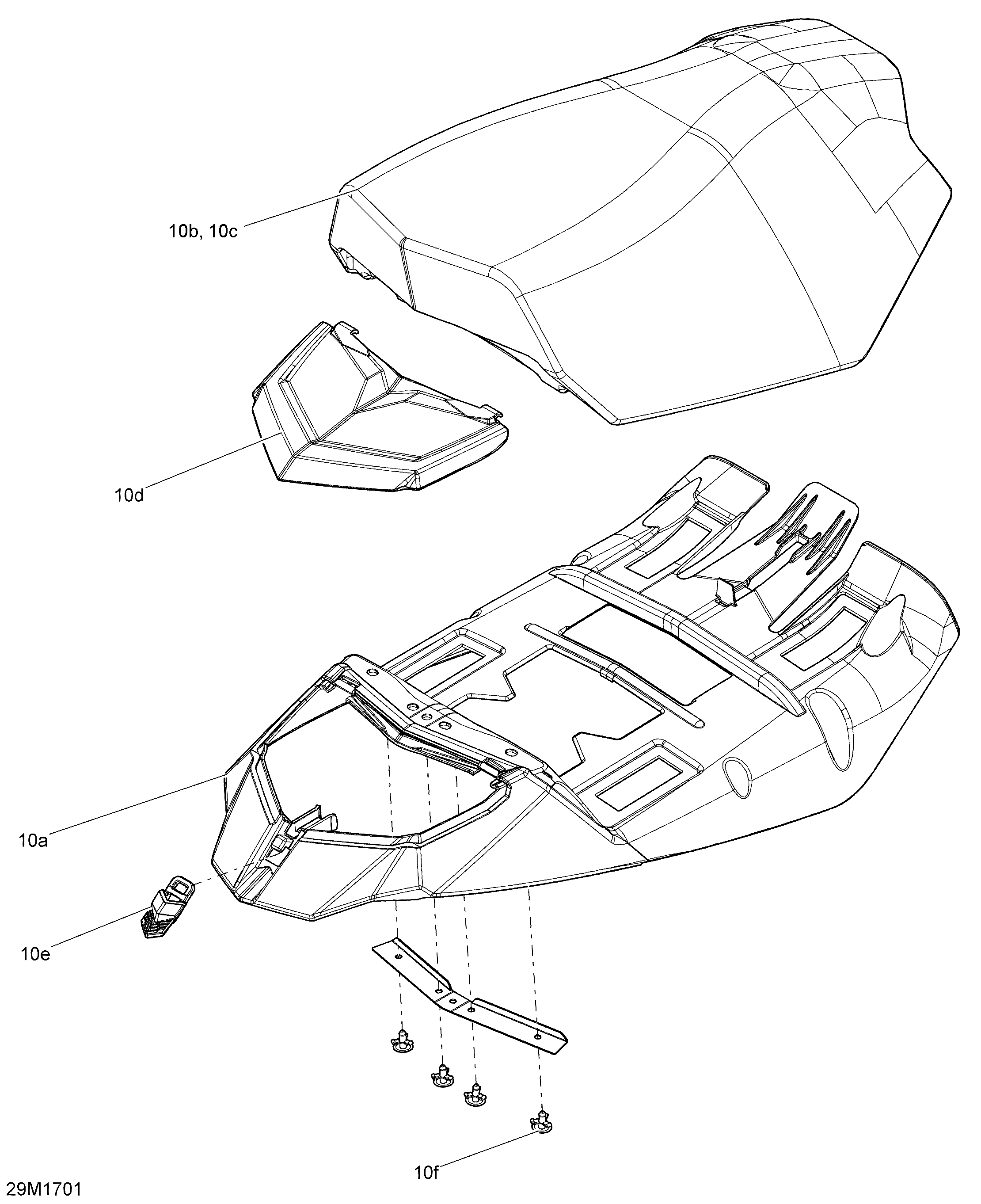

09- Seat для BRP Ski-Doo SUMMIT - 2-STROKE - 600HO E-TEC - 2017
-
№АртикулНазвание
-
10a510005574 Seat Base, Black. Package SP Black, Model CXHC, CXHD, CXHESeat Base, Black. Package SP Black, Model CXHC, CXHD, CXHE
-
10a510005938 Seat Base, Yellow Sunburst. Package SP Yellow, Model CXHA, CXHB, CDHB, CDHC, CCHA, CCHBSeat Base, Yellow Sunburst. Package SP Yellow, Model CXHA, CXHB, CDHB, CDHC, CCHA, CCHB
-
10b510005576 Seat FoamSeat Foam
-
10c510005729 Seat Cover, All Black. Package SP Black, Model CXHC, CXHD, CXHESeat Cover, All Black. Package SP Black, Model CXHC, CXHD, CXHE
-
10c510006282 Seat Cover, Black/Yellow. Package SP Yellow, Model CXHA, CXHB, CDHB, CDHC, CCHA, CCHBSeat Cover, Black/Yellow. Package SP Yellow, Model CXHA, CXHB, CDHB, CDHC, CCHA, CCHB
-
10d510005622 Cover Black. Package SP Black, Model CXHC, CXHD, CXHECover Black. Package SP Black, Model CXHC, CXHD, CXHE
-
10d510005940 Cover, Yellow Sunburst. Package SP Yellow, Model CXHA, CXHB, CDHB, CDHC, CCHA, CCHBCover, Yellow Sunburst. Package SP Yellow, Model CXHA, CXHB, CDHB, CDHC, CCHA, CCHB
-
10e510005623 LatchLatch
-
10f293150067 RivetRivet
