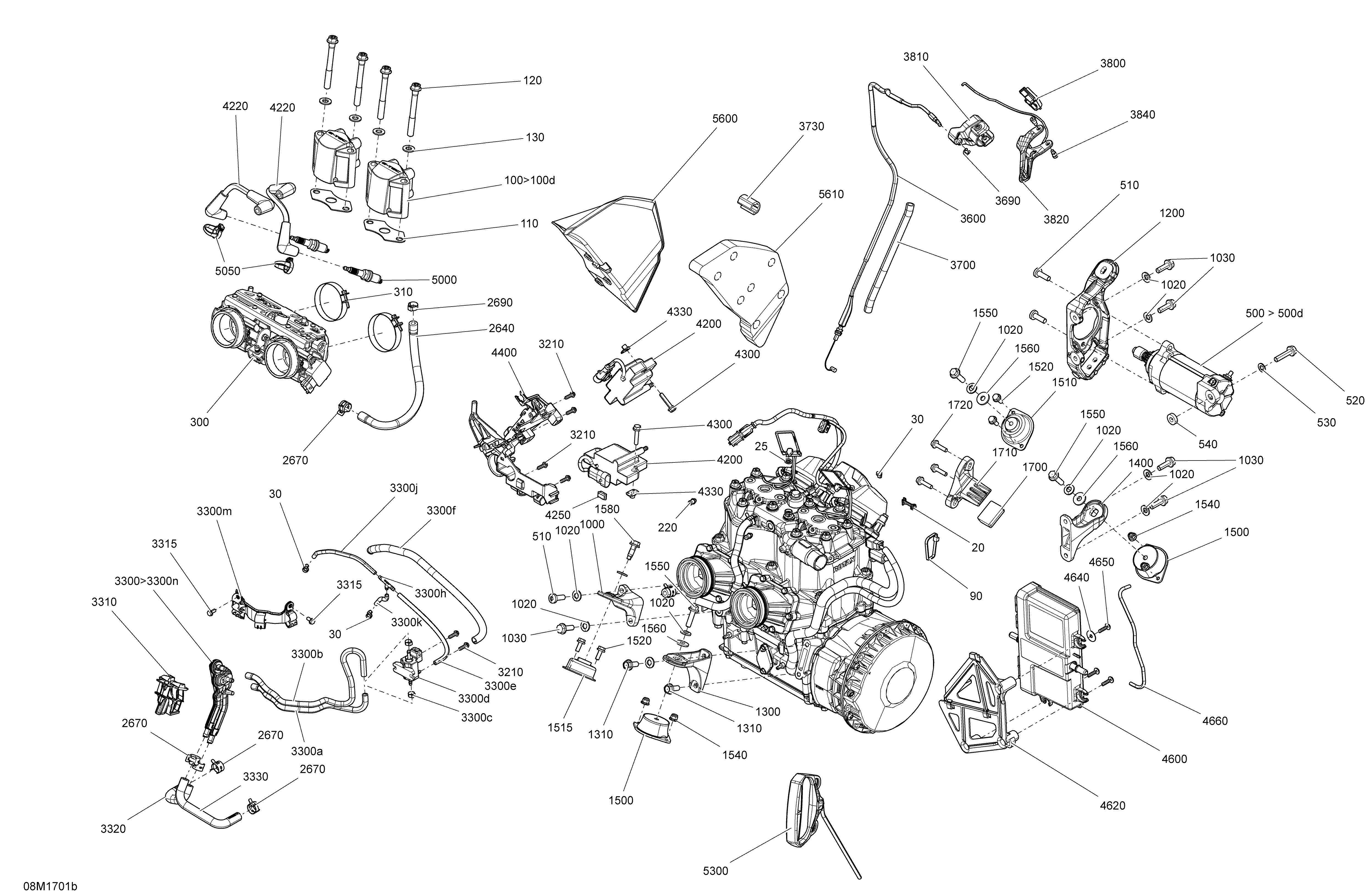

01- Engine And Engine Support для BRP Ski-Doo SUMMIT - 2-STROKE - 600HO E-TEC - 2017

  • №
    Артикул
    Название
  • 20
    515177770 Locker
    Locker
  • 25
    732610072 Push Nut
    Push Nut
  • 30
    293750001 Tie-Rap 94 mm
    Tie-Rap 94 mm
  • 90
    293750008 Tie-Rap 350 mm
    Tie-Rap 350 mm
  • 100>100d
    512061233 Fuel Injector. Includes 100 to 100d
    Fuel Injector. Includes 100 to 100d
  • 100a
    415129497 Crush Ring
    Crush Ring
  • 100b
    415129498 O-Ring
    O-Ring
  • 100c
    415129499 O-Ring
    O-Ring
  • 100d
    415129942 Fuel Injector Cover
    Fuel Injector Cover
  • 110
    420430930 Gasket
    Gasket
  • 120
    420441187 Flanged Torx Screw M10 X 90 -SW 13/T50
    Flanged Torx Screw M10 X 90 -SW 13/T50
  • 130
    234001410 Flat Washer 10 mm
    Flat Washer 10 mm
  • 220
    420924724 Hose Nipple
    Hose Nipple
  • 300
    420889201 Throttle Body
    Throttle Body
  • 310
    293650158 Gemi Clamp
    Gemi Clamp
  • 500>500d
    515177389 Starter. Includes 500 to 500d
    Starter. Includes 500 to 500d
  • 500a
    415129441 Clutch Kit
    Clutch Kit
  • 500b
    415129333 Brush Kit
    Brush Kit
  • 500c
    415129341 Starter Bolt
    Starter Bolt
  • 500d
    415129342 O-Ring Kit
    O-Ring Kit
  • 510
    250000752 Torx Screw M8 X 1.25 X 25, Scotch Grip. with Electric Strart
    Torx Screw M8 X 1.25 X 25, Scotch Grip. with Electric Strart
  • 520
    207583544 Hex Flanged Screw M8 X 35, Scotch Grip. with Electric Strart
    Hex Flanged Screw M8 X 35, Scotch Grip. with Electric Strart
  • 530
    250200008 Flat Washer With Teflon 8 mm. with Electric Strart
    Flat Washer With Teflon 8 mm. with Electric Strart
  • 540
    515176500 Washer. with Electric Start. Manuf Before July 21rst 2016
    Washer. with Electric Start. Manuf Before July 21rst 2016
  • 1000
    512060478 Rear Support, PTO
    Rear Support, PTO
  • 1020
    250200146 Conical Spring Washer M8
    Conical Spring Washer M8
  • 1030
    207582586 Hex. Flanged Screw M8 X 25, Scotch Grip
    Hex. Flanged Screw M8 X 25, Scotch Grip
  • 1200
    512060699 Front Support, PTO
    Front Support, PTO
  • 1300
    512060559 Rear Support, MAG
    Rear Support, MAG
  • 1310
    207582044 Hex. Flanged Screw M8 X 20, Scotch Grip
    Hex. Flanged Screw M8 X 20, Scotch Grip
  • 1400
    512060469 Front Support, MAG
    Front Support, MAG
  • 1500
    512060729 Rubber Mount
    Rubber Mount
  • 1510
    512060387 Rubber Mount
    Rubber Mount
  • 1515
    512060448 Rubber Mount
    Rubber Mount
  • 1520
    207561644 Hex.Fla. Screw M6 X 1.0 X 16,Scotch Grip
    Hex.Fla. Screw M6 X 1.0 X 16,Scotch Grip
  • 1540
    233261414 Hex. Flanged Elastic Nut M6 x 1.0
    Hex. Flanged Elastic Nut M6 x 1.0
  • 1550
    207683044 Hex. Flanged Screw M8 X 1.25 X 30
    Hex. Flanged Screw M8 X 1.25 X 30
  • 1560
    503183200 Washer, Yellow
    Washer, Yellow
  • 1580
    250000796 Hex. Flanged Screw M8 X 1.25 X 25
    Hex. Flanged Screw M8 X 1.25 X 25
  • 1700
    512060766 Stopper
    Stopper
  • 1710
    512060576 Stopper Support
    Stopper Support
  • 1720
    207562544 Hex. Flanged Screw M6X1.0X25,Scotch Gr
    Hex. Flanged Screw M6X1.0X25,Scotch Gr
  • 2640
    512060944 Bleeder's Collector Outlet Hose
    Bleeder's Collector Outlet Hose
  • 2670
    293650214 Norma Spring Clamp
    Norma Spring Clamp
  • 2690
    293650046 Oetiker Clamp, 14.5-706R
    Oetiker Clamp, 14.5-706R
  • 3210
    241151640 Hex. Flanged Screw K50 X 2.24 X 16
    Hex. Flanged Screw K50 X 2.24 X 16
  • 3300>3300n
    512060692 Manifold. Includes 3300 to 3300n
    Manifold. Includes 3300 to 3300n
  • 3300a
    415080200 Hose, Polyurethane, iD 5.7mm
    Hose, Polyurethane, iD 5.7mm
  • 3300b
    415080200 Hose, Polyurethane, iD 5.7mm
    Hose, Polyurethane, iD 5.7mm
  • 3300c
    293650234 Crimp Clamp
    Crimp Clamp
  • 3300d
    512061078 Solenoid Valve
    Solenoid Valve
  • 3300e
    270000374 Hose 4.3 mm
    Hose 4.3 mm
  • 3300f
    409901700 Tubing 9 mm
    Tubing 9 mm
  • 3300h
    293710068 T-Fitting
    T-Fitting
  • 3300j
    270000374 Hose 4.3 mm
    Hose 4.3 mm
  • 3300k
    270000374 Hose 4.3 mm
    Hose 4.3 mm
  • 3300m
    512060827 Hose Support
    Hose Support
  • 3300n
    512060930 Spring
    Spring
  • 3310
    512060769 Manifold Support
    Manifold Support
  • 3315
    210251150 Hex. Flanged Screw M5 X 0.8 X 11
    Hex. Flanged Screw M5 X 0.8 X 11
  • 3320
    512060695 LH Formed Hose
    LH Formed Hose
  • 3330
    512060694 RH Formed Hose
    RH Formed Hose
  • 3600
    512060851 Throttle Cable
    Throttle Cable
  • 3690
    414274500 Circlip
    Circlip
  • 3700
    409901700 Tubing 9 mm
    Tubing 9 mm
  • 3730
    512060313 Protector
    Protector
  • 3800
    512060859 Upper Housing
    Upper Housing
  • 3810
    512060860 Lower Housing
    Lower Housing
  • 3820
    512061051 Handle Ass'y (built-in heating element)
    Handle Ass'y (built-in heating element)
  • 3840
    732601143 Flanged Screw
    Flanged Screw
  • 4200
    512060953 Ignition Coil
    Ignition Coil
  • 4220
    512061126 Ignition Cable
    Ignition Cable
  • 4250
    710000992 Clip
    Clip
  • 4300
    250000253 Flanged Hex. Screw M6 X 1.0 X 30
    Flanged Hex. Screw M6 X 1.0 X 30
  • 4330
    293100003 Nut Welded, M6
    Nut Welded, M6
  • 4400
    512060888 Ignition Coils Support
    Ignition Coils Support
  • 4600
    512060780 Calibrated Module
    Calibrated Module
  • 4620
    512060858 Calibrated Module Support
    Calibrated Module Support
  • 4640
    250200040 Flat Washer
    Flat Washer
  • 4650
    250000760 Torx Screw Truss Head K50X20 T20
    Torx Screw Truss Head K50X20 T20
  • 4660
    415080100 LINE-PRIMER, iD 3.7mm
    LINE-PRIMER, iD 3.7mm
  • 5000
    415129375 Spark Plug NGK PZFR6F
    Spark Plug NGK PZFR6F
  • 5050
    512060993 Clamp
    Clamp
  • 5300
    512060136 Starter Grip. with Manuel Start
    Starter Grip. with Manuel Start
  • 5600
    512060847 Noise Shield
    Noise Shield
  • 5610
    512060958 Inner Acoustic Foam
    Inner Acoustic Foam
