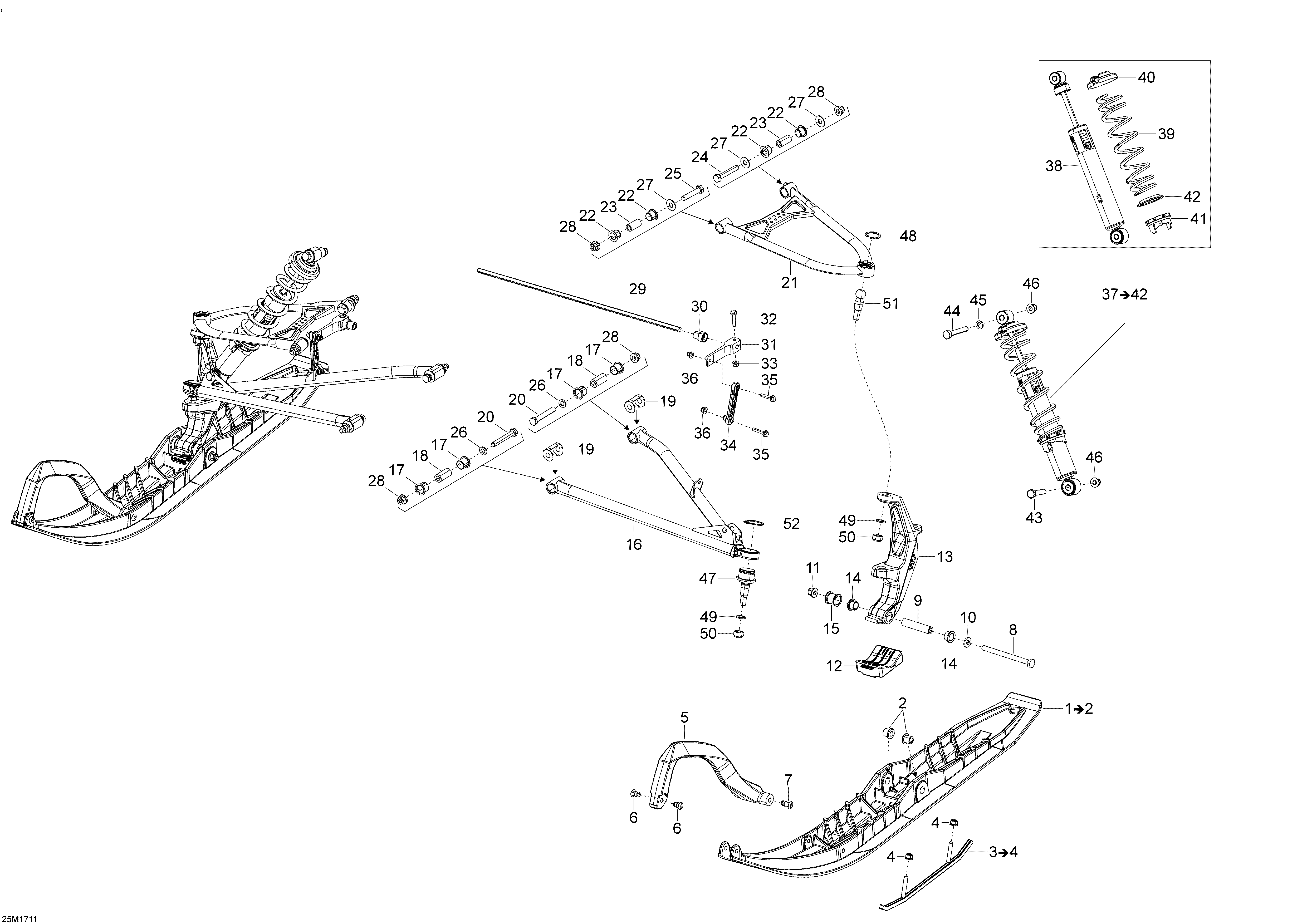

07- Front Suspension And Ski для BRP Ski-Doo EXPEDITION - 4-STROKE - LE-SE - 2017
-
№АртикулНазвание
-
1505073227 Black DS 2 Ski. Includes 1 To 2Black DS 2 Ski. Includes 1 To 2
-
2505071781 Ski BushingSki Bushing
-
3860201044 Carbide Runner Kit. Includes 3 To 4Carbide Runner Kit. Includes 3 To 4
-
4233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
5505072976 Black HandleBlack Handle
-
6505071812 RetainerRetainer
-
7505072133 RetainerRetainer
-
8230003044 Hex. Screw M10 X 130Hex. Screw M10 X 130
-
9506133300 SpacerSpacer
-
10732900049 WasherWasher
-
11233201414 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
12505072594 Ski StopperSki Stopper
-
13505073628 LH Ski Leg. Model LELH Ski Leg. Model LE
-
13505073630 LH Ski Leg. Model SELH Ski Leg. Model SE
-
13505073629 RH Ski Leg. Model LERH Ski Leg. Model LE
-
13505073631 RH Ski Leg. Model SERH Ski Leg. Model SE
-
14505072690 Leg BushingLeg Bushing
-
15505071999 SpacerSpacer
-
16505073584 Lower RH ArmLower RH Arm
-
16505073583 Lower LH ArmLower LH Arm
-
17505073330 CushionCushion
-
18505072209 BushingBushing
-
19505072634 Wear PlateWear Plate
-
20250000291 Screw Hex. M10 X 70Screw Hex. M10 X 70
-
21505073588 Uper LH ArmUper LH Arm
-
21505073589 Uper RH ArmUper RH Arm
-
22505073329 Swivel BushingSwivel Bushing
-
23505072143 BushingBushing
-
24250000290 Screw Hex. M10 X 60Screw Hex. M10 X 60
-
25250000289 Screw Hex. M10 X 50Screw Hex. M10 X 50
-
26503189564 WasherWasher
-
27505072392 WasherWasher
-
28250100165 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
29505072602 StabilisatorStabilisator
-
30505072064 BushingBushing
-
31505072394 Stabilisator LeverStabilisator Lever
-
32207663046 Flanged Hex. Screw M6 X 30Flanged Hex. Screw M6 X 30
-
33233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
34505072204 Double Ball Joint LinkDouble Ball Joint Link
-
35207663046 Flanged Hex. Screw M6 X 30Flanged Hex. Screw M6 X 30
-
36233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
38505073342 Front Shock (EUR). Model EuropeFront Shock (EUR). Model Europe
-
38505072517 Front Shock. Model North AmericaFront Shock. Model North America
-
39505072879 White Spring 300mm-18N/MM. Model EuropeWhite Spring 300mm-18N/MM. Model Europe
-
39505073827 Spring. Model North AmericaSpring. Model North America
-
40706200881 Spring Stopper. Model EuropeSpring Stopper. Model Europe
-
40230076 Spring Seat. Model North AmericaSpring Seat. Model North America
-
41505073625 Adjustment CamAdjustment Cam
-
42503191872 Spring GuideSpring Guide
-
43207005544 Hex. Screw M10 X 55Hex. Screw M10 X 55
-
44207006544 Hex. Screw M10 X 65Hex. Screw M10 X 65
-
45503189564 WasherWasher
-
46233201414 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
47505073636 Ball JointBall Joint
-
48293370070 CirclipCirclip
-
49234021410 Flat Washer 12 mmFlat Washer 12 mm
-
50250100089 Hex. Elastic Hex. Nut M12Hex. Elastic Hex. Nut M12
-
51505072913 Upper Ball JointUpper Ball Joint
-
52293370035 CirclipCirclip
