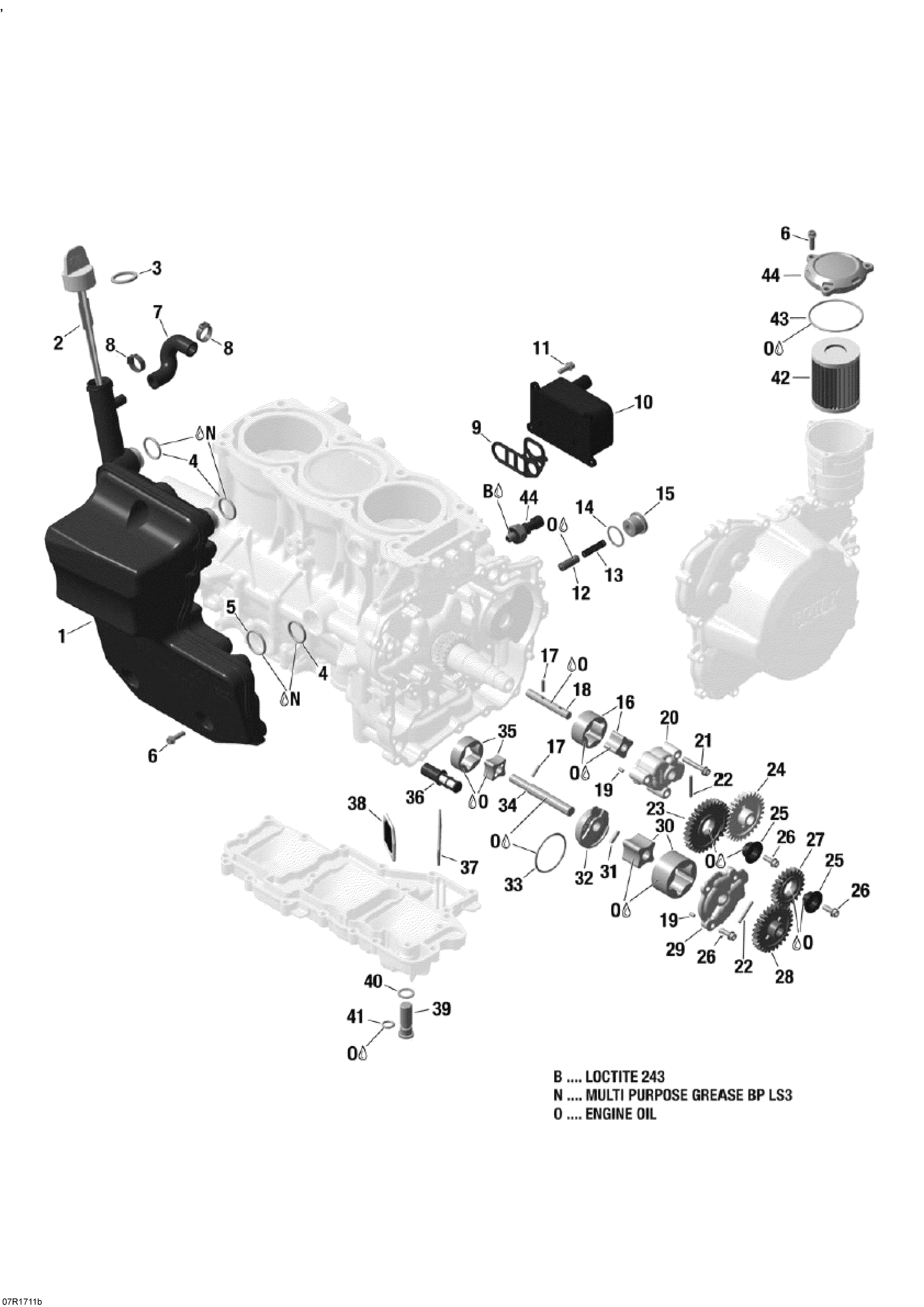

01- Engine Lubrication - 1200 4-TEC для BRP Ski-Doo EXPEDITION - 4-STROKE - LE-SE - 2017

  • №
    Артикул
    Название
  • 1
    420656386 Oil Tank Ass'y. Includes 1 To 5
    Oil Tank Ass'y. Includes 1 To 5
  • 2
    420856661 Oil Lever Tube Ass'y. Includes 2 To 3
    Oil Lever Tube Ass'y. Includes 2 To 3
  • 3
    420431790 Gasket Ring
    Gasket Ring
  • 4
    420931634 O-Ring. Included In Gasket Kit
    O-Ring. Included In Gasket Kit
  • 5
    420430068 O-Ring. Included In Gasket Kit
    O-Ring. Included In Gasket Kit
  • 6
    420440207 Flanged Torx Screw M6 X 20
    Flanged Torx Screw M6 X 20
  • 7
    420460021 Air Vent Line
    Air Vent Line
  • 8
    420951273 Clamp
    Clamp
  • 9
    420431283 Gasket. Included In Gasket Kit
    Gasket. Included In Gasket Kit
  • 10
    420891914 Oil Radiator
    Oil Radiator
  • 11
    420440234 Flanged Torx Screw M6 X 25
    Flanged Torx Screw M6 X 25
  • 12
    420256510 Pressure Regulating Piston
    Pressure Regulating Piston
  • 13
    420239445 Spring
    Spring
  • 14
    420650465 Gasket Ring. Included In Gasket Kit
    Gasket Ring. Included In Gasket Kit
  • 15
    420640279 Screw Plug M22 X 1.5
    Screw Plug M22 X 1.5
  • 16
    420256681 Oil Pump Rotor, Suction
    Oil Pump Rotor, Suction
  • 17
    420232731 Needle Pin
    Needle Pin
  • 18
    420837911 Oil Pump Shaft
    Oil Pump Shaft
  • 19
    420929075 Needle Pin
    Needle Pin
  • 20
    420611861 Oil Pump Housing
    Oil Pump Housing
  • 21
    420440274 Flanged Torx Screw M6 X 35
    Flanged Torx Screw M6 X 35
  • 22
    420232431 Needle Pin
    Needle Pin
  • 23
    420835055 Idle Gear, 31 Teeth
    Idle Gear, 31 Teeth
  • 24
    420834882 Oil Pump Gear, 29 Teeth
    Oil Pump Gear, 29 Teeth
  • 25
    420947396 Graduated Spacer
    Graduated Spacer
  • 26
    420440162 Flanged Torx Screw M6 X 16
    Flanged Torx Screw M6 X 16
  • 27
    420835051 Idle Gear, 22 Teeth
    Idle Gear, 22 Teeth
  • 28
    420834887 Oil Pump Gear, 28 Teeth
    Oil Pump Gear, 28 Teeth
  • 29
    420611980 Oil Pump Cover
    Oil Pump Cover
  • 30
    420256831 Oil Pump Rotor
    Oil Pump Rotor
  • 31
    420632221 Needle Pin
    Needle Pin
  • 32
    420611950 Oil Pump Cover
    Oil Pump Cover
  • 33
    420631830 O-Ring. Included In Gasket Kit
    O-Ring. Included In Gasket Kit
  • 34
    420837915 Oil Pump Shaft
    Oil Pump Shaft
  • 35
    420256671 Oil Pump Rotor, Pressure
    Oil Pump Rotor, Pressure
  • 36
    420856658 Oil Sieve
    Oil Sieve
  • 37
    420856650 Oil Sieve
    Oil Sieve
  • 38
    420856655 Oil Sieve
    Oil Sieve
  • 39
    420941841 Screw Plug M14 X 1.5
    Screw Plug M14 X 1.5
  • 40
    420230500 Gasket Ring. Included In Gasket Kit
    Gasket Ring. Included In Gasket Kit
  • 41
    420430115 O-Ring. Included In Gasket Kit
    O-Ring. Included In Gasket Kit
  • 42
    420956124 Oil Filter
    Oil Filter
  • 43
    420650500 O-Ring. Included In Gasket Kit
    O-Ring. Included In Gasket Kit
  • 44
    420612132 Oil Filter Cover
    Oil Filter Cover
  • 45
    420256915 Oil Pressure Switch
    Oil Pressure Switch
