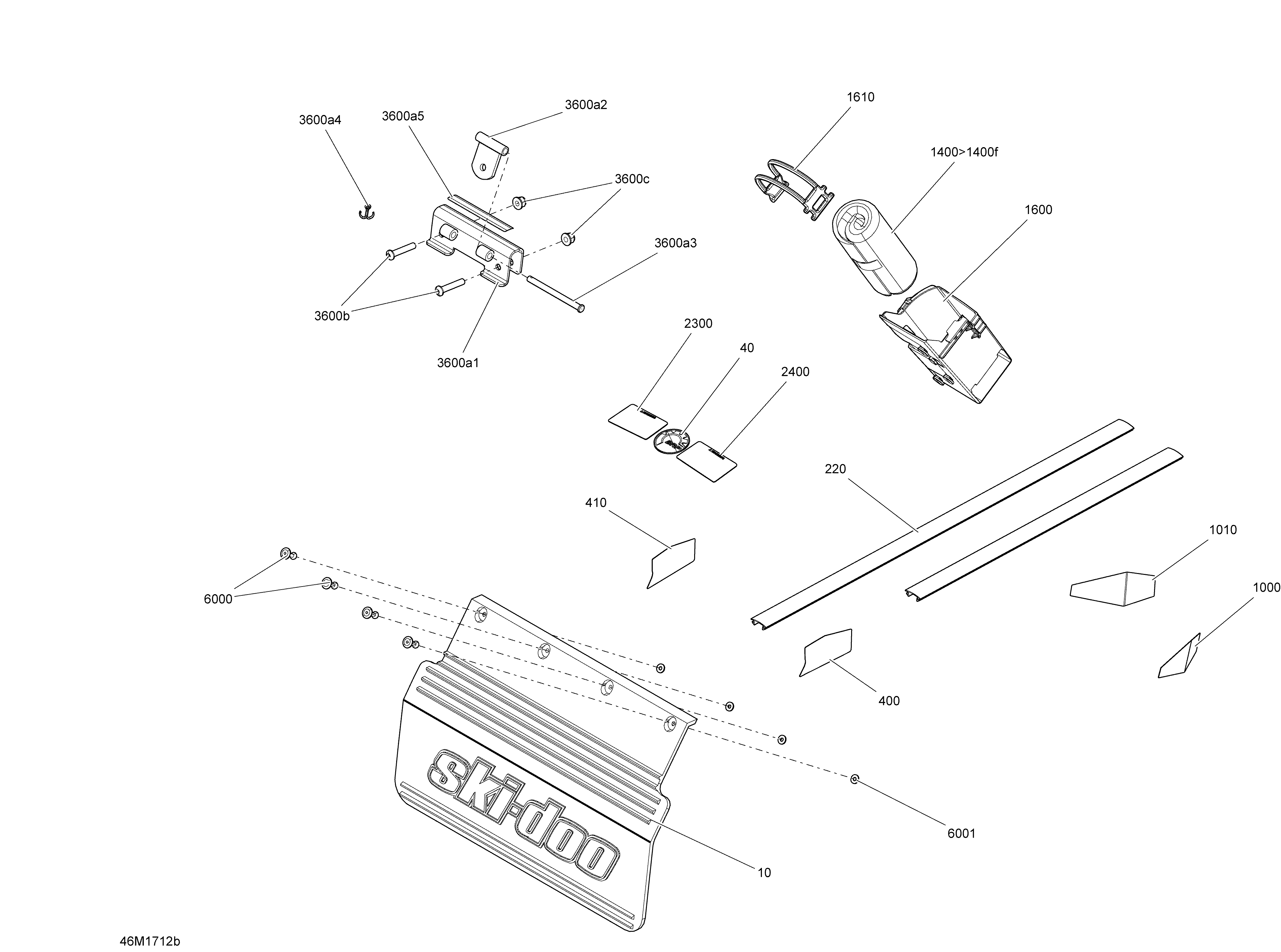

09- Utilities - All Models для BRP Ski-Doo EXPEDITION - 2-STROKE - SPORT - 2017
-
№АртикулНазвание
-
10520000949 Snow GuardSnow Guard
-
40516006887 BRP Logo, 48 mmBRP Logo, 48 mm
-
220520000829 Radiator TrimRadiator Trim
-
400520000881 Red RH Rear ReflectorRed RH Rear Reflector
-
410520000880 Red LH Rear ReflectorRed LH Rear Reflector
-
1000520000718 Yellow RH Front ReflectorYellow RH Front Reflector
-
1010520000719 Yellow LH Front ReflectorYellow LH Front Reflector
-
1400>1400f520001670 Tools Kit. Includes 1400 to 1400fTools Kit. Includes 1400 to 1400f
-
1400a529000004 Screw DriverScrew Driver
-
1400b529000046 Set Key, 16/21 mmSet Key, 16/21 mm
-
1400c529000002 Fork Wrench, 10/13 mmFork Wrench, 10/13 mm
-
1400d412500200 Starter Rope, MeterStarter Rope, Meter
-
1400e529000060 Starter GripStarter Grip
-
1400f520001499 WrenchWrench
-
1600520000894 Tool Kit RackTool Kit Rack
-
1610520000528 LatchLatch
-
2300516006908 Warning DecalWarning Decal
-
2400516005587 RH Warning Decal, SafetyRH Warning Decal, Safety
-
3600a1511000768 SupportSupport
-
3600a2511000521 Hitch Plate WeldedHitch Plate Welded
-
3600a3511000520 Clevis PinClevis Pin
-
3600a4371800200 Cotter PinCotter Pin
-
3600a5516004568 Warning Decal, SecurityWarning Decal, Security
-
3600b205484546 Socket Head Screw M8 X 45Socket Head Screw M8 X 45
-
3600c233281466 Elastic Flang Nut M8Elastic Flang Nut M8
-
6000293150108 Pop Rivet 3/16''Pop Rivet 3/16''
-
6000293150101 Pop Rivet 3/16''Pop Rivet 3/16''
-
6001517124300 WasherWasher
