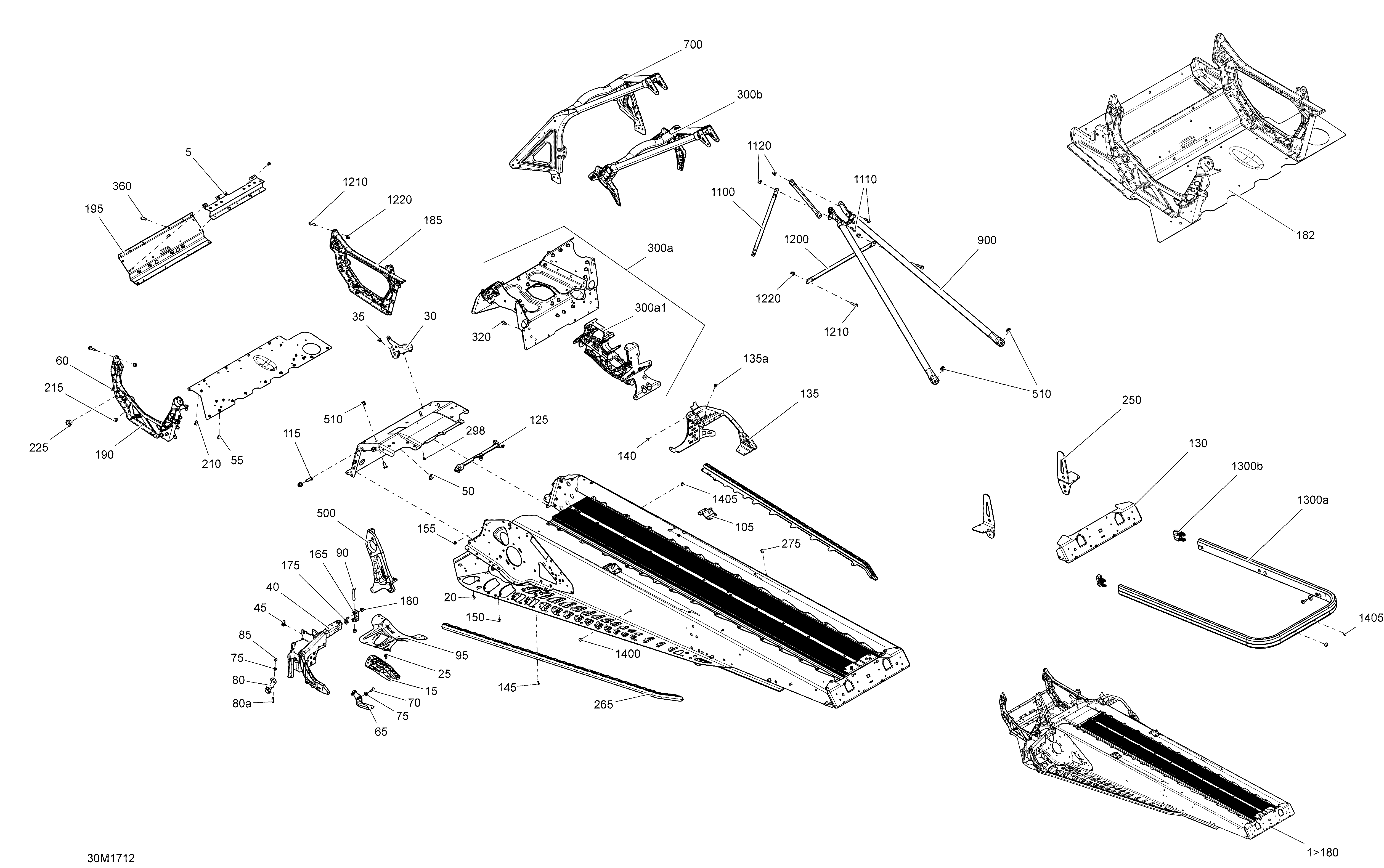

09- Frame - All Models для BRP Ski-Doo EXPEDITION - 2-STROKE - SPORT - 2017

№

Артикул

Название
1>180

415130106 Frame Assy. Expedition. Includes 1 to 180

Frame Assy. Expedition. Includes 1 to 180
5

518326120 Engine Support

Engine Support
15

518325782 RH Deflector

RH Deflector
15

518325783 LH Deflector

LH Deflector
20

293150104 Pop Rivet 3/16''

Pop Rivet 3/16''
25

207561244 Hex. Flanged Screw M6 X 12, Scotch Grip

Hex. Flanged Screw M6 X 12, Scotch Grip
30

518325559 RH Engine Support

RH Engine Support
35

293150096 Hemlock Rivet, 6.5 mm

Hemlock Rivet, 6.5 mm
40

518326820 LH Stirup

LH Stirup
45

250000079 Panel Nut M5 X 0.8

Panel Nut M5 X 0.8
50

293730052 Black Plug

Black Plug
55

293150174 Hemlock Rivet, 6.4 mm

Hemlock Rivet, 6.4 mm
60

293150191 Monobolt Rivet, 4.8 mm

Monobolt Rivet, 4.8 mm
65

518326960 Support

Support
70

250000536 Tork Screw M6 X 18

Tork Screw M6 X 18
75

250200039 Flat Washer

Flat Washer
80

518326986 Attach. Includes 80 to 80a

Attach. Includes 80 to 80a
80a

250300027 Clinch Stud M6 X 20

Clinch Stud M6 X 20
85

232561414 Elastic Stop Nut M6

Elastic Stop Nut M6
90

250000535 Torx Screw M8 X 55

Torx Screw M8 X 55
95

518324874 RH Reinforcement

RH Reinforcement
95

518324875 LH Reinforcement

LH Reinforcement
105

518325973 RH Rear Base

RH Rear Base
105

518325974 LH Rear Base

LH Rear Base
115

250300038 Clinch Stud

Clinch Stud
125

518326656 Seal

Seal
130

518327105 Rear Cap

Rear Cap
135

518328938 RH Stirup. Includes 135 to 135a

RH Stirup. Includes 135 to 135a
135a

390909200 Avex Rivet

Avex Rivet
140

293730042 Full Moon Dart 5 mm

Full Moon Dart 5 mm
145

390909100 Avex Rivet

Avex Rivet
150

293150144 Stavex Rivet

Stavex Rivet
155

293150146 Henrob Rivet

Henrob Rivet
165

518326961 U-Attach

U-Attach
175

250000534 Tork Screw M6 X 16

Tork Screw M6 X 16
180

233061414 Hex. Flanged Nut M6

Hex. Flanged Nut M6
182

518327568 E Module. Includes 182 to 275

E Module. Includes 182 to 275
185

518326795 RH Member

RH Member
190

518325558 LH Member

LH Member
195

518325818 Front Member. Includes 195 to 195b

Front Member. Includes 195 to 195b
210

293150120 Hemlock Rivet 6.5 mm

Hemlock Rivet 6.5 mm
215

293150119 Hemlock Rivet, 6.5 mm

Hemlock Rivet, 6.5 mm
225

505073317 Leg Cushion

Leg Cushion
250

518325955 RH Slide Bracket

RH Slide Bracket
250

518325956 LH Slide Bracket

LH Slide Bracket
265

518325159 RH Roller

RH Roller
265

518325160 LH Roller

LH Roller
275

293150147 Hemlock Rivet

Hemlock Rivet
298

390402400 Pop Rivet 3/16''

Pop Rivet 3/16''
300a

518328327 Cross Member S Module. Includes 300a to 300a1

Cross Member S Module. Includes 300a to 300a1
300a1

518327487 Front Suspension Support

Front Suspension Support
300b

518326975 Front Member

Front Member
320

250000822 Hex. Flanged Screw M6 X 16

Hex. Flanged Screw M6 X 16
360

293150182 Monobolt Rivet 6.4

Monobolt Rivet 6.4
500

518328346 Pulley Support

Pulley Support
510

233281414 Hex. Flanged Elastic Nut M8

Hex. Flanged Elastic Nut M8
700

518326557 Front Member, S Module

Front Member, S Module
900

518326559 Rear Member

Rear Member
1100

518325114 Upper Column Support

Upper Column Support
1110

207662044 Hex. Flanged Screw M6 X 20

Hex. Flanged Screw M6 X 20
1120

233261416 Elastic Flanged Nut M6

Elastic Flanged Nut M6
1200

518325115 Center Column Support

Center Column Support
1210

207662544 Hex. Flanged Screw M6 X 25

Hex. Flanged Screw M6 X 25
1220

233261414 Hex. Flanged Elastic Nut M6

Hex. Flanged Elastic Nut M6
1300a

518325579 Clear Rear Bumper

Clear Rear Bumper
1300b

520000711 Full Moon RH Cap

Full Moon RH Cap
1300b

520000712 Full Moon LH Cap

Full Moon LH Cap
1400

293730041 Full Moon Dart 8 mm

Full Moon Dart 8 mm
1405

293730059 Full Moon Dart 10 mm

Full Moon Dart 10 mm
