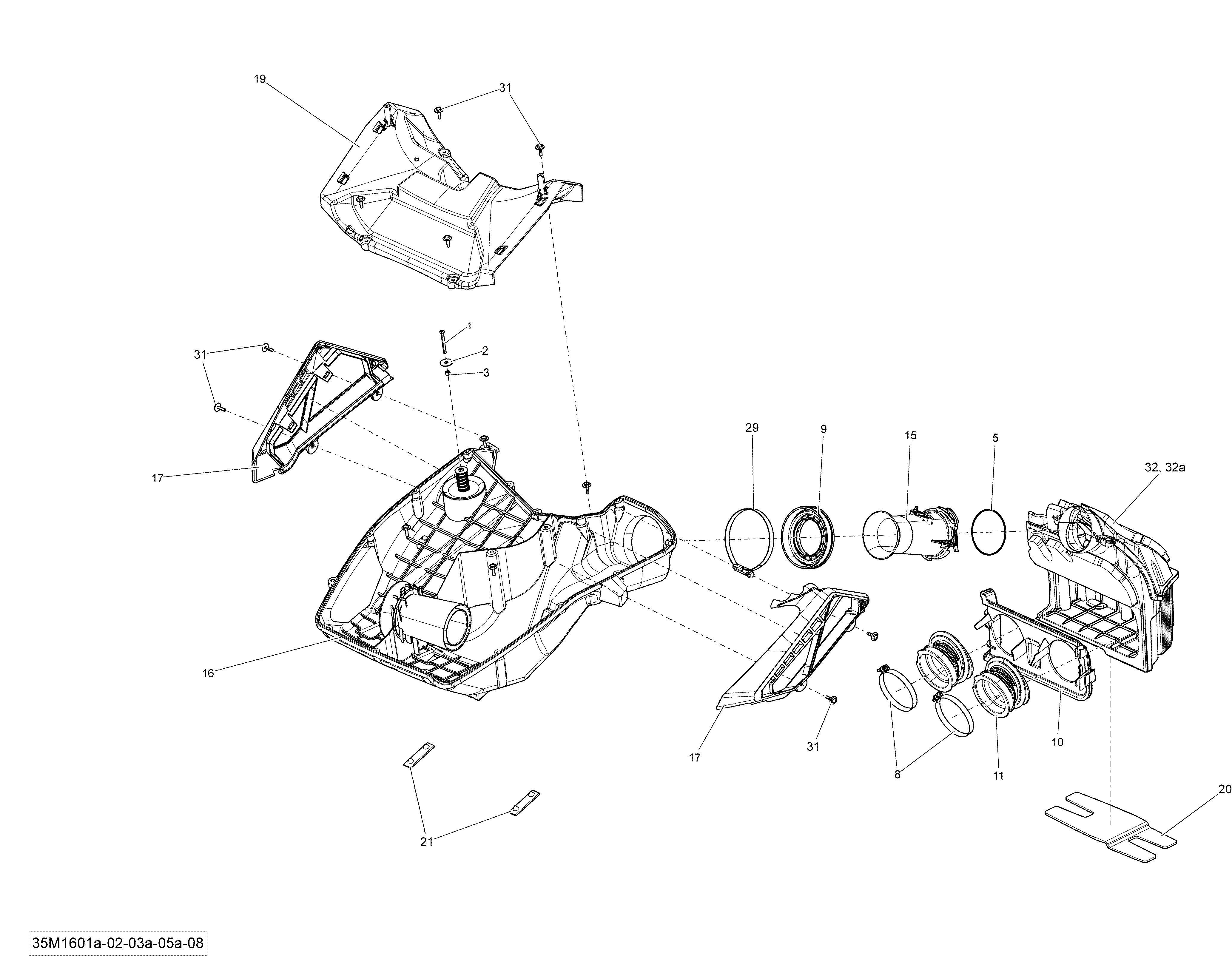

02- Air Intake System - 600HO-800R E-TEC для BRP Ski-Doo RENEGADE 800R E-TEC - 2016

  • №
    Артикул
    Название
  • 1
    205444086 Socket Head Screw M4 X 40
    Socket Head Screw M4 X 40
  • 2
    224060201 Flat Washer
    Flat Washer
  • 3
    232541414 Elastic Stop Nut M4
    Elastic Stop Nut M4
  • 5
    293300115 O-Ring
    O-Ring
  • 8
    508000346 Gemi Clamp
    Gemi Clamp
  • 9
    508000567 Boot
    Boot
  • 10
    508000613 Plate Adapter
    Plate Adapter
  • 11
    508000614 Air Intake Adapter
    Air Intake Adapter
  • 15
    508000662 Flute
    Flute
  • 16
    508000722 Secondary Chamber Ass'y. 800R E-TEC
    Secondary Chamber Ass'y. 800R E-TEC
  • 16
    508000754 Secondary Chamber Ass'y. 600HO E-TEC
    Secondary Chamber Ass'y. 600HO E-TEC
  • 17
    508000730 RH Air Filter
    RH Air Filter
  • 17
    508000731 LH Air Filter
    LH Air Filter
  • 19
    508000732 Air Duct
    Air Duct
  • 20
    508000739 Insulated Foam
    Insulated Foam
  • 21
    508000744 Stopper
    Stopper
  • 29
    514052924 Norma Clamp
    Norma Clamp
  • 31
    250000725 Screw M4 X 16
    Screw M4 X 16
  • 32
    508000660 Primary Chamber Ass'y. Includes 32 To 32a
    Primary Chamber Ass'y. Includes 32 To 32a
  • 32a
    516005876 Notice Decal, Air Intake Silencer
    Notice Decal, Air Intake Silencer
