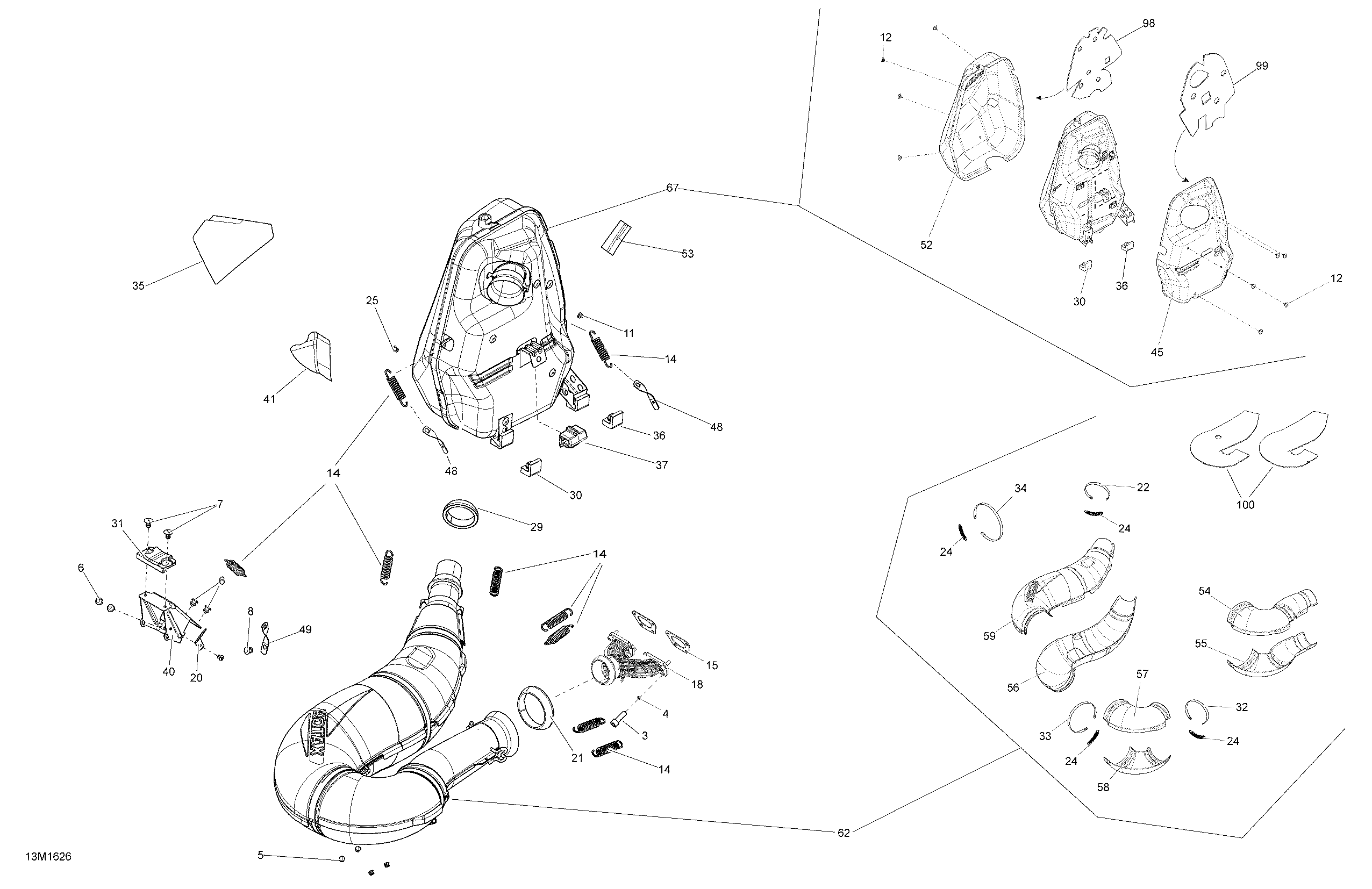

01- Exhaust - 800R ETEC для BRP Ski-Doo RENEGADE 800R E-TEC - 2016

  • №
    Артикул
    Название
  • 3
    250000414 Socket Head Screw M8 X 22
    Socket Head Screw M8 X 22
  • 4
    250200111 Washer
    Washer
  • 5
    293150091 Henrob Rivet
    Henrob Rivet
  • 6
    293150096 Hemlock Rivet, 6.5 mm
    Hemlock Rivet, 6.5 mm
  • 7
    293150103 Black Pop Rivet 3/16''
    Black Pop Rivet 3/16''
  • 8
    293150147 Hemlock Rivet
    Hemlock Rivet
  • 11
    390909200 Avex Rivet
    Avex Rivet
  • 12
    390910000 Pop Rivet 3/16”
    Pop Rivet 3/16”
  • 14
    415107100 Spring
    Spring
  • 15
    420430482 Gasket
    Gasket
  • 18
    420673373 Exhaust Manifold
    Exhaust Manifold
  • 20
    514053393 Spring Bracket
    Spring Bracket
  • 21
    514053487 Exhaust Gasket
    Exhaust Gasket
  • 22
    514053499 Retaining Strap
    Retaining Strap
  • 24
    514053643 Spring
    Spring
  • 25
    293150144 Stavex Rivet
    Stavex Rivet
  • 29
    514054174 Exhaust Gasket
    Exhaust Gasket
  • 30
    514054274 Lower Stopper
    Lower Stopper
  • 31
    514054275 Bumper
    Bumper
  • 32
    514054408 Retaining Strap
    Retaining Strap
  • 33
    514054409 Retaining Strap
    Retaining Strap
  • 34
    514054410 Retaining Strap
    Retaining Strap
  • 35
    514054488 Reflective Sheet
    Reflective Sheet
  • 36
    514054496 Lower Stopper
    Lower Stopper
  • 37
    514054606 Upper Stopper
    Upper Stopper
  • 40
    514054767 Exhaust Muffler Support
    Exhaust Muffler Support
  • 41
    514054817 Heat Shield
    Heat Shield
  • 45
    514054967 LH Deflector
    LH Deflector
  • 48
    514054974 Spring Bracket, 5mm hole
    Spring Bracket, 5mm hole
  • 49
    514054975 Spring Bracket, 8.0mm hole
    Spring Bracket, 8.0mm hole
  • 52
    514054986 RH Deflector
    RH Deflector
  • 53
    514054987 Heat Shield (Rectangle)
    Heat Shield (Rectangle)
  • 54
    514054988 Front Upper Half Enveloppe
    Front Upper Half Enveloppe
  • 55
    514054989 Front Lower Half Enveloppe
    Front Lower Half Enveloppe
  • 56
    514054990 Rear Lower Half Enveloppe
    Rear Lower Half Enveloppe
  • 57
    514054992 Front Upper Half Enveloppe
    Front Upper Half Enveloppe
  • 58
    514054993 Front Lower Half Enveloppe
    Front Lower Half Enveloppe
  • 59
    514055039 Rear Upper Half Enveloppe. Except Package-Backountry, Bacountry X
    Rear Upper Half Enveloppe. Except Package-Backountry, Bacountry X
  • 59
    514055067 Rear Upper Half Enveloppe. Package-Backountry, Bacountry X
    Rear Upper Half Enveloppe. Package-Backountry, Bacountry X
  • 62
    514055062 Exhaust Tuned Pipe. Package-Backountry, Bacountry X
    Exhaust Tuned Pipe. Package-Backountry, Bacountry X
  • 62
    514055063 Exhaust Tuned Pipe. Except Package-Backountry, Bacountry X
    Exhaust Tuned Pipe. Except Package-Backountry, Bacountry X
  • 67
    514055083 Muffler Ass'y
    Muffler Ass'y
  • 98
    514054711 RH Insulating Wool
    RH Insulating Wool
  • 99
    514054299 LH Insulating Wool
    LH Insulating Wool
  • 100
    514054487 Insulating Wool
    Insulating Wool
  • 100
    514054553 Insulating Wool
    Insulating Wool
