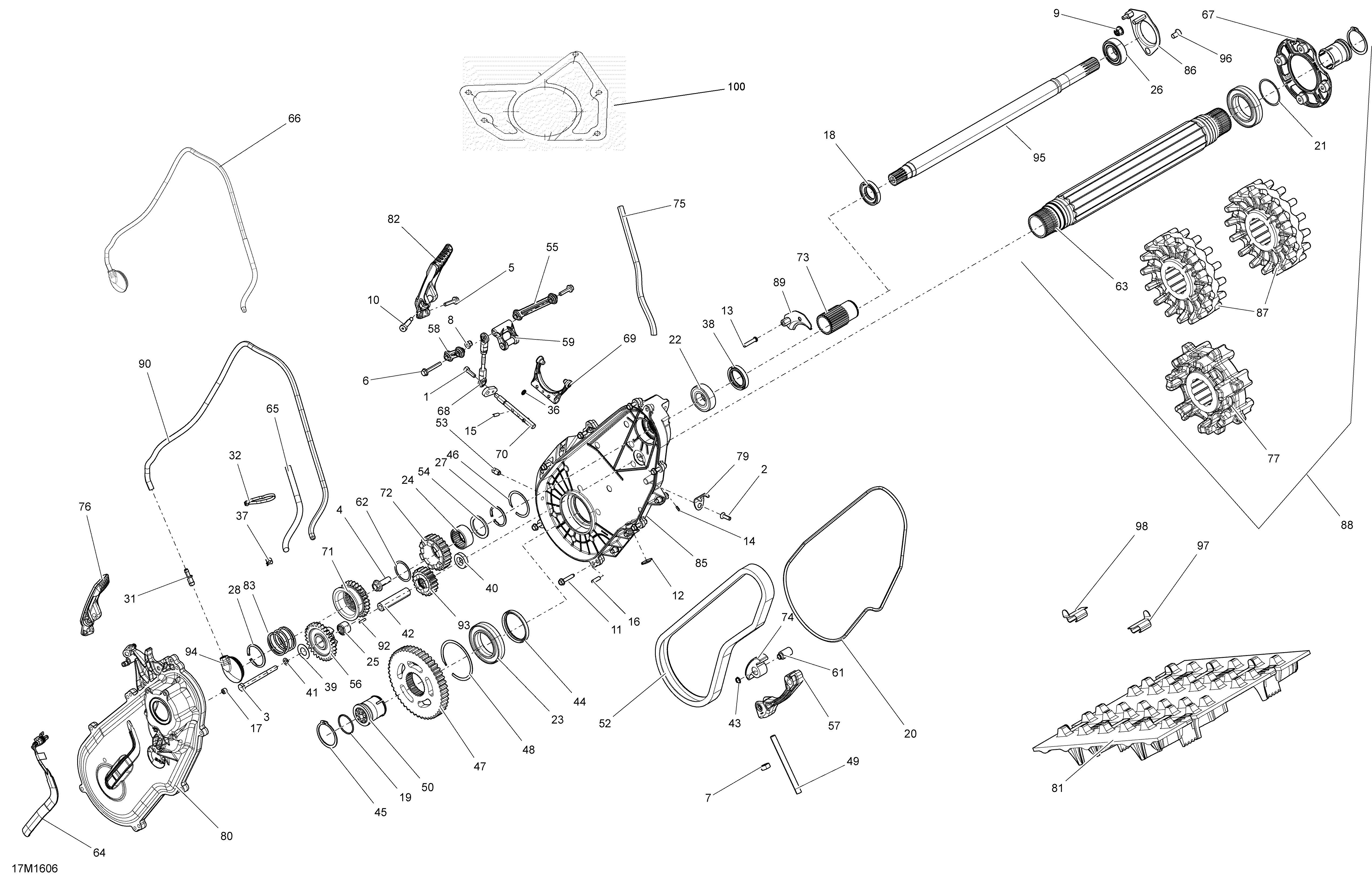

05- Drive System - All Models для BRP Ski-Doo MXZ - 4-STROKE - 2016
-
№АртикулНазвание
-
1205562044 Socket Head Screw M6 X 20, Scotch GripSocket Head Screw M6 X 20, Scotch Grip
-
2205862044 Socket Head Screw M6 X 20, Scotch GripSocket Head Screw M6 X 20, Scotch Grip
-
3207089044 Hex. Screw M8 X 90Hex. Screw M8 X 90
-
4207503046 Hex. Flanged Screw M10 X 30, Scotch GripHex. Flanged Screw M10 X 30, Scotch Grip
-
5207562544 Hex. Flanged Screw M6 X 25, Scotch GripHex. Flanged Screw M6 X 25, Scotch Grip
-
6207564044 Hex. Flanged Screw M6 X 40, Scotch GripHex. Flanged Screw M6 X 40, Scotch Grip
-
7232006414 Hex. Nut M10Hex. Nut M10
-
8233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
9233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
10250000340 Socket Head Screw M8 X 25, Scotch GripSocket Head Screw M8 X 25, Scotch Grip
-
11210263050 Screw-Forming HEX.HD.FL.BZN. Package-Blizzard, TNTScrew-Forming HEX.HD.FL.BZN. Package-Blizzard, TNT
-
11210263050 Screw-Forming HEX.HD.FL.BZN. Package-XScrew-Forming HEX.HD.FL.BZN. Package-X
-
11250000360 Flanged Hex. Screw M6 X 30. Package-SportFlanged Hex. Screw M6 X 30. Package-Sport
-
12250200100 Bonded WasherBonded Washer
-
13250300031 Clinch Stud M6 X 30Clinch Stud M6 X 30
-
14250400010 Rolled Pin M3 X 10Rolled Pin M3 X 10
-
15250400045 Spring Pin M5 X 16Spring Pin M5 X 16
-
16250400048 Dowel PinDowel Pin
-
17250500012 Allen Drive Plug 1/8-27 PTFAllen Drive Plug 1/8-27 PTF
-
18293250175 Oil SealOil Seal
-
19293300122 O-RingO-Ring
-
20293300130 O-RingO-Ring
-
21293300134 O-RingO-Ring
-
22293350055 Ball BearingBall Bearing
-
23293350059 Ball BearingBall Bearing
-
24293350063 Needle BearingNeedle Bearing
-
25293350064 Needle BearingNeedle Bearing
-
26293350074 Ball BearingBall Bearing
-
27293370054 CirclipCirclip
-
28293370055 CirclipCirclip
-
31293710035 Straight FittingStraight Fitting
-
32414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
36414484400 O-RingO-Ring
-
37414554800 Spring ClampSpring Clamp
-
38415049300 Oil SealOil Seal
-
39504077300 SpacerSpacer
-
40504078700 RingRing
-
41504082900 WasherWasher
-
42504083100 Reverse ShaftReverse Shaft
-
43504152282 CirclipCirclip
-
44504152571 SealSeal
-
45504152572 CirclipCirclip
-
46504152576 CirclipCirclip
-
47504152593 Sprocket, 45 Teeth. 900ACESprocket, 45 Teeth. 900ACE
-
47504152726 Sprocket, 43 Teeth. 1200Sprocket, 43 Teeth. 1200
-
47504152971 Sprocket, 51 Teeth. 600ACESprocket, 51 Teeth. 600ACE
-
48504152582 CirclipCirclip
-
49504152602 Adjustment ScrewAdjustment Screw
-
50504152619 Magnetic CapMagnetic Cap
-
52504152629 Drive Chain, 104 Links. 900ACE, 1200Drive Chain, 104 Links. 900ACE, 1200
-
52504152631 Drive Chain, 108 Links. 600ACEDrive Chain, 108 Links. 600ACE
-
53504152636 Magnetic Plug. Package SportMagnetic Plug. Package Sport
-
53504152854 Magnetic Plug. Except Package SportMagnetic Plug. Except Package Sport
-
54504152689 WasherWasher
-
55504152710 Double Ball JointDouble Ball Joint
-
56504152724 Sprocket, 29 TeethSprocket, 29 Teeth
-
57504152748 Chain TensionerChain Tensioner
-
58504152766 Double Ball JointDouble Ball Joint
-
59504152788 LeverLever
-
61504152841 Tensionner AxleTensionner Axle
-
62504152862 WasherWasher
-
64504152896 SensorSensor
-
65504152900 Protector TubeProtector Tube
-
66504152929 Cap Ass'yCap Ass'y
-
67504152949 Housing BearingHousing Bearing
-
68504152951 Ball JointBall Joint
-
69504152954 Fork Ass'yFork Ass'y
-
70504152956 Welded Axel ForkWelded Axel Fork
-
71504152960 Slinding Gear, 27 TeethSlinding Gear, 27 Teeth
-
72504152961 Sprocket, 24 TeethSprocket, 24 Teeth
-
73504152979 CouplingCoupling
-
74504152739 Slider ChainSlider Chain
-
75504153074 Protector TubeProtector Tube
-
76504153082 GripGrip
-
79504153122 Chain SliderChain Slider
-
80504153144 Chaincase Cover Ass'y. Package-SportChaincase Cover Ass'y. Package-Sport
-
80504153412 Cover Assembly. Except Package-SportCover Assembly. Except Package-Sport
-
81504152606 Track Ass'y 15X120X1.2RS. Model N° : MLGA,MLGB,UCGA,MAGA,MAGBTrack Ass'y 15X120X1.2RS. Model N° : MLGA,MLGB,UCGA,MAGA,MAGB
-
81504153345 Track Ass'y 15''X128''X1.25''. Model N° : MKGC,MKGD,MKGG,MKGHTrack Ass'y 15''X128''X1.25''. Model N° : MKGC,MKGD,MKGG,MKGH
-
81504153345 Track Ass'y 15''X128''X1.25''. Model N° : NYGA,PYGATrack Ass'y 15''X128''X1.25''. Model N° : NYGA,PYGA
-
82504153174 GripGrip
-
83504153178 Spring ReleaseSpring Release
-
85504153184 Chaincase. Package-SportChaincase. Package-Sport
-
85504153407 Chain Case. Except Package-SportChain Case. Except Package-Sport
-
86504153187 Bearing HousingBearing Housing
-
88504153083 Drive Axle Ass'yDrive Axle Ass'y
-
89504153418 BEARING HOUSINGBEARING HOUSING
-
90415080200 Hose, PolyurethaneHose, Polyurethane
-
92570048600 Alignement RodAlignement Rod
-
93581096900 Sprock Ass'y, 19 TeethSprock Ass'y, 19 Teeth
-
94504152930 CapCap
-
95504153000 CountershaftCountershaft
-
96235381646 Torx Screw M8 X 16, Scotch GripTorx Screw M8 X 16, Scotch Grip
-
97415129528 Track GuideTrack Guide
-
98504152651 Cleat. Model N° : MLGA,MLGB,UCGA,MAGA,MAGBCleat. Model N° : MLGA,MLGB,UCGA,MAGA,MAGB
-
98415129529 Cleat. Model N° : MKGC,MKGD,MKGG,MKGHCleat. Model N° : MKGC,MKGD,MKGG,MKGH
-
98415129529 Cleat. Model N° : NYGA,PYGACleat. Model N° : NYGA,PYGA
-
100518325816 PlatePlate
