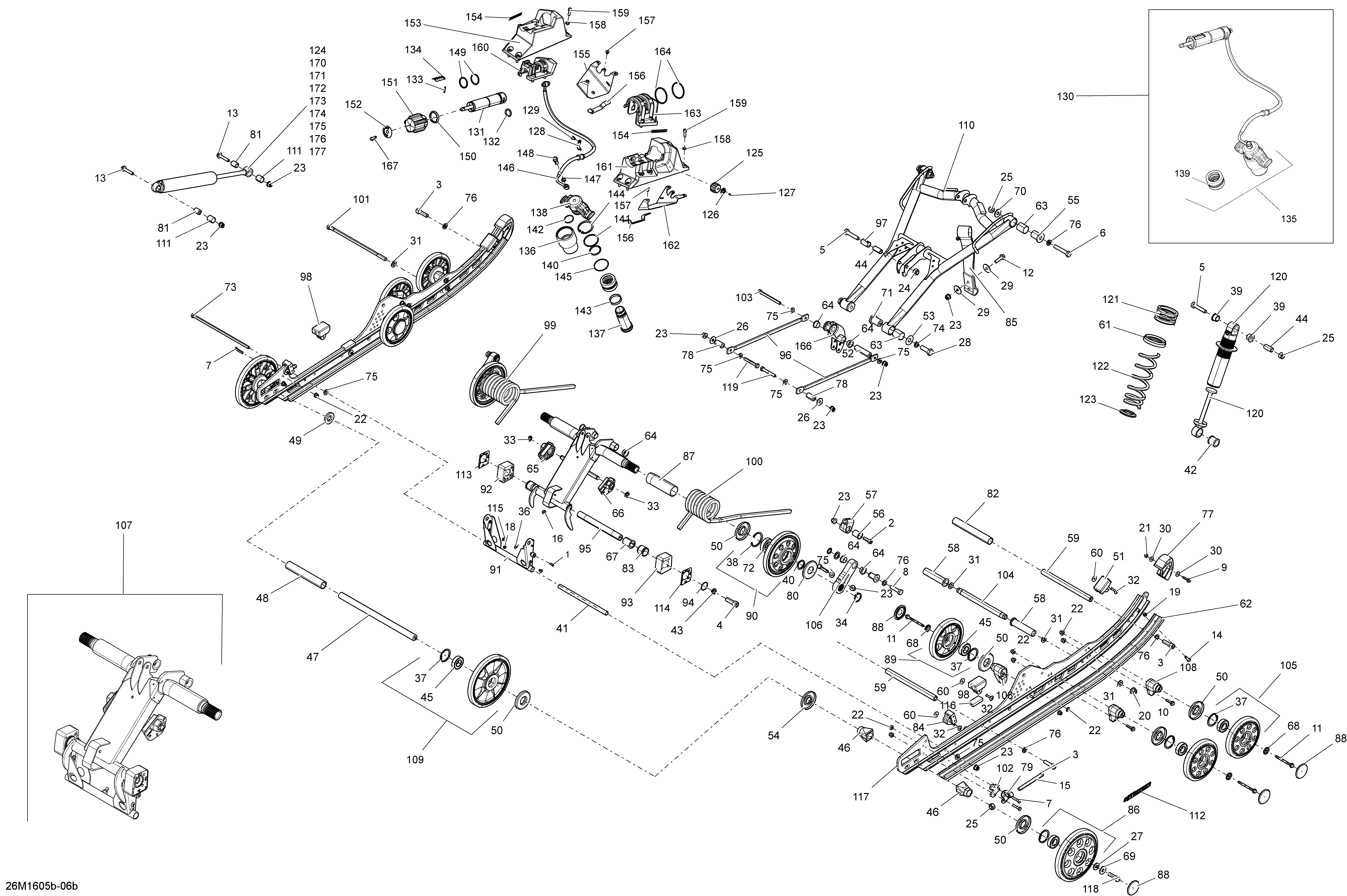

08- Rear Suspension - Package TNT-X для BRP Ski-Doo MXZ - 4-STROKE - 2016
-
№АртикулНазвание
-
1205041060 Socket Head Screw M4X 10Socket Head Screw M4X 10
-
2205082554 Socket Screw M8 X 25Socket Screw M8 X 25
-
3205503554 Socket Head Screw M10 X 35Socket Head Screw M10 X 35
-
4205523554 Socket Head Screw M12 X 35Socket Head Screw M12 X 35
-
5207005044 Hex. Screw M10 X 50Hex. Screw M10 X 50
-
6207006056 Hex. Cap Screw M10 X 60Hex. Cap Screw M10 X 60
-
7207063054 Hex. Cap Screw M6 X 30Hex. Cap Screw M6 X 30
-
8207204056 Cap Screw Hex. M10 X 40Cap Screw Hex. M10 X 40
-
9207652544 Hex. Flanged Screw M5 X 25Hex. Flanged Screw M5 X 25
-
10207662556 Hex. Flange Screw M6 X 25Hex. Flange Screw M6 X 25
-
11207667056 Hex. Flange Screw M6 X 70Hex. Flange Screw M6 X 70
-
12207683044 Hex. Flanged Screw M8 X 30Hex. Flanged Screw M8 X 30
-
13207684044 Hex. Flanged Screw M8 X 40Hex. Flanged Screw M8 X 40
-
14208562531 Phillips Screw M6 X 25Phillips Screw M6 X 25
-
15230100054 Hex Screw M10 x 100Hex Screw M10 x 100
-
16232061404 Hexagonal Nut M6Hexagonal Nut M6
-
18232551414 Elastic Stop Nut M5Elastic Stop Nut M5
-
19232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
20233201466 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
21233251434 Flanged Elastic Nut M5Flanged Elastic Nut M5
-
22233261466 Hex. Flanged Elastic Nut M6. Model without QASHex. Flanged Elastic Nut M6. Model without QAS
-
22233261466 Hex. Flanged Elastic Nut M6. Model with QASHex. Flanged Elastic Nut M6. Model with QAS
-
23233281466 Elastic Flang Nut M8Elastic Flang Nut M8
-
24233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
25233601466 Elastic Locking Nut M10Elastic Locking Nut M10
-
26234082410 Flat Washer 8 mmFlat Washer 8 mm
-
27234201474 Conical Spring Washer 10 mmConical Spring Washer 10 mm
-
28250000537 Hex. Cap Screw M12 X 35Hex. Cap Screw M12 X 35
-
29250200128 Flat Washer 8 mmFlat Washer 8 mm
-
30250200140 WasherWasher
-
31250200143 Flat WasherFlat Washer
-
32293150013 Pop Rivet 3/16''Pop Rivet 3/16''
-
33293370013 E-CirclipE-Circlip
-
34293370080 Retaining RingRetaining Ring
-
35293550033 Suspension Grease, 10 X 400 GSuspension Grease, 10 X 400 G
-
36408200700 Grease FittingGrease Fitting
-
37415129371 Retaining RingRetaining Ring
-
38415129780 Retaining RingRetaining Ring
-
39503189117 CushionCushion
-
40503189146 Axle SpringAxle Spring
-
41503189156 Pivot Arm AxlePivot Arm Axle
-
42503189271 CushionCushion
-
43503189276 WasherWasher
-
44503189282 BushingBushing
-
45503190396 Ball BearingBall Bearing
-
46503190428 Rear Wheel SpacerRear Wheel Spacer
-
47503190429 Rear AxleRear Axle
-
48503190430 SpacerSpacer
-
49503190432 WasherWasher
-
50503190434 Labyrinth SealLabyrinth Seal
-
51503190576 Rubber StopperRubber Stopper
-
52503190643 Axle Bar (Long)Axle Bar (Long)
-
53503190656 WasherWasher
-
54503190682 Labyrinth SealLabyrinth Seal
-
55503190698 AxleAxle
-
56503190754 Retainer CushionRetainer Cushion
-
57503191183 Spring SupportSpring Support
-
58503191259 Center BushingCenter Bushing
-
59503191260 Axle StrapAxle Strap
-
60503191273 WasherWasher
-
61503191281 Spring SpacerSpring Spacer
-
62503191301 Black Slider Shoe 120''Black Slider Shoe 120''
-
63503191554 BushingBushing
-
64503191555 Swivel BushingSwivel Bushing
-
64503191555 Swivel BushingSwivel Bushing
-
64390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
65503191565 LH Cam AdjusterLH Cam Adjuster
-
66503191566 RH Cam AdjusterRH Cam Adjuster
-
67503191640 CushionCushion
-
68503191820 Wheel Cup M6Wheel Cup M6
-
69503191910 WasherWasher
-
70503191926 WasherWasher
-
71503191966 Lower AxleLower Axle
-
72503191982 Ball BearingBall Bearing
-
73503192440 Bolt M8 X 248mmBolt M8 X 248mm
-
74503192491 WasherWasher
-
75503192494 WasherWasher
-
76503192496 WasherWasher
-
77503192530 Slide ProtectorSlide Protector
-
78503192555 Axle BarAxle Bar
-
79503192583 TensionerTensioner
-
80503192592 Labyrinth RingLabyrinth Ring
-
81503192606 Rear Shock AxleRear Shock Axle
-
82503192678 SpacerSpacer
-
83503192749 Guide BlockGuide Block
-
84503192750 Rubber StopperRubber Stopper
-
85503192759 Stopper StrapStopper Strap
-
86503192766 Deep Black Wheel Ass'y, 180 mmDeep Black Wheel Ass'y, 180 mm
-
87503192767 BushingBushing
-
88503192771 Black Wheel CapBlack Wheel Cap
-
89503192794 Deep Black Wheel Ass'y, 141 mmDeep Black Wheel Ass'y, 141 mm
-
90503192808 Black Wheel Ass'y, 155 mmBlack Wheel Ass'y, 155 mm
-
91503192823 Pivot Arm Ass'yPivot Arm Ass'y
-
92503192918 LH Cam BlockLH Cam Block
-
93503192919 RH Cam BlockRH Cam Block
-
94503192921 O-RingO-Ring
-
95503192981 Lower ShaftLower Shaft
-
96503193010 Link RodLink Rod
-
97503193037 BushingBushing
-
98503193101 Rubber StopperRubber Stopper
-
99503193158 Black LH Spring, SquareBlack LH Spring, Square
-
100503193159 Black RH Spring, SquareBlack RH Spring, Square
-
101503193227 Bolt M10 X 251MMBolt M10 X 251MM
-
102503193250 SpacerSpacer
-
103503193372 Screw M8 X 90Screw M8 X 90
-
104503193435 Pivot AxlePivot Axle
-
105503193477 Deep Black Wheel Ass'y, 141 mmDeep Black Wheel Ass'y, 141 mm
-
106503193533 Link Ass'yLink Ass'y
-
107503193617 Rear Arm Ass'yRear Arm Ass'y
-
108503193894 Casted SupportCasted Support
-
109503194050 Deep Black Wheel Ass'y, 180 mmDeep Black Wheel Ass'y, 180 mm
-
110503194078 Front ArmFront Arm
-
111505072663 Leg CushionLeg Cushion
-
112516007816 Runner DecalRunner Decal
-
113516004900 LH Block Sticker DecalLH Block Sticker Decal
-
114516004901 RH Block Sticker DecalRH Block Sticker Decal
-
115517225900 Flat WasherFlat Washer
-
116572084800 Reinforcement StopperReinforcement Stopper
-
117503193950 Yellow Runner 120''Yellow Runner 120''
-
117503193526 Black Runner 120''Black Runner 120''
-
118250000817 Hex Screw With Nilon Patch, M10 X 35Hex Screw With Nilon Patch, M10 X 35
-
119207085586 Hex. Screw M8 X 55Hex. Screw M8 X 55
-
120503193283 Central ShockCentral Shock
-
121503193837 Black Spring (Short)Black Spring (Short)
-
122503193160 Deep Black Spring. Engine 1200Deep Black Spring. Engine 1200
-
122503193067 Black Spring (Short). Except Engine 1200Black Spring (Short). Except Engine 1200
-
123503194270 Spring StopperSpring Stopper
-
124503193284 Rear Shock HPGTA. Package TNTRear Shock HPGTA. Package TNT
-
124503194132 Rear Shock. Package X Without QASRear Shock. Package X Without QAS
-
124503194135 Rear Shock. Package X With QASRear Shock. Package X With QAS
-
125503193025 Adjustment Knob Ass'yAdjustment Knob Ass'y
-
126516004752 Shock Knob Adjustment DecalShock Knob Adjustment Decal
-
127250000644 Allen Screw M3 X 10Allen Screw M3 X 10
-
128503193166 PlatePlate
-
129205961060 Socket Head Screw M6 X 10, Scotch GripSocket Head Screw M6 X 10, Scotch Grip
-
130503193777 Hydraulic Adjuster Ass'yHydraulic Adjuster Ass'y
-
131503193490 Master Cylinder Ass'yMaster Cylinder Ass'y
-
132293300036 O-RingO-Ring
-
133250400014 Spring PinSpring Pin
-
134516004917 Adjustment DecalAdjustment Decal
-
135503193778 Actuator Ass'yActuator Ass'y
-
136503192795 CylinderCylinder
-
137503193779 PistonPiston
-
138503192633 Spring BracketSpring Bracket
-
139503193485 HolderHolder
-
140293300068 O-RingO-Ring
-
141503192832 O-RingO-Ring
-
142293300039 O-RingO-Ring
-
143503192833 Wear RingWear Ring
-
144503192834 Retaining RingRetaining Ring
-
145503193014 O-RingO-Ring
-
146503193476 Connector HoseConnector Hose
-
147705600310 Copper WasherCopper Washer
-
148705600628 Banjo BoltBanjo Bolt
-
149293250269 O-RingO-Ring
-
150503192825 SealSeal
-
151503193056 Knob Adjuster Ass'yKnob Adjuster Ass'y
-
152516004751 Sticker Knob AdjusterSticker Knob Adjuster
-
153503192811 LH SupportLH Support
-
154516006369 DecalDecal
-
155503193437 LH Hose ProtectorLH Hose Protector
-
156503193413 PlatePlate
-
157293150144 Stavex RivetStavex Rivet
-
158234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
159205062060 Socket Head Screw M6 X 20Socket Head Screw M6 X 20
-
160503192956 LH Half HousingLH Half Housing
-
161503192810 RH SupportRH Support
-
162503193438 RH Hose ProtectorRH Hose Protector
-
163503192957 RH Half-HousingRH Half-Housing
-
164293250085 O-RingO-Ring
-
166503194079 RockerRocker
-
167205541660 Socket Screw M4 x 16 (Scotch Grip)Socket Screw M4 x 16 (Scotch Grip)
-
170415093807 O-RingO-Ring
-
171415093806 Piston RingPiston Ring
-
172505070398 Air ValveAir Valve
-
173505070399 ScrewScrew
-
174505070400 O-RingO-Ring
-
175415093804 O-RingO-Ring
-
176415093810 BoltBolt
-
177415038700 O-RingO-Ring
