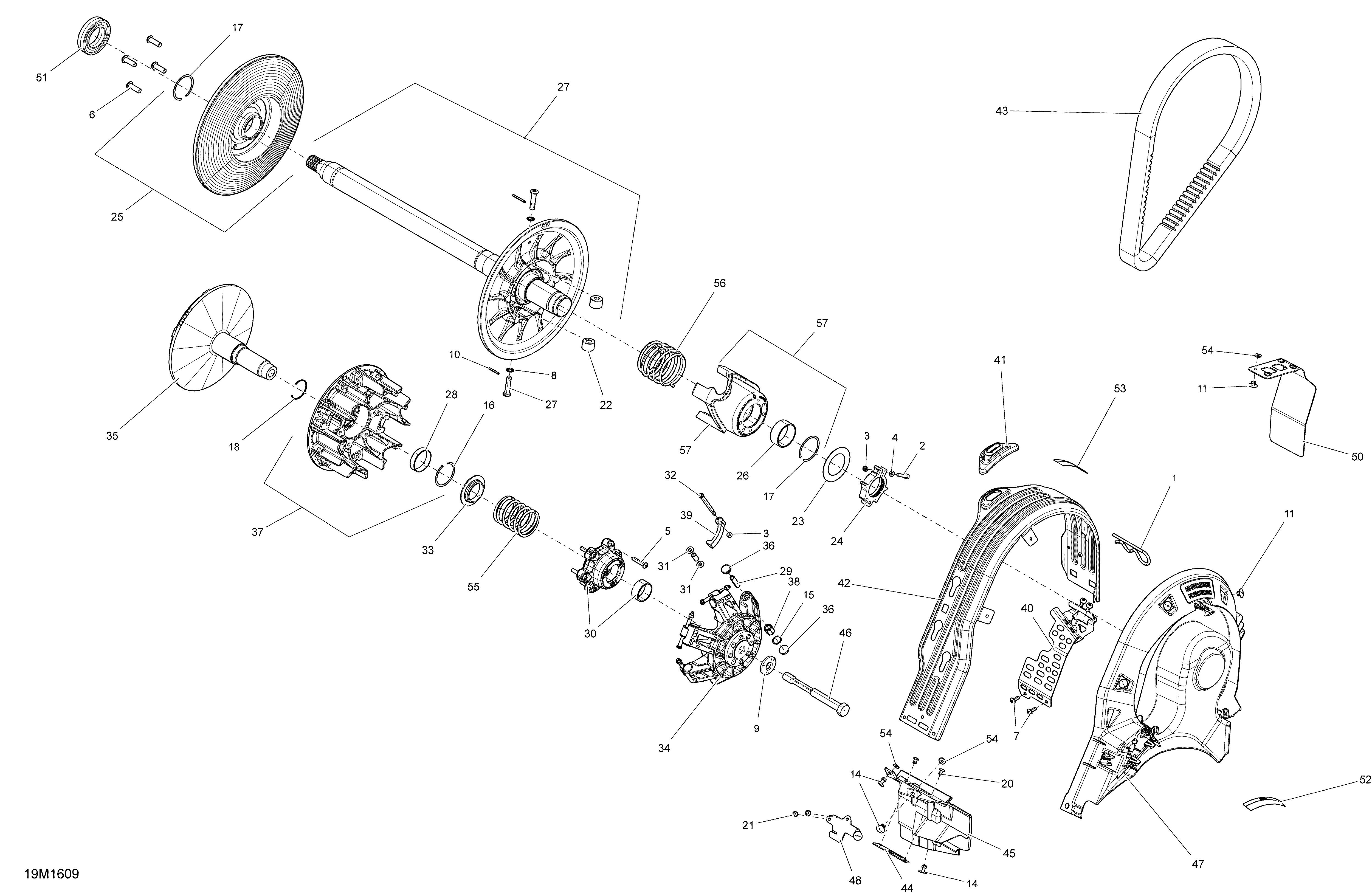

05- Pulley System - 1200 4-TEC для BRP Ski-Doo GRAND TOURING - 4-STROKE - 2016
-
№АртикулНазвание
-
1114045200 GOUP.SURETE *PIN-HAIRGOUP.SURETE *PIN-HAIR
-
2205052544 SOCKET SCREW M5 X 25SOCKET SCREW M5 X 25
-
3232551414 NUT-STOP ELASTIC DIN.985NUT-STOP ELASTIC DIN.985
-
4234051410 FLAT WASHER M5FLAT WASHER M5
-
5250000580 TORX SCREW M6 X 30TORX SCREW M6 X 30
-
6250000707 HEX. BUTTON HEAD SCREW M8 X 25HEX. BUTTON HEAD SCREW M8 X 25
-
7250000742 TORX-TRUSS M/S M5 X 14 NYLONTORX-TRUSS M/S M5 X 14 NYLON
-
8250200009 Lock Washer 8mmLock Washer 8mm
-
9250200144 CONICAL SPRING WASHER M14CONICAL SPRING WASHER M14
-
10250400063 SPRING PIN M3 X 30SPRING PIN M3 X 30
-
11293150103 BLACK POP RIVET 3/16''. Package SEBLACK POP RIVET 3/16''. Package SE
-
11293150103 BLACK POP RIVET 3/16''. Except Package SEBLACK POP RIVET 3/16''. Except Package SE
-
14293150104 POP RIVET 3/16''POP RIVET 3/16''
-
15293300185 JOINT TORIQUE *O RINGJOINT TORIQUE *O RING
-
16293370037 CIRCLIPCIRCLIP
-
17293370049 CIRCLIPCIRCLIP
-
18293370065 CIRCLIPCIRCLIP
-
20390909100 AVEX RIVETAVEX RIVET
-
21390909200 AVEX RIVETAVEX RIVET
-
22417127016 ROLLERROLLER
-
23417127155 RONDELLE *WASHERRONDELLE *WASHER
-
24415129604 ADJUSTMENT PULLEY ASS'YADJUSTMENT PULLEY ASS'Y
-
25417127317 SLIDING FLANGE ASS'YSLIDING FLANGE ASS'Y
-
26417127318 BUSHINGBUSHING
-
27417127294 PIVOT STUDPIVOT STUD
-
27417127362 FIX FLANGE ASS'YFIX FLANGE ASS'Y
-
28417222758 BUSHINGBUSHING
-
29417223257 Roller AxleRoller Axle
-
30417223650 SPRING COVER ASS'YSPRING COVER ASS'Y
-
31417223660 STOPPER WASHERSTOPPER WASHER
-
32417223694 RAMP AXLERAMP AXLE
-
33417223752 SEAT SPRINGSEAT SPRING
-
34417223865 GOVERNOR CUP ASS'YGOVERNOR CUP ASS'Y
-
35417223867 FIXE FLANGE ASS'YFIXE FLANGE ASS'Y
-
36417223919 SLIDER SHOESLIDER SHOE
-
37417224044 FLASQUE COUL.AS*FLANGE-SLID.ASSYFLASQUE COUL.AS*FLANGE-SLID.ASSY
-
38417224081 ROULEAU *ROLLERROULEAU *ROLLER
-
39417224103 Ramp 749Ramp 749
-
40417300361 BELT GUARD BRACKETBELT GUARD BRACKET
-
41417300381 GUIDEGUIDE
-
42417300382 BELT GUARDBELT GUARD
-
43417300383 COURROIE *DRIVE BELTCOURROIE *DRIVE BELT
-
44417300421 REINFORCEMENT PLATEREINFORCEMENT PLATE
-
45417300430 FRONT SUPPORTFRONT SUPPORT
-
46417300432 PULLEY DRIVE BOLTPULLEY DRIVE BOLT
-
47417300466 CVT Air Duct. Package SECVT Air Duct. Package SE
-
47417300440 CVT Air Duct Pulley. Except Package SportCVT Air Duct Pulley. Except Package Sport
-
48417300467 ATTACHE AVANT *FRONT BRACKETATTACHE AVANT *FRONT BRACKET
-
50417300476 PLAQUE *PLATEPLAQUE *PLATE
-
51504152574 BALL BEARINGBALL BEARING
-
52516005503 DECAL, ENGLISHDECAL, ENGLISH
-
53516005509 SAFETY BELT GUARD DECALSAFETY BELT GUARD DECAL
-
54517225900 FLAT WASHER. Package SEFLAT WASHER. Package SE
-
54517225900 FLAT WASHER. Except Package SEFLAT WASHER. Except Package SE
-
55417224084 RESSORT *CLUTCH SPRINGRESSORT *CLUTCH SPRING
-
56417127467 RESSORT RAPPEL *RELEASE SPRINGRESSORT RAPPEL *RELEASE SPRING
-
57417127476 CAME ASSEMBLE *CAM ASS'YCAME ASSEMBLE *CAM ASS'Y
