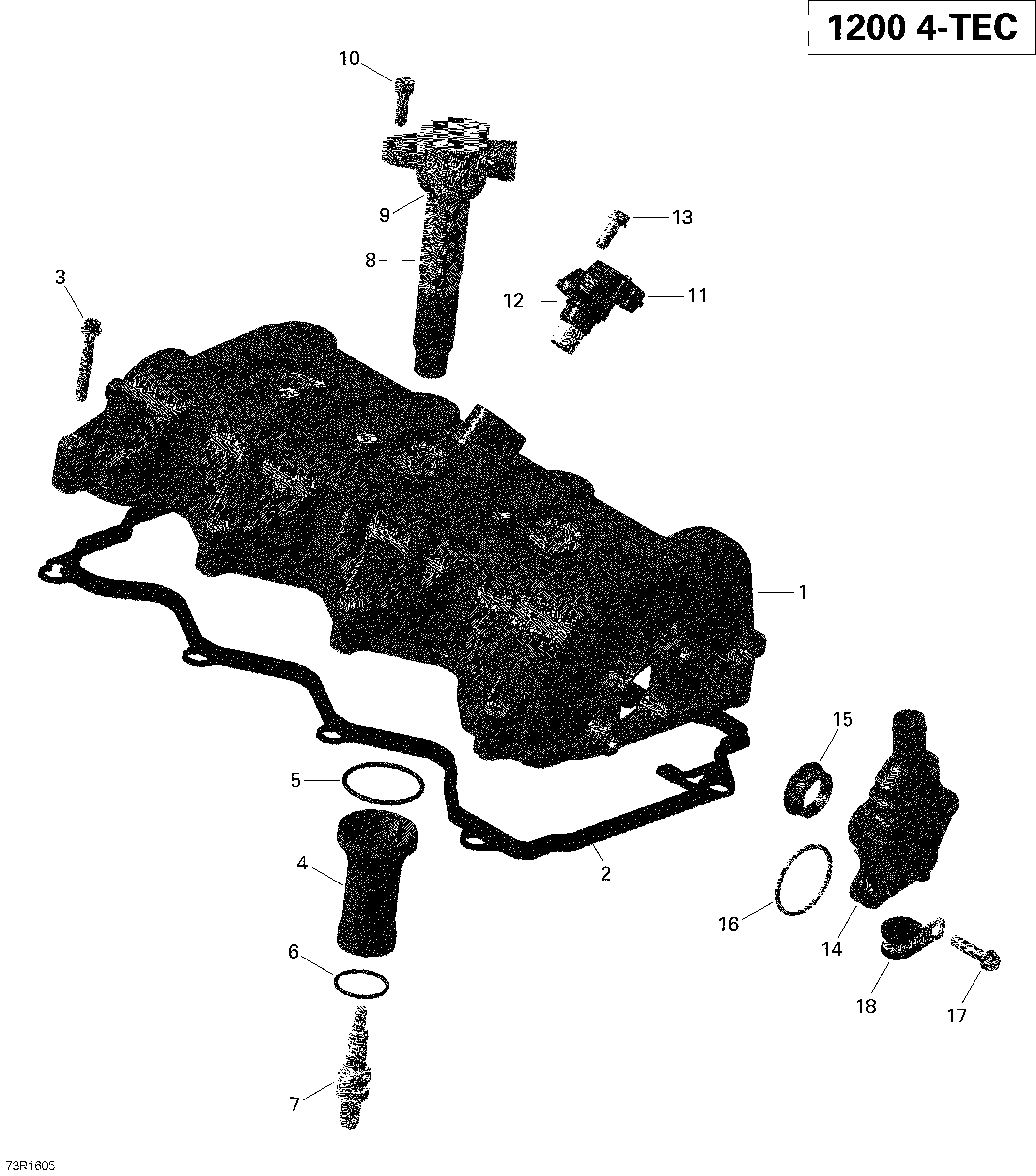

01- Valve Cover - 1200iTC 4-TEC для BRP Ski-Doo GRAND TOURING - 4-STROKE - 2016
-
№АртикулНазвание
-
1420611857 Valve Cover Ass'y. Includes 1 to 2Valve Cover Ass'y. Includes 1 to 2
-
2420431041 GasketGasket
-
3420440282 Flanged Torx Screw M6 X 40Flanged Torx Screw M6 X 40
-
4420460585 Spark Plug Pipe Ass'y. Includes 4 to 6Spark Plug Pipe Ass'y. Includes 4 to 6
-
5420431740 O-RingO-Ring
-
6420631611 O-RingO-Ring
-
7415129429 Spark Plug, NGK CR8EKBSpark Plug, NGK CR8EKB
-
8420665810 Stick Coil. Includes 8 to 9Stick Coil. Includes 8 to 9
-
9420201435 Protection CapProtection Cap
-
10205062044 Socket Head Screw M6 X 20Socket Head Screw M6 X 20
-
11420664045 Camshaft Position Sensor Ass'y. Includes 11 to 12Camshaft Position Sensor Ass'y. Includes 11 to 12
-
12420631890 O-RingO-Ring
-
13420440162 Flanged Torx Screw M6 X 16Flanged Torx Screw M6 X 16
-
14420856506 Vent Valve Ass'y. Includes 14 to 16Vent Valve Ass'y. Includes 14 to 16
-
15420630125 V-RingV-Ring
-
16420950870 O-RingO-Ring
-
17420440234 Flanged Torx Screw M6 X 25Flanged Torx Screw M6 X 25
-
18420851492 Cable ClampCable Clamp
