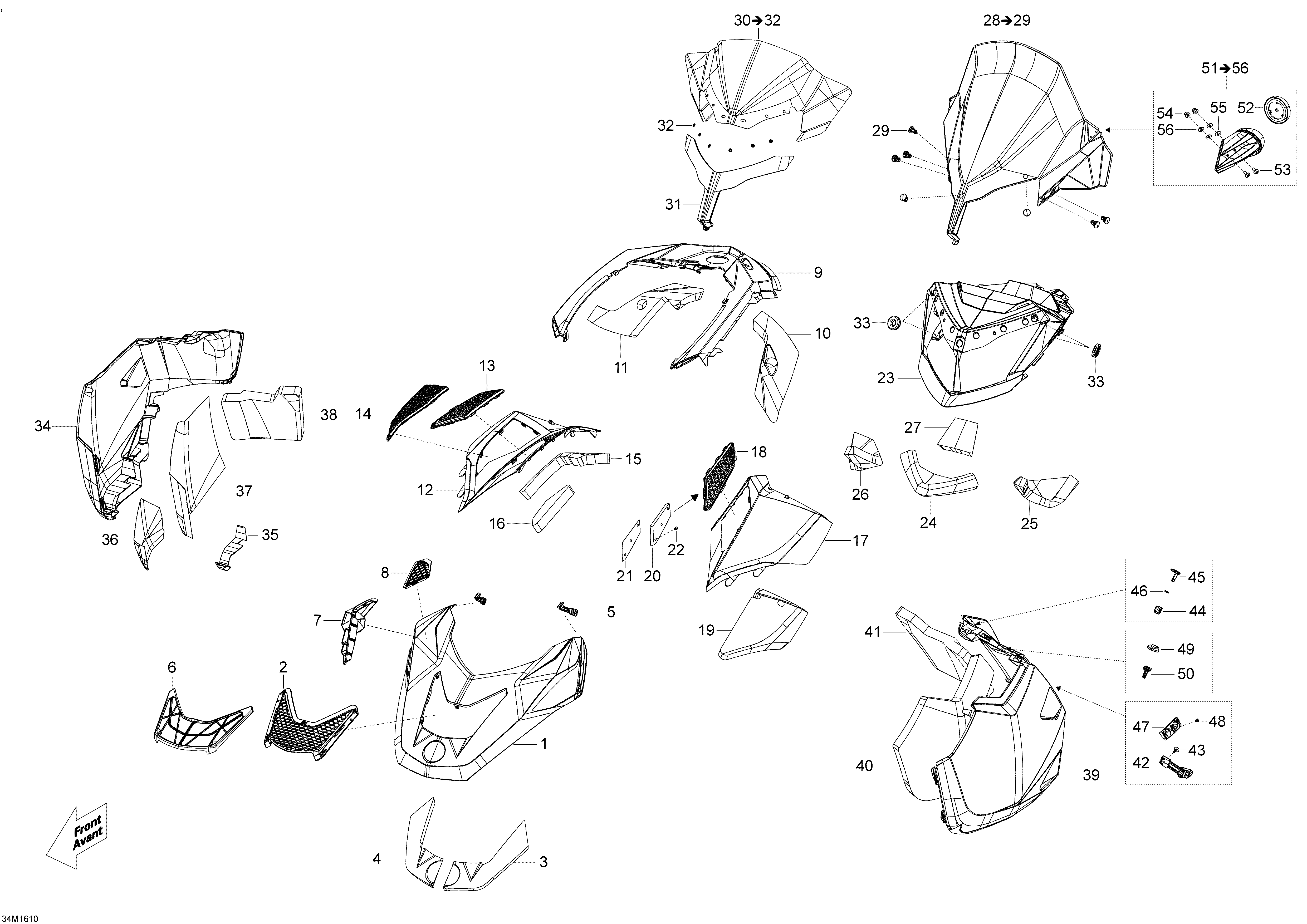

09- Hood для BRP Ski-Doo EXPEDITION - LE-SE-Xtreme 2-STROKE - 2016

  • №
    Артикул
    Название
  • 1
    517304812 Black Hood. Model-LE
    Black Hood. Model-LE
  • 1
    517305596 Gray Hood. Model-SE
    Gray Hood. Model-SE
  • 1
    517305818 Black Hood. Model-Extreme
    Black Hood. Model-Extreme
  • 2
    517304843 Hood Grill
    Hood Grill
  • 3
    517304330 Insulator LH
    Insulator LH
  • 4
    517304214 Insulator RH
    Insulator RH
  • 5
    517304289 Latch
    Latch
  • 6
    517305553 Hood Grill With Mesh. Model-Extreme
    Hood Grill With Mesh. Model-Extreme
  • 7
    517304155 Scoop Grill. Model-LE & SE
    Scoop Grill. Model-LE & SE
  • 7
    517304855 Intake Grill. Model-Extreme
    Intake Grill. Model-Extreme
  • 8
    517304584 Intake Grill. Model-Extreme
    Intake Grill. Model-Extreme
  • 9
    517305220 Black Console. Model-LE & SE
    Black Console. Model-LE & SE
  • 9
    517304820 Black Console. Model-Extreme
    Black Console. Model-Extreme
  • 10
    517305644 Insulator
    Insulator
  • 11
    517304318 Insulator
    Insulator
  • 12
    517304829 Black RH Side Access Panel. Model-LE
    Black RH Side Access Panel. Model-LE
  • 12
    517305598 Gray RH Side Access Panel. Model-SE
    Gray RH Side Access Panel. Model-SE
  • 13
    517304015 RH Access Panel Grill
    RH Access Panel Grill
  • 14
    517304016 RH Lower Access Panel Grill
    RH Lower Access Panel Grill
  • 15
    517304311 Insulator
    Insulator
  • 16
    517305987 Insulator
    Insulator
  • 17
    517304839 Black LH Side Access Panel. Model-LE
    Black LH Side Access Panel. Model-LE
  • 17
    517305600 Gray LH Side Access Panel. Model-SE
    Gray LH Side Access Panel. Model-SE
  • 18
    517303893 LH Access Panel Grill
    LH Access Panel Grill
  • 19
    517304313 Insulator
    Insulator
  • 20
    517305311 Insulator
    Insulator
  • 21
    502007312 Grill Plate
    Grill Plate
  • 22
    414644300 Dart
    Dart
  • 23
    517304272 Indicator Support
    Indicator Support
  • 24
    517304314 Insulator
    Insulator
  • 25
    517304315 Insulator
    Insulator
  • 26
    517304316 Insulator
    Insulator
  • 27
    517304319 Insulator
    Insulator
  • 28
    860201000 Windshield (580) Ass'y. Includes 28 To 29, Model-LE & SE
    Windshield (580) Ass'y. Includes 28 To 29, Model-LE & SE
  • 29
    517304744 Knob
    Knob
  • 30
    517305098 Windshield (355) Ass'y. Includes 30 To 32, Model-Extreme
    Windshield (355) Ass'y. Includes 30 To 32, Model-Extreme
  • 31
    517304712 Windshield Support
    Windshield Support
  • 32
    732610072 Push Nut
    Push Nut
  • 33
    517303756 Grommet
    Grommet
  • 34
    517304866 Black RH Side Panel
    Black RH Side Panel
  • 35
    517304215 Aluminum Foil
    Aluminum Foil
  • 36
    517304216 Aluminum Foil
    Aluminum Foil
  • 37
    517303890 RH Foam
    RH Foam
  • 38
    517304310 RH Foam Rear
    RH Foam Rear
  • 39
    517304869 Black LH Side Panel. Model-LE & SE
    Black LH Side Panel. Model-LE & SE
  • 39
    517305533 Black LH Side Panel. Model-Extreme
    Black LH Side Panel. Model-Extreme
  • 40
    517303891 LH Foam
    LH Foam
  • 41
    517304309 LH Foam Rear
    LH Foam Rear
  • 42
    517304572 Latch-Panel
    Latch-Panel
  • 43
    293150108 Pop Rivet 3/16
    Pop Rivet 3/16
  • 44
    517304297 Quarter-Turn Handle Fastener
    Quarter-Turn Handle Fastener
  • 45
    517304296 Quarter-Turn Handle
    Quarter-Turn Handle
  • 46
    517304538 Locking Plate
    Locking Plate
  • 47
    517304497 Side Panel Support
    Side Panel Support
  • 48
    293150211 Rivet
    Rivet
  • 49
    860200239 End Piece
    End Piece
  • 50
    517306057 Latch-Panel
    Latch-Panel
  • 51
    517305787 RH/LH Mirror Ass'y. Includes 51 To 56, Model-LE & SE
    RH/LH Mirror Ass'y. Includes 51 To 56, Model-LE & SE
  • 53
    250000721 Torx Truss Screw M6 x 16
    Torx Truss Screw M6 x 16
  • 54
    232361493 Hex. Domed Nut M6
    Hex. Domed Nut M6
  • 55
    250200024 Rubber Washer M5
    Rubber Washer M5
  • 56
    20117 Washer
    Washer
