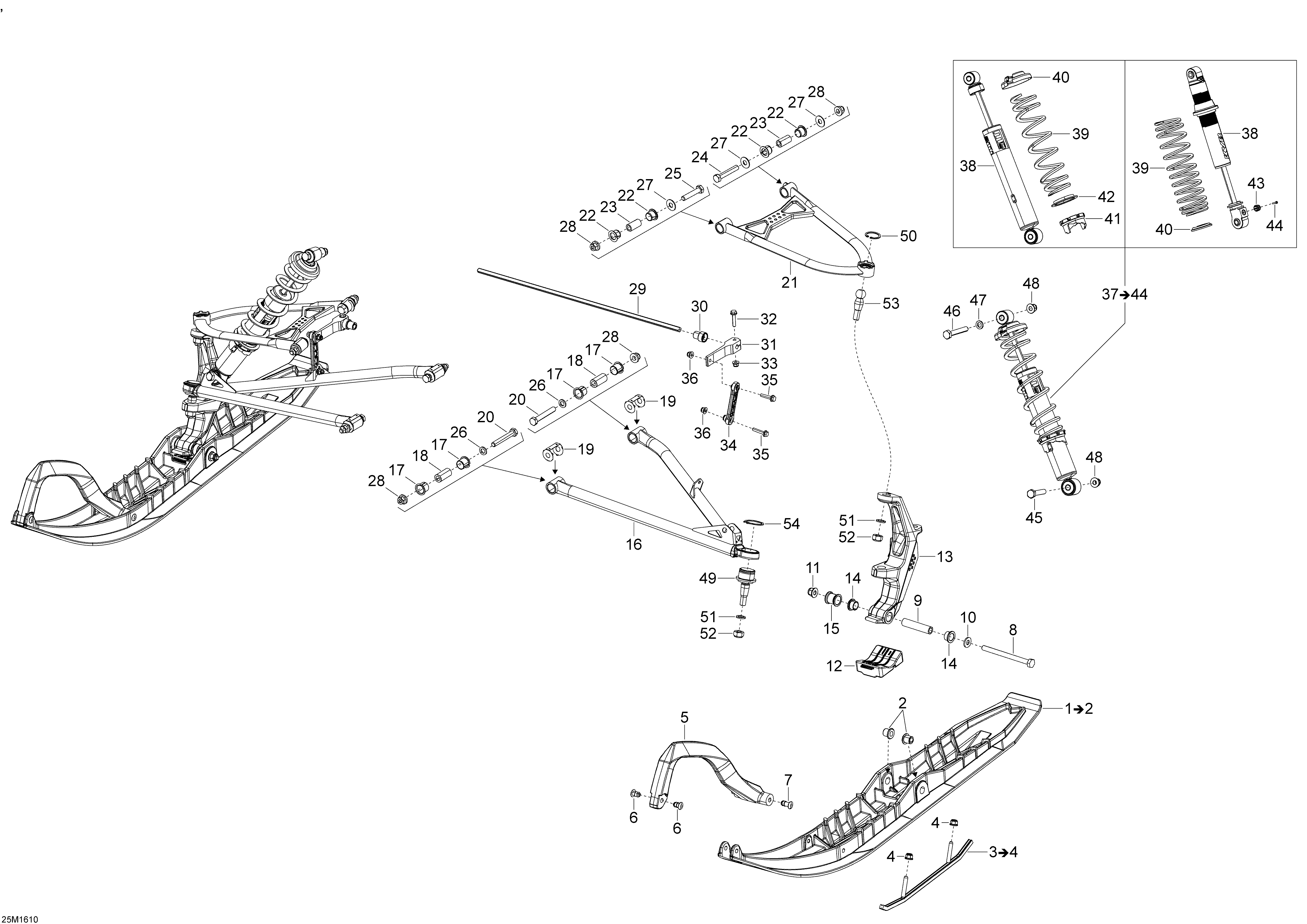

07- Front Suspension and Ski для BRP Ski-Doo EXPEDITION - LE-SE-Xtreme 2-STROKE - 2016

  • №
    Артикул
    Название
  • 1
    505073227 Black DS Ski. Includes 1 To 2
    Black DS Ski. Includes 1 To 2
  • SRFC Expedition LE 1200 4-TEC. Model-Black-Black North America
    Expedition LE 1200 4-TEC. Model-Black-Black North America
  • 2
    505071781 Cushion
    Cushion
  • 3
    860201044 Carbide Runner Kit. Includes 3 To 4
    Carbide Runner Kit. Includes 3 To 4
  • 4
    233281414 Elastic Flange Nut M8
    Elastic Flange Nut M8
  • 5
    505072976 Black Handle
    Black Handle
  • 6
    505071812 Retainer
    Retainer
  • 7
    505072133 Retainer
    Retainer
  • 8
    230003044 Hex. Cap Screw M10 x 130
    Hex. Cap Screw M10 x 130
  • 9
    506133300 Ski Axle
    Ski Axle
  • 10
    732900049 Washer
    Washer
  • 11
    233201414 Elastic Flange Nut M10
    Elastic Flange Nut M10
  • 12
    505072594 Ski Stopper
    Ski Stopper
  • 13
    505073628 LH Ski Leg (6L). Model-LE
    LH Ski Leg (6L). Model-LE
  • 13
    505073630 Black LH Ski Leg (6L). Model-SE & Extreme
    Black LH Ski Leg (6L). Model-SE & Extreme
  • 13
    505073629 RH Ski Leg (6R). Model-LE
    RH Ski Leg (6R). Model-LE
  • 13
    505073631 Black RH Ski Leg (6R). Model-SE & Extreme
    Black RH Ski Leg (6R). Model-SE & Extreme
  • 14
    505072690 Bushing
    Bushing
  • 15
    505071999 Spacer
    Spacer
  • 16
    505073584 RH Lower Arm
    RH Lower Arm
  • 16
    505073583 LH Lower Arm
    LH Lower Arm
  • 17
    505073330 Cushion
    Cushion
  • 18
    505072209 Bushing
    Bushing
  • 19
    505072634 Wear Plate
    Wear Plate
  • 20
    250000291 Hex. Cap Screw M10 x 70
    Hex. Cap Screw M10 x 70
  • 21
    505073588 LH Upper Arm
    LH Upper Arm
  • 21
    505073589 RH Upper Arm
    RH Upper Arm
  • 22
    505073329 Bushing
    Bushing
  • 23
    505072143 Bushing
    Bushing
  • 24
    250000290 Hex. Cap Screw M10 x 60
    Hex. Cap Screw M10 x 60
  • 25
    250000289 Hex. Cap Screw M10 X 50
    Hex. Cap Screw M10 X 50
  • 26
    503189564 Washer
    Washer
  • 27
    505072392 Washer
    Washer
  • 28
    250100165 Nut M10
    Nut M10
  • 29
    505072602 Stabilisator
    Stabilisator
  • 30
    505072064 Bushing
    Bushing
  • 31
    505072394 Stabilisator Lever
    Stabilisator Lever
  • 32
    207663046 Hex. Flange Screw M6 x 30
    Hex. Flange Screw M6 x 30
  • 33
    233261416 Elastic Flange Nut M6
    Elastic Flange Nut M6
  • 34
    505072204 Double Ball Joint Link
    Double Ball Joint Link
  • 35
    207663046 Hex. Flange Screw M6 x 30
    Hex. Flange Screw M6 x 30
  • 36
    233261416 Elastic Flange Nut M6
    Elastic Flange Nut M6
  • 38
    505072517 Shock. Model-LE & SE
    Shock. Model-LE & SE
  • 38
    505073555 Shock. Model-Extreme
    Shock. Model-Extreme
  • 39
    503192286 Spring. Model-LE & SE
    Spring. Model-LE & SE
  • 39
    505072741 Spring. Model-Extreme
    Spring. Model-Extreme
  • 40
    230076 Spring Stopper. Model-LE & SE
    Spring Stopper. Model-LE & SE
  • 40
    503194270 Spring Stopper. Model-Extreme
    Spring Stopper. Model-Extreme
  • 41
    505073625 Adjuster Cam. Model-LE & SE
    Adjuster Cam. Model-LE & SE
  • 42
    503191872 Spring Guide. Model-LE & SE
    Spring Guide. Model-LE & SE
  • 43
    505072753 Adjustment Knob. Model-Extreme
    Adjustment Knob. Model-Extreme
  • 44
    250000644 Socket Screw M3 x 10. Model-Extreme
    Socket Screw M3 x 10. Model-Extreme
  • 45
    207005544 Hex. Cap Screw M10 x 55
    Hex. Cap Screw M10 x 55
  • 46
    207006544 Hex. Cap Screw M10 x 65
    Hex. Cap Screw M10 x 65
  • 47
    503189564 Washer
    Washer
  • 48
    233201414 Elastic Flange Nut M10
    Elastic Flange Nut M10
  • 49
    505073636 Ball Joint
    Ball Joint
  • 50
    293370070 Circlip
    Circlip
  • 51
    234021410 Flat Washer
    Flat Washer
  • 52
    250100089 Nut M12
    Nut M12
  • 53
    505072913 Ball Joint
    Ball Joint
  • 54
    293370035 Circlip
    Circlip
