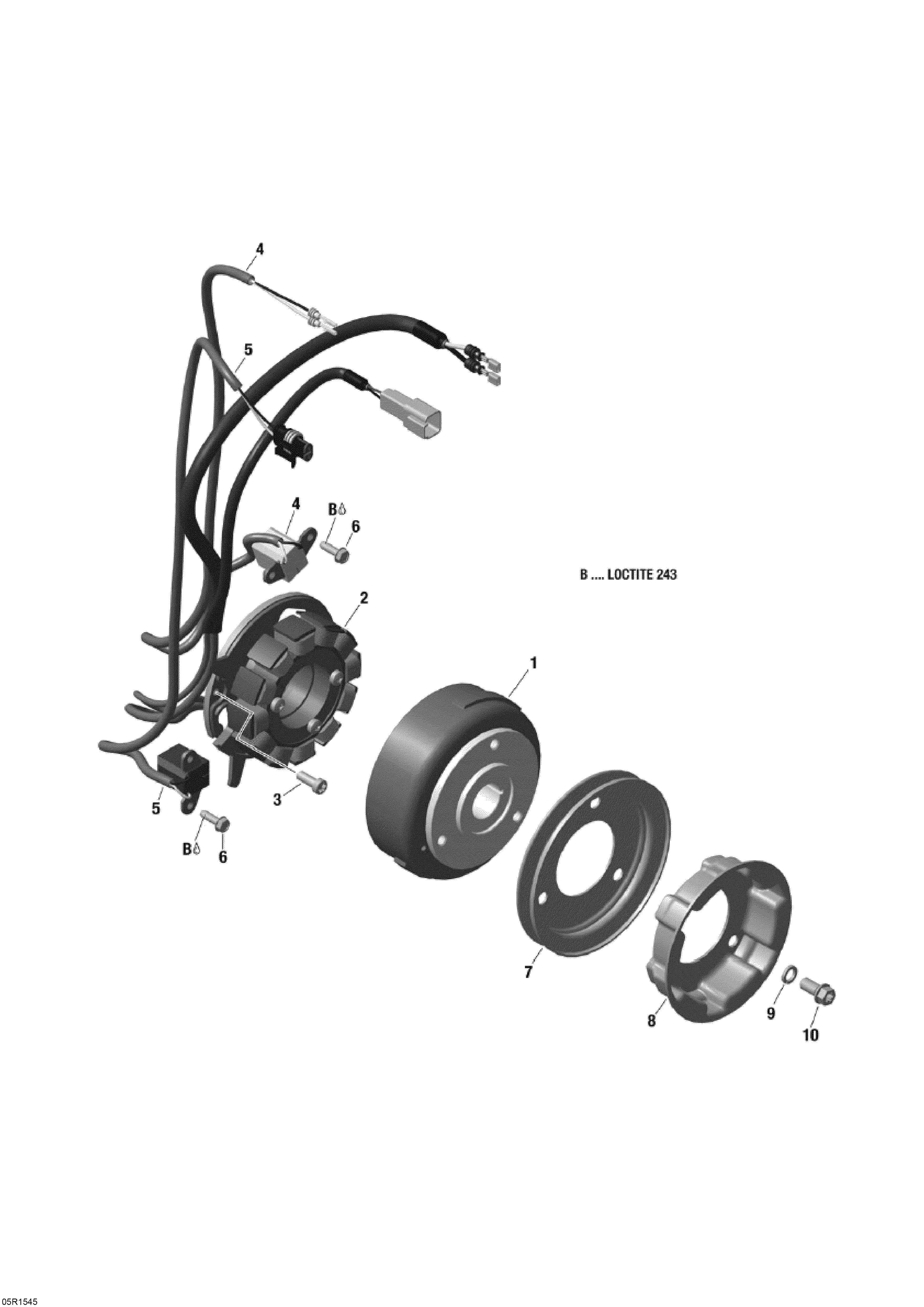

03- Magneto _05R1545 для BRP Ski-Doo Tundra WT 550 RER - 2015
-
№АртикулНазвание
-
1420889376 FlywheelFlywheel
-
2420889367 Stator PlateStator Plate
-
3420641521 ScrewScrew
-
4420665163 Pick-UpPick-Up
-
5420665161 Pick-UpPick-Up
-
6420941925 Tapping Screw M5 X 16Tapping Screw M5 X 16
-
7420980486 V-Belt PulleyV-Belt Pulley
-
8420852414 Rope SheaveRope Sheave
-
9420845311 Lock WasherLock Washer
-
10420440852 Flanged Torx Screw M8 X 16Flanged Torx Screw M8 X 16
