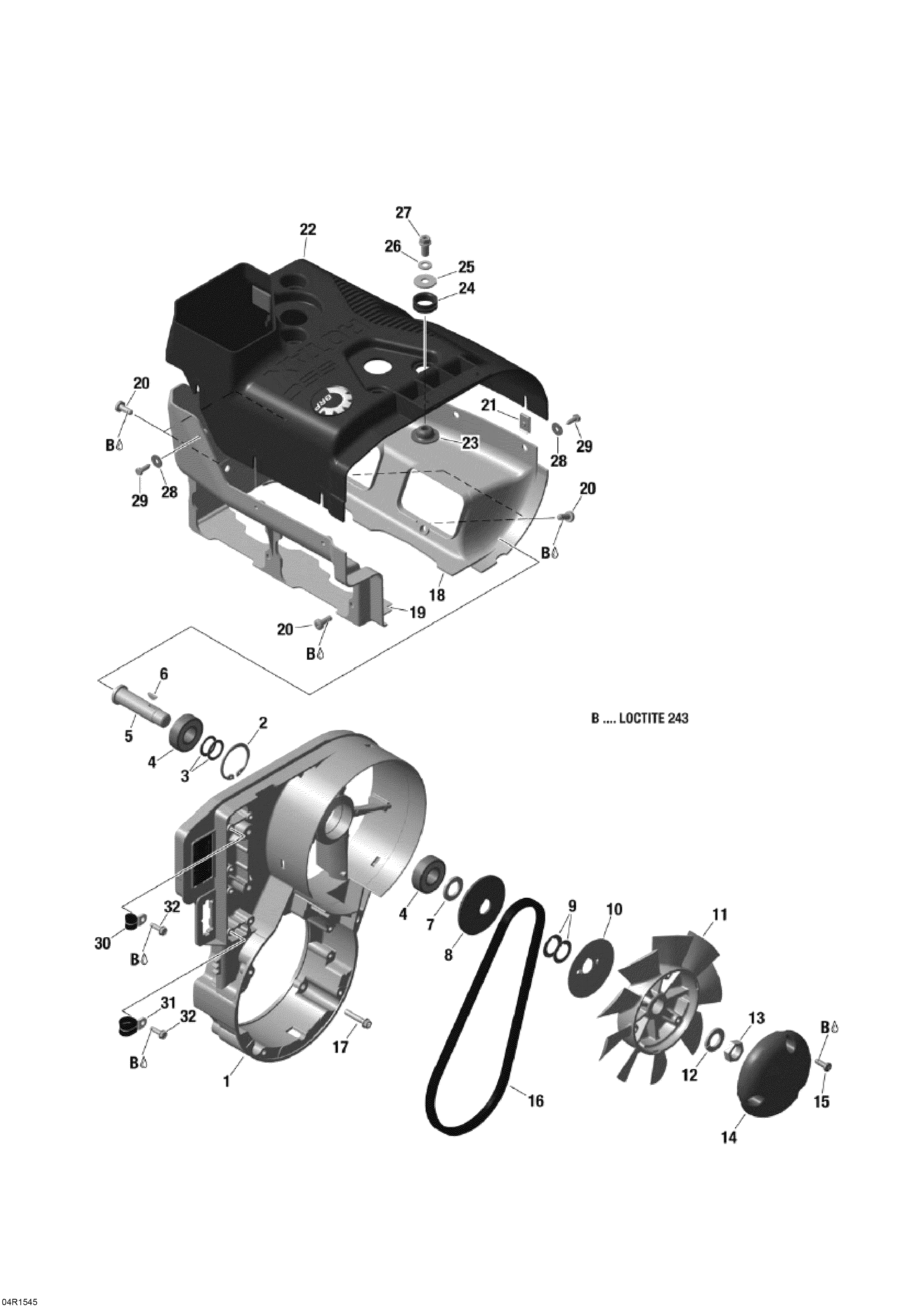

01- Fan _04R1545 для BRP Ski-Doo Tundra WT 550 RER - 2015
-
№АртикулНазвание
-
1420912230 Fan HousingFan Housing
-
2420945880 Lock RingLock Ring
-
3420244585 ShimShim
-
4420832161 Ball BearingBall Bearing
-
5420937941 Fan AxleFan Axle
-
6420246015 Woodruff KeyWoodruff Key
-
7420827650 Spacer BushingSpacer Bushing
-
8420980496 FlangeFlange
-
9420827080 Shim 0.5 mmShim 0.5 mm
-
9420827082 Shim 0.2 mmShim 0.2 mm
-
10420980523 Protection WasherProtection Washer
-
11420866294 FanFan
-
12420945756 Lock WasherLock Washer
-
13420942289 Nut M16Nut M16
-
14420975900 Fan CoverFan Cover
-
15420841971 ScrewScrew
-
16420980514 V-BeltV-Belt
-
17420440647 Flanged Torx Screw M6 X 30Flanged Torx Screw M6 X 30
-
18420811392 Lower CowlingLower Cowling
-
19420812605 Lower CowlingLower Cowling
-
20420640324 Torx Screw M6 X 16Torx Screw M6 X 16
-
21420842390 Spring NutSpring Nut
-
22420910837 Lower CowlingLower Cowling
-
23420827817 Cup WasherCup Washer
-
24420460210 Rubber BushingRubber Bushing
-
25420227935 WasherWasher
-
26420945752 Lock Washer 8 mmLock Washer 8 mm
-
27420440852 Flanged Torx Screw M8 X 16Flanged Torx Screw M8 X 16
-
28420926185 WasherWasher
-
29417300006 Tapping Screw M4.8 X 16Tapping Screw M4.8 X 16
-
30420851110 ClampClamp
-
31420851250 ClampClamp
-
32420941925 Tapping Screw M5 X 16Tapping Screw M5 X 16
