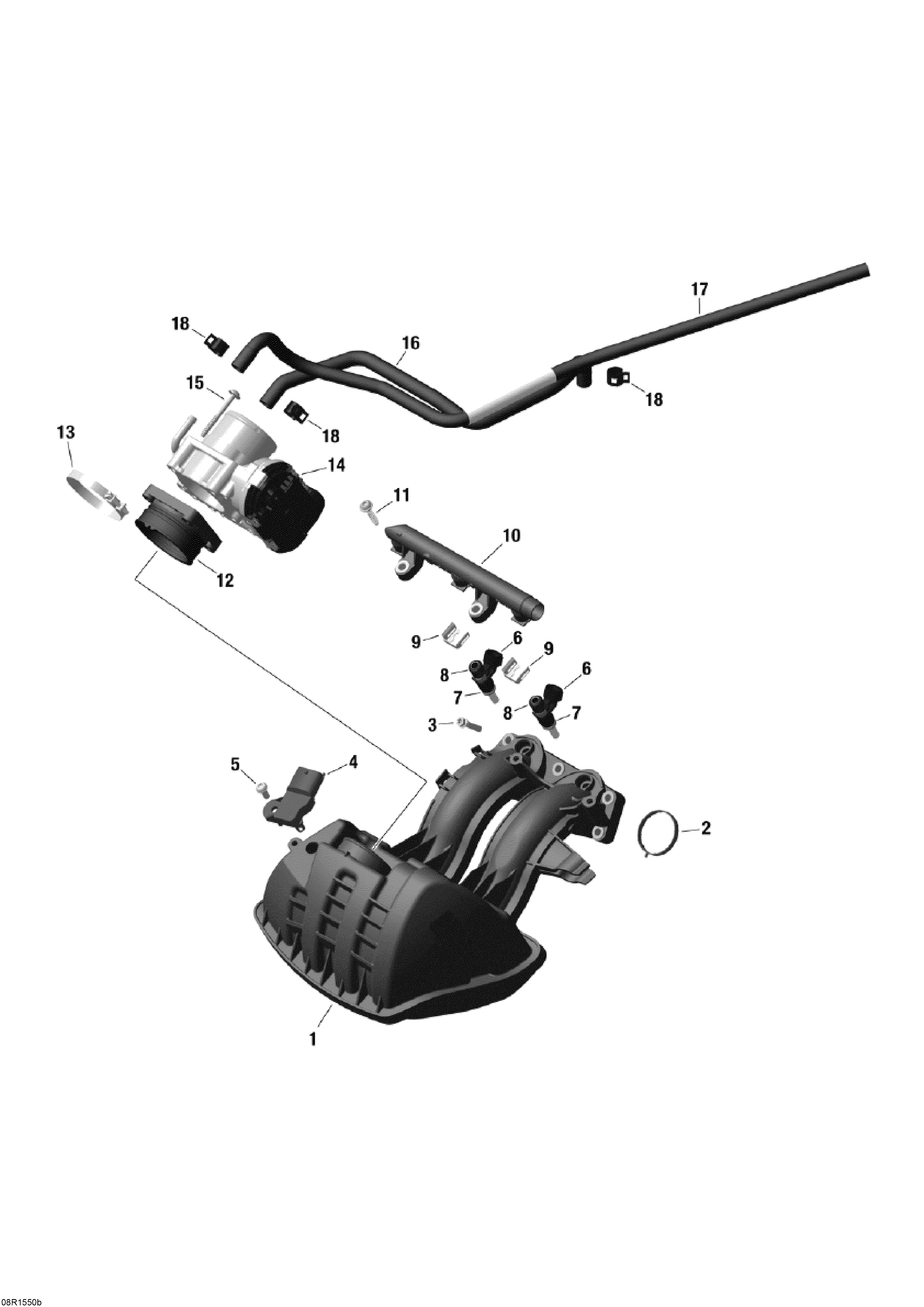

02- Air Intake Manifold (iTC) _08R1550b для BRP Ski-Doo Skandic WT 600 ACE - 2015

№

Артикул

Название
1

420867025 Air Intake Manifold Ass'y. Includes 1 To 2

Air Intake Manifold Ass'y. Includes 1 To 2

16 210 ₽
2

420431660 Gasket. Included In Gasket Kit

Gasket. Included In Gasket Kit

900 ₽
3

420440647 Flanged Torx Screw M6 X 30

Flanged Torx Screw M6 X 30

740 ₽
4

707000995 Pressure And Temperature Sensor

Pressure And Temperature Sensor

18 180 ₽
5

420641588 Flanged Torx Screw M6 X 16

Flanged Torx Screw M6 X 16

2 650 ₽
6

420874838 Injection Valve Ass'y. Includes 6 To 8

Injection Valve Ass'y. Includes 6 To 8

15 600 ₽
7

420431890 O-Ring. Included In Gasket Kit

O-Ring. Included In Gasket Kit

2 260 ₽
8

420631220 O-Ring. Included In Gasket Kit

O-Ring. Included In Gasket Kit

4 900 ₽
9

420853030 Clip

Clip

1 120 ₽
10

420874960 Fuel Rail

Fuel Rail

1 200 ₽
11

420441573 Flanged Torx Screw M6 X 30

Flanged Torx Screw M6 X 30

310 ₽
12

420867110 Intake Neck

Intake Neck

12 740 ₽
13

420251830 Hose Clamp

Hose Clamp

4 900 ₽
14

420893148 Throttle Body

Throttle Body

39 330 ₽
15

420441588 Flanged Torx Screw M6 X 50

Flanged Torx Screw M6 X 50

1 540 ₽
16

420201490 Molded Hose

Molded Hose

1 630 ₽
17

420201495 Molded Hose

Molded Hose

2 180 ₽
18

420853511 Clamp

Clamp

2 440 ₽
