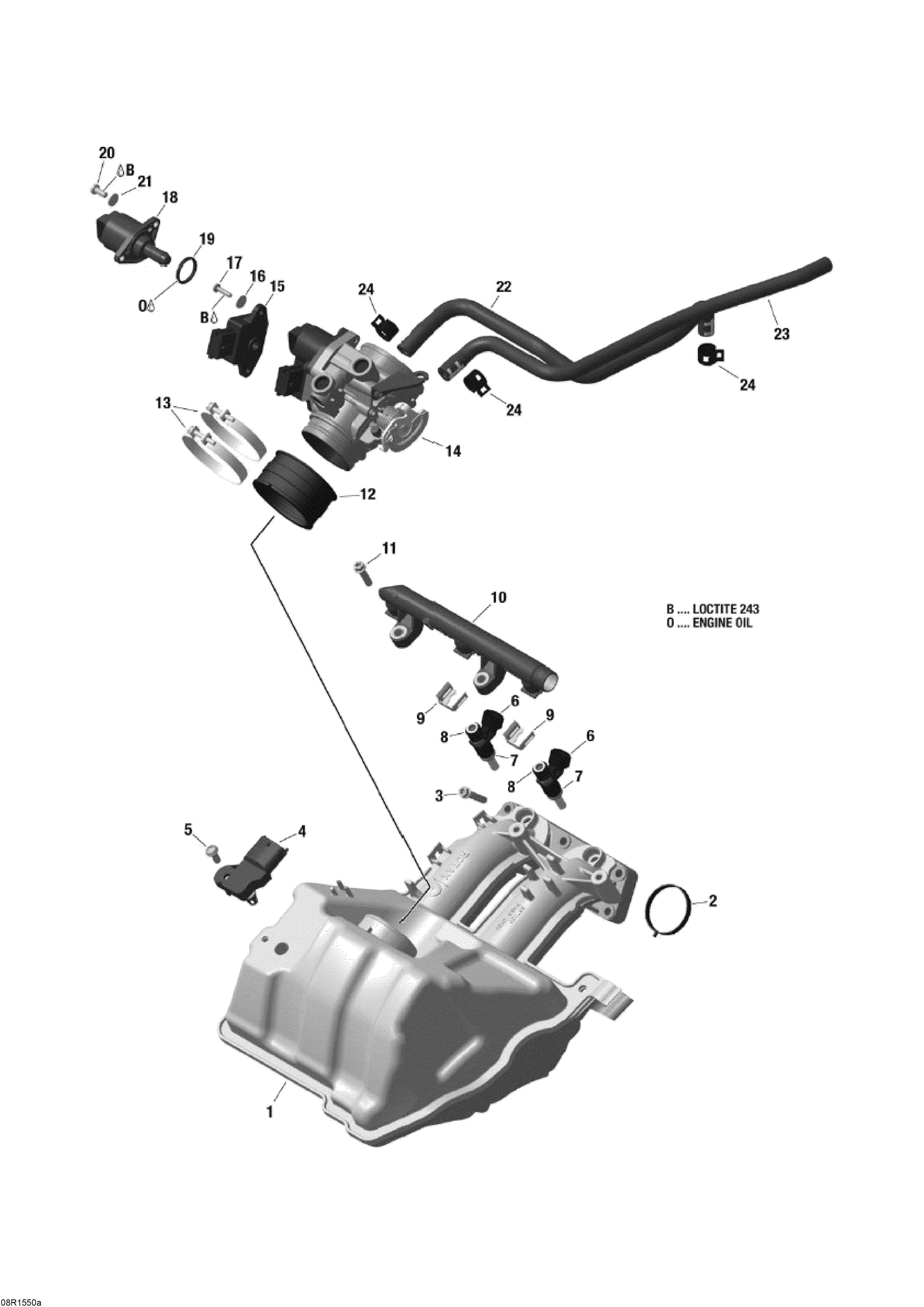

02- Air Intake Manifold _08R1550a для BRP Ski-Doo Skandic WT 600 ACE - 2015

  • №
    Артикул
    Название
  • 1
    420867020 Air Intake Manifold Ass'y. Includes 1 To 2
    Air Intake Manifold Ass'y. Includes 1 To 2
  • 2
    420431660 Gasket. Included In Gasket Kit
    Gasket. Included In Gasket Kit
  • 3
    420440647 Flanged Torx Screw M6 X 30
    Flanged Torx Screw M6 X 30
  • 4
    707000995 Pressure And Temperature Sensor
    Pressure And Temperature Sensor
  • 5
    420641588 Flanged Torx Screw M6 X 16
    Flanged Torx Screw M6 X 16
  • 6
    420874838 Injection Valve Ass'y. Includes 6 To 8
    Injection Valve Ass'y. Includes 6 To 8
  • 7
    420431890 O-Ring. Included In Gasket Kit
    O-Ring. Included In Gasket Kit
  • 8
    420631220 O-Ring. Included In Gasket Kit
    O-Ring. Included In Gasket Kit
  • 9
    420853030 Clip
    Clip
  • 10
    420874960 Fuel Rail
    Fuel Rail
  • 11
    420440234 Flanged Torx Screw M6 X 25
    Flanged Torx Screw M6 X 25
  • 12
    420460495 Intake Adaptor
    Intake Adaptor
  • 13
    420251480 Clamp
    Clamp
  • 14
    420296879 Throttle Body Ass'y. Includes 14 To 21
    Throttle Body Ass'y. Includes 14 To 21
  • 18
    420665940 Idle Bypass Valve
    Idle Bypass Valve
  • 19
    420631780 O-Ring. Included In Gasket Kit
    O-Ring. Included In Gasket Kit
  • 20
    420440911 Binding Head Screw M5 X 16
    Binding Head Screw M5 X 16
  • 21
    420845710 Snap Ring
    Snap Ring
  • 22
    420460910 Molded Hose
    Molded Hose
  • 23
    420460915 Molded Hose
    Molded Hose
  • 24
    420853511 Clamp
    Clamp
