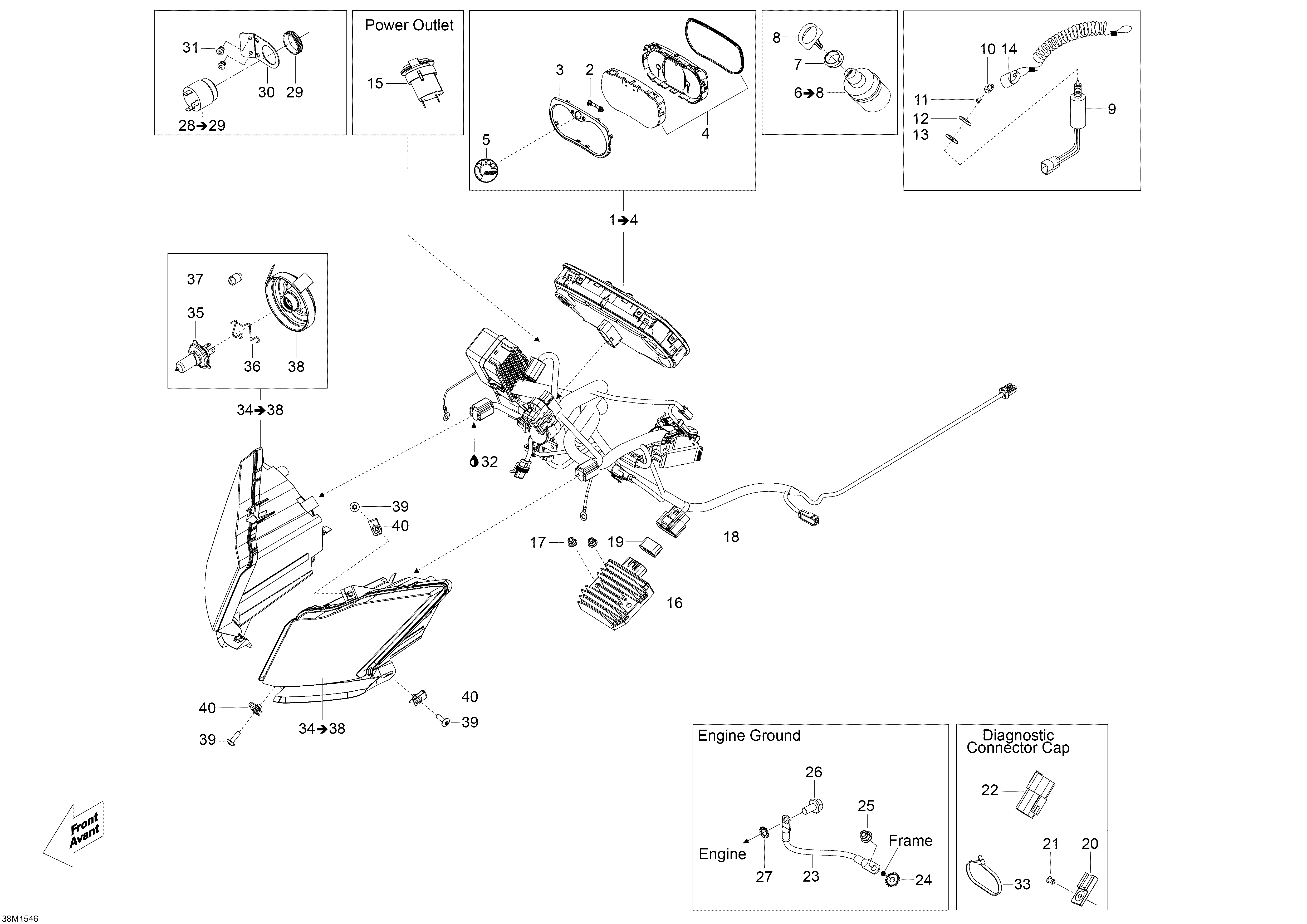

10- Electrical System _38M1546 для BRP Ski-Doo Skandic WT 550 - 2015
-
№АртикулНазвание
-
1515177519 Speedometer Ass'y. Includes 1 To 4Speedometer Ass'y. Includes 1 To 4
-
5219902677 Logo BRP, 20 mmLogo BRP, 20 mm
-
6515177063 Ignition Swirch. Includes 6 To 8Ignition Swirch. Includes 6 To 8
-
9515175653 Brake SwitchBrake Switch
-
10515145900 Switch NutSwitch Nut
-
11570151100 Plunger CapPlunger Cap
-
12250200084 Flat WasherFlat Washer
-
13732610010 RH Hex. Jam Nut M10RH Hex. Jam Nut M10
-
14515176463 Cap Ass'yCap Ass'y
-
15710001248 Outlet DCOutlet DC
-
16515176699 Voltage RegulatorVoltage Regulator
-
17233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
18515177505 Main HarnessMain Harness
-
19515176681 LockLock
-
20270000141 ClipClip
-
21390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
22515176234 Female Terminal Housing, 6 CircuitsFemale Terminal Housing, 6 Circuits
-
23515176745 Ground WireGround Wire
-
24250200041 Lock Washer Serrated M6Lock Washer Serrated M6
-
25233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
26207581646 Hex. Flanged Screw M8 X 16, Scotch GripHex. Flanged Screw M8 X 16, Scotch Grip
-
27234481608 Serrated Lock Washer 8 mmSerrated Lock Washer 8 mm
-
28414792102 Back-Up Alarm. Includes 28 To 29Back-Up Alarm. Includes 28 To 29
-
29414805101 Plastic NutPlastic Nut
-
30515176822 Reverse Buzz HolderReverse Buzz Holder
-
31250000725 Screw M4 X 16Screw M4 X 16
-
33293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
33293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
33414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
33293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
34517304194 RH Headlamp Ass'y. Includes 34 To 38RH Headlamp Ass'y. Includes 34 To 38
-
34517304195 LH Headlamp Ass'y. Includes 34 To 38LH Headlamp Ass'y. Includes 34 To 38
-
35515176274 Halogen Bulb, 60/55 W, 12 VHalogen Bulb, 60/55 W, 12 V
-
37515176498 CapCap
-
38515176499 CoverCover
-
39250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
40250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
