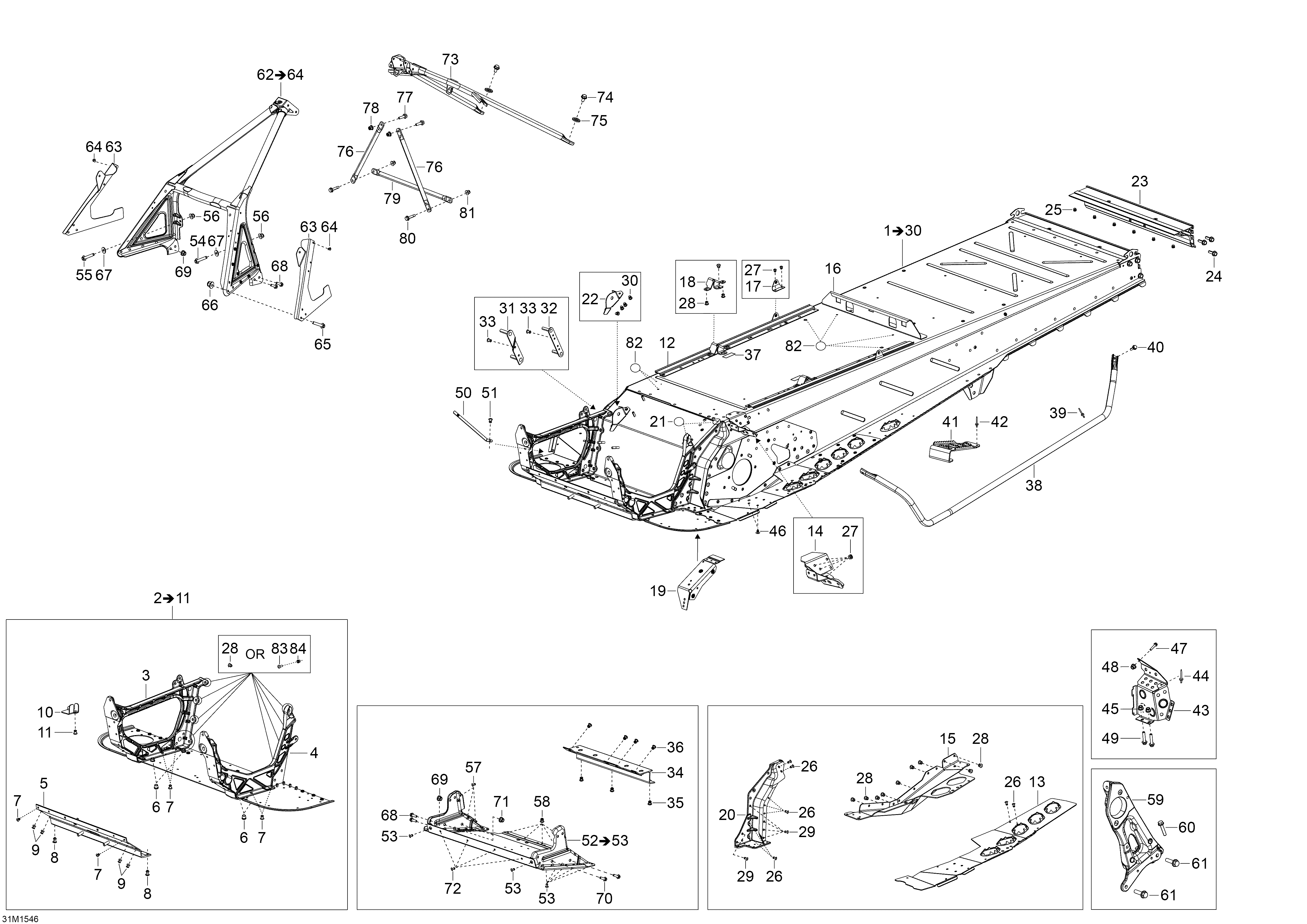

09- Frame _31M1546 для BRP Ski-Doo Skandic WT 550 - 2015
-
№АртикулНазвание
-
1518328206 Frame. Includes 1 To 30Frame. Includes 1 To 30
-
2518328189 Module E. Includes 2 To 11Module E. Includes 2 To 11
-
3518326795 RH MemberRH Member
-
4518325558 LH MemberLH Member
-
5518325818 Front MemberFront Member
-
6605636002 Clinch Nut Hexsert M8Clinch Nut Hexsert M8
-
7390909100 Avex RivetAvex Rivet
-
8293150120 Hemlock Rivet 6.5 mmHemlock Rivet 6.5 mm
-
9293150119 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
-
10518328433 Muffler SupportMuffler Support
-
11293150163 Rivet Hucklok 4,8 mm HKLP-R6-5GATRivet Hucklok 4,8 mm HKLP-R6-5GAT
-
12518326107 Fastening railFastening rail
-
13518326895 Footrest LHFootrest LH
-
13518326896 Footrest RHFootrest RH
-
14605355235 Fastening BracketFastening Bracket
-
16518325986 Battery support plateBattery support plate
-
17518327457 Seat Box BracketSeat Box Bracket
-
18518326109 Support Tube Bracket LHSupport Tube Bracket LH
-
18518326110 Support Tube Bracket RHSupport Tube Bracket RH
-
19518326430 Clinch nut plateClinch nut plate
-
20518325524 Frame Corner LHFrame Corner LH
-
20518328024 Frame Corner RHFrame Corner RH
-
21518325560 Adhesive PatchAdhesive Patch
-
22518326520 Rh.SupportRh.Support
-
23518327194 Rear ProfileRear Profile
-
24207582586 Hex. Flanged Screw M8 X 25, Scotch GripHex. Flanged Screw M8 X 25, Scotch Grip
-
25293150174 Hemlock Rivet, 6.4 mmHemlock Rivet, 6.4 mm
-
26390909100 Avex RivetAvex Rivet
-
27390909200 Avex RivetAvex Rivet
-
28293150119 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
-
29293150183 RivetRivet
-
30293150096 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
-
31518326123 Gearbox Front PlateGearbox Front Plate
-
32518326124 Gearbox Rear PlateGearbox Rear Plate
-
33390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
34518326719 Engine SupportEngine Support
-
35293150163 Rivet Hucklok 4,8 mm HKLP-R6-5GATRivet Hucklok 4,8 mm HKLP-R6-5GAT
-
36390909200 Avex RivetAvex Rivet
-
37518326357 Rubber CoverRubber Cover
-
38518326963 Footboard Support Tube, LHFootboard Support Tube, LH
-
38518326964 Footboard Support Tube, RHFootboard Support Tube, RH
-
39390909100 Avex RivetAvex Rivet
-
40207662056 Screw Hex. Flange M6 x 20Screw Hex. Flange M6 x 20
-
41520000492 FootrestFootrest
-
42390909100 Avex RivetAvex Rivet
-
43518326671 Toe Hook LHToe Hook LH
-
43518326672 Toe Hook RHToe Hook RH
-
44390909200 Avex RivetAvex Rivet
-
45605636003 Clinch Nut M6 HexsertClinch Nut M6 Hexsert
-
46414644300 DartDart
-
47207662056 Screw Hex. Flange M6 x 20Screw Hex. Flange M6 x 20
-
48233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
49250000223 Torx Screw M6 X 16Torx Screw M6 X 16
-
50514054846 Spring BracketSpring Bracket
-
51390909200 Avex RivetAvex Rivet
-
52518326213 S Module. Includes 52 To 53S Module. Includes 52 To 53
-
53390909200 Avex RivetAvex Rivet
-
54207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
55207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
56233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
57390909100 Avex RivetAvex Rivet
-
58390909200 Avex RivetAvex Rivet
-
59518328434 Pulley SupportPulley Support
-
60207582586 Hex. Flanged Screw M8 X 25, Scotch GripHex. Flanged Screw M8 X 25, Scotch Grip
-
61207583086 Flanged Hex. Screw M8 X 30, Scotch GripFlanged Hex. Screw M8 X 30, Scotch Grip
-
62518327004 Front Member Assy. Includes 62 To 64Front Member Assy. Includes 62 To 64
-
63502007077 Bumper Fastener LHBumper Fastener LH
-
63502007078 Bumper Fastener RHBumper Fastener RH
-
64390909200 Avex RivetAvex Rivet
-
65207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
66233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
67224061201 Flat WasherFlat Washer
-
68207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
69233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
70207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
71233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
72390909200 Avex RivetAvex Rivet
-
73518326103 Upper Support Tube WeldedUpper Support Tube Welded
-
74207662056 Screw Hex. Flange M6 x 20Screw Hex. Flange M6 x 20
-
76518325114 Upper Column SupportUpper Column Support
-
77207662056 Screw Hex. Flange M6 x 20Screw Hex. Flange M6 x 20
-
78233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
79518325115 Center Column SupportCenter Column Support
-
80207662556 Hex. Flange Screw M6 X 25Hex. Flange Screw M6 X 25
-
81233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
82518325560 Adhesive PatchAdhesive Patch
-
83207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
84233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
